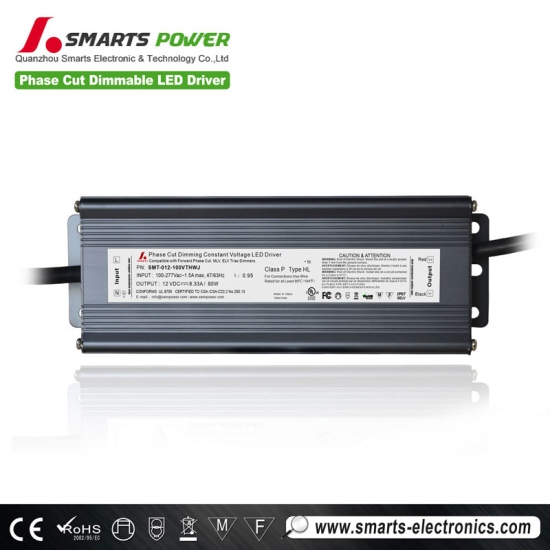

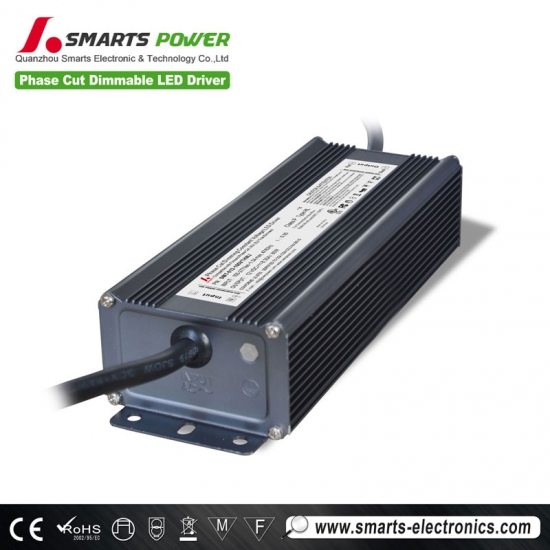

phase cut dimming MLV ELV led power supply 12v 100w for led lights

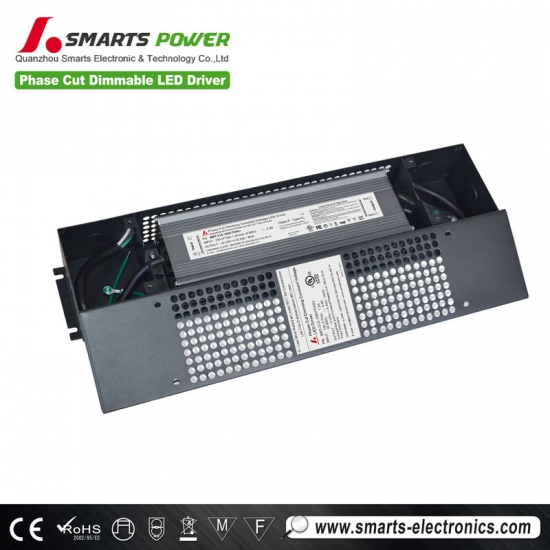

This Dimmable led power supply 12v 100w features an integrated wiring compartment, allowing one to make clean connections inside of the power-supply with no need for external junction boxes. With UL listed are suitable for powering a wide range of BL INNOVATIVE LIGHTING 80w LED strip and linear lighting products.
Product parameters
model
SMT-012-100VTHWJ
SMT-024-096VTHWJ
Output
DC Voltage
12V
24V
Rated current
8.33A
4.0A
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
Rated power
100W
96W
Input
Voltage Range
100~277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.99@120VAC 0.96@277VAC
0.98@120VAC 0.96@277VAC
Full Load Efficiency(Typ.)
>80%
>83%
AC Current（Typ.）
1.5A/110VAC
Inrush Current （Typ.）
20A, 50%, 1.6ms
Leakage current
﹤0.5mA/110V
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over temperature
≤120% constant current limiting, auto-recovery
Over Loading
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Net Weight
1.1Kg
Size
230*70*46mm（L*W*H）
packing
Packing : 10PCS/ctn
Carton: 385*335*200mm
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

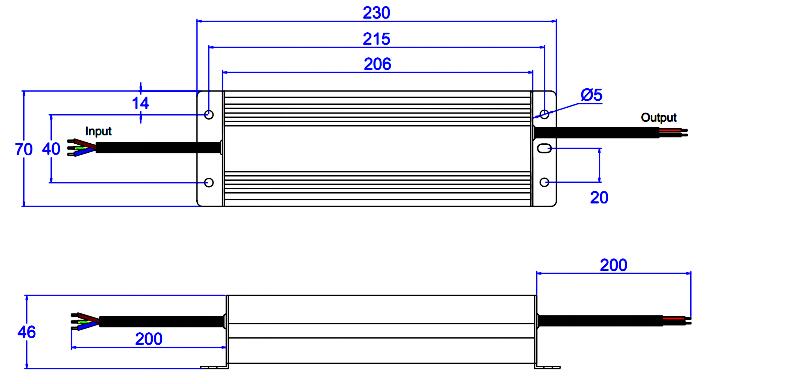

Mechanical Specification
Input terminals "Black" and "White" to connect to AC L and N.
Output terminals "Red" to LED Positive side (+) , "Black" to LED Negative side (-).
Compatible Dimmer Type

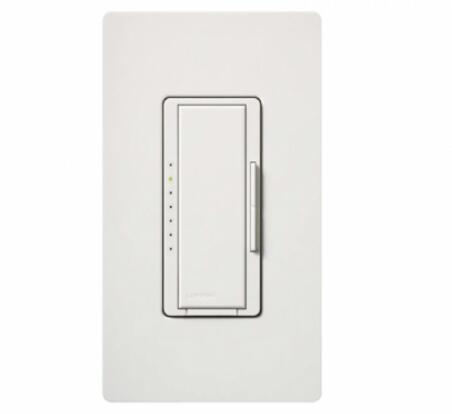

Lutron Maestro wireless dimmers offer a full range of designer light controls, fan controls, and timers that allow you to adjust your lights and fans from anywhere in the room and even outside your home
Multi-location dimming compatible with led power supply 12v 100w.
