Features |
|
|
|
Model |

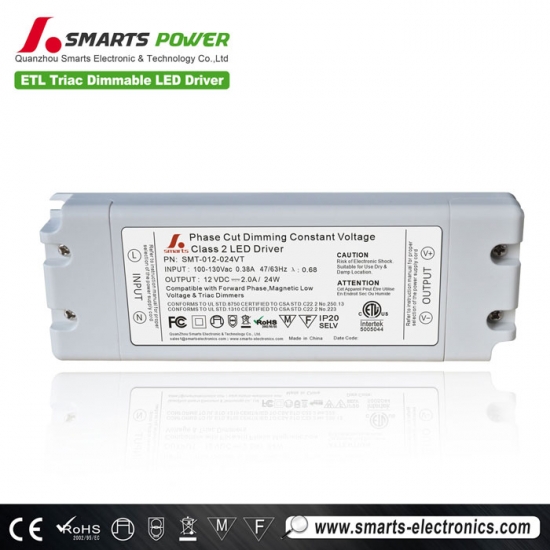

SMT-012-024VT |
SMT-024-024VT |
|
|
output |
DC Voltage |
12V |
24V |
|
Voltage Tolerance |
±0.5V |
||
|
Rated current |
2.08A |
1.04A |
|
|
Rated power |
24W |
||
|
input |
Voltage Range |
90~135VAC / 170~265VAC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor (Typ.) |
PF≥0.75 |
||
|
Efficiency(Typ.) |
>83% |
>84% |
|
|
AC Current(Typ.) |
0.32A@120VAC, 0.16A@220VAC |
0.33A@120VAC, 0.13A@220VAC |
|
|
Leakage current |
<0.70mA/110VAC / <0.5mA/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
|
|
Over Current |
≤1.2*I out |
||
|
Over Loading |
≤120% |
||
|
Over temperature |
100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery) automatic |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH, non-condensing |
||
|
Storage TEMP. Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP .coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety& EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1500KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
others |
Net. Weight |
0.20Kg |
|
|
Size |
155*54*20mm(L*W*H) |
||
|
packing |
350*195*180mm 30PCS/CTN |
||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 110VAC / 220VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3. Loading should be 5-100%. |
||

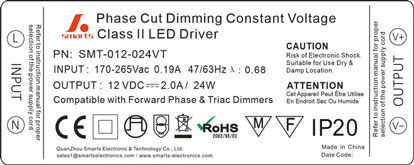

| Label |
|
||
 |
 |
 |
 |

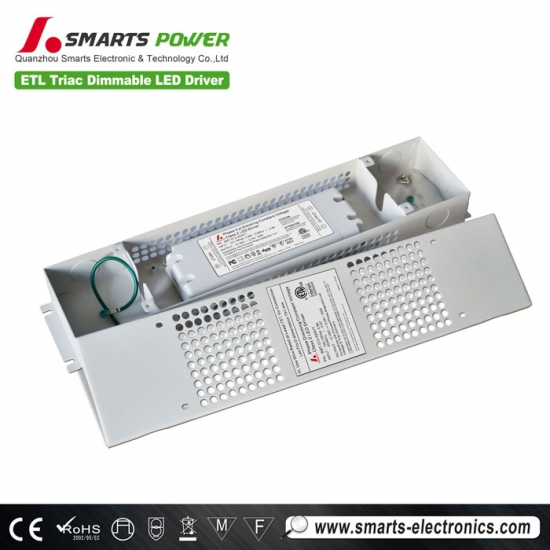

Mechanical Specification
- Input (L) and (N) with wires to be connected AC.
- Output LED SEC :(LED+) (LED-)
Dimming Operation
- The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Usually matching with leading edge Triac Dimmers( Can customized as a driver only matching trailing edge Triac Dimmers if needed).
- Please try to use dimmers with power at least 2.5 times as the output power of the driver.
- for Forward phase,Magnetic low voltage and Triac Dimmers
Warning
- Prevent to reverse polarity;
- Risk of Electric Shock. When used outdoors, install only on a circuit protected by a Class A GFCI;
- Risk of Fire. Installation involves special wiring methods to run wiring through a building structure. Consult a qualified electrician;
- Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface.
Derating Curve
- To extend their life, please refer to the Derating Curve and derate according to the temperature
Connecting Diagram
Our led drivers are widely used for
Vehicle Lights, Controller Panels
