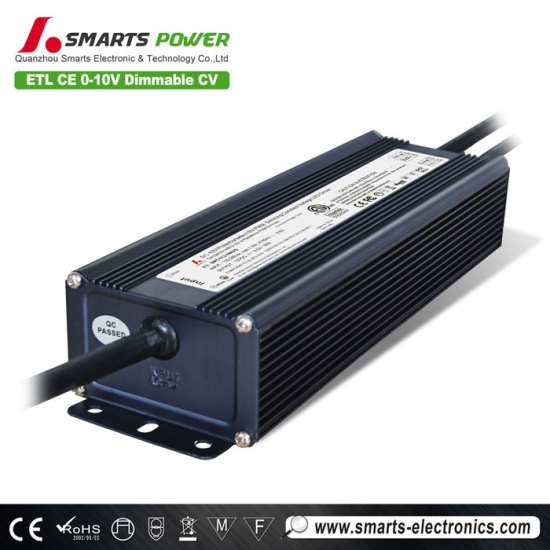

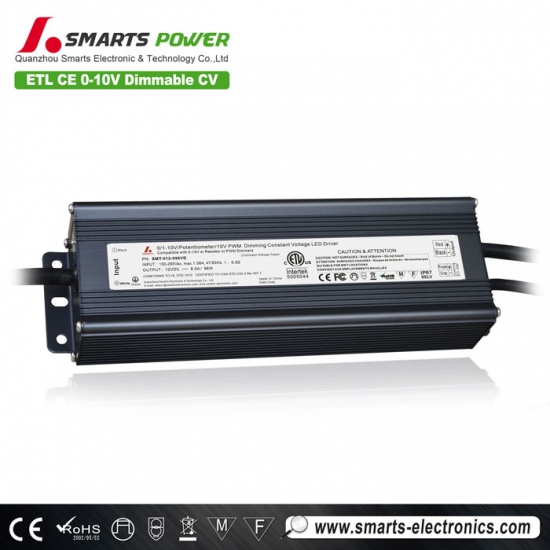

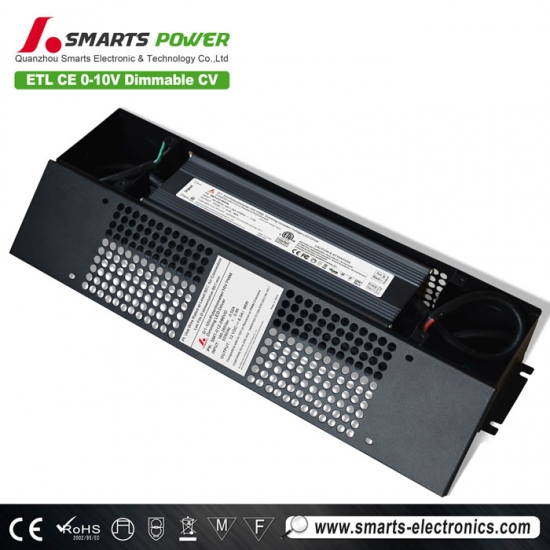

Non-dimmable LED Driver

ETL FCC CE 100w 12v dimmalbe constant voltage dimmable led driver

0/1-10V Potentiometer/10V PWM(3 in 1) dimmable Constant voltage 100w 12v ac-dc constant voltage led driver (IP67)
  • item no.:

    SMT-012-096VD
  • lead time:

    about 7 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • Input Voltage:

    100~130VAC, 170~265VAC
  • Output Voltage:

    12VDC
  • Output Current:

    8A
  • Working Mode:

    Constant Voltage
  • Certification:

    CE ROHS
  • Warranty:

    3 years warranty
inquiry now
product details

ETL FCC CE 100w 12v dimmalbe constant voltage dimmable led driver


SMT-012-096VD is the 0/1-10V Potentiometer/10V PWM(3 in 1) dimmable 100w 12v ac-dc constant voltage led driver (IP67) which has 3 years warranty and ETL/FCC/CE listed.



 Specification


Model

SMT-012-096VD

SMT-024-096VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

0-8.0A

0-4.0A

Rated power

96W

96W

Ripple&noise Max.

200mVp-p

350mVp-p

350mVp-p

250mVp-p

400mVp-p

Input

Voltage Range

100130VAC, 170~265VAC

Frequency Range

4763HZ

Power Factor ( Typ.

>0.90

>0.90

Full Load EfficiencyTyp.

>88%

86%

87%

>88%

88%

AC CurrentTyp.

1.010A/120VAC 0.713A/170VAC  0.550A/220VAC  0.457A/265VAC

Leakage current

0.25mA/110V,220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

≦280VAC

Over temperature

100℃±10℃  shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+60℃

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-2-13.IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry

level surge4KV

Others

Weight

1.32Kg

Size

230*70*47mmL*W*H

packing

329*279*176mm/10pcs

Notes

1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and

   25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

  label   12v ac-dc constant voltage led driver
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



 Feature of 100w dimmable  led driver


  • Output constant voltage
  • range :100~265VAC
  • Built-in PFC function
  • Efficiency >88% /  PF>0.9
  • Protections:short circuit/over current/over voltage/over temperature
  • Cooling by free air convection
  • P67 design for indoor or outdoor installations .
  • Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry/damp/wet locations
  • 3  years warranty


 Others


  • Weight:1.32Kg
  • Size:240*66*53mm(L*W*H)
  • packing:329*279*176mm/10pcs


100W pwm dimmable led driver Mechanical Specification


 dimmable led driver

  • Input 18AWG*3C,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)
  • Signal 18AWG*2C,Red is(DIM+),Black is(DIM-)
  • Output 18AWG*2C,Blown is output(V+),Blue is output(V-)
  • Note: Any other requests we can customized.


 Dimming Operation of 100w 12v led driver :


  • Built-in 3 in 1 dimming function, I67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-
  • Reference resistance value for output current adjustment (Typical)



 Derating Curve


  dimmable led driver

  • Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
