Non-dimmable LED Driver

ETL CE listed Triac dimmable dc power supply 200w

Note that 24v 200w Triac dimmable LED Driver does not require a minimal load in order to offer you optimal dimming performances. This Dimmable LED Driver comes complete with distinct junction boxes for both the high and low voltage load.
  • item no.:

    SMT-024-200VT
  • lead time:

    about 7 working days for sample order
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen port
  • payment:

    T/T Paypal Western Union
  • Input Voltage:

    100-130 / 170-265vac
  • Output Voltage:

    12v 24v
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL CE Rohs
  • Warranty:

    3 Years
inquiry now download
product details

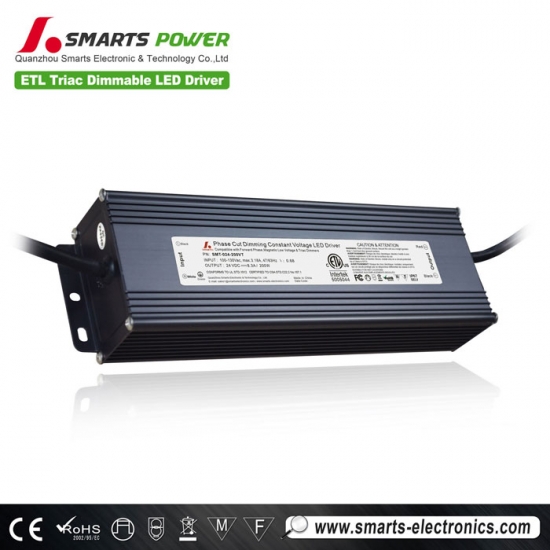

ETL CE listed Triac dimmable dc power supply 200w



ETL (UL), CE, FCC, RoHS 12V, 200W dimmable led driver suitable for Leading Edge or Trailing Edge TRIAC & Magnetic dimmers.  Furthermore, the Dimmable LED Driver includes two integrated mounting brackets, making it easy to securely screw it in place. This model has relative Junction Box attached. The Constant Voltage Triac Dimmable LED Driver Smarts Electronics offered is designed to work with any recent standard wall dimmer (Triac or Low voltage Magnetic) and allows you to smoothly dim your LED Strips from 100% to 20% without any noise or flickering. Note that this revolutionary LED Driver does not require a minimal load in order to offer you optimal dimming performances.




 Specifications of dimmable power supply


  • 200W 12V, IP67 Waterproof, Dimmable from 120V TRIAC / Magnetic dimmer
  • Size: 8.92” L x 3.05” W x 1.85” H, (226.5 x 77.5 x 47mm)
  • Input Voltage range 100~130V AC, 47-63Hz, PF > 0.7
  • Dimmable DC Output: 12V, 200W, Suitable for Leading Edge or Trailing Edge TRIAC & Magnetic dimmers
  • Protection: Short-Circuit / Over Current / Over Temperature and Auto-recovery Mode
  • IP67 Waterproof for Indoor or outdoor operation, Cooling by free air convection -20C to +45C, full load, max case 60C, 20 to 95% RH NC
  • Input Wire Connection: ( N, L, Earth), Output Wire connection: +V, GND
  • Approvals: ETL, CE, FCC, RoHS

Model

SMT-012-200VT

SMT-024-200VT

SMT-036-200VT

SMT-048-200VT

Output

DC Voltage

12V

24V

36V

48V

Voltage Tolerance

±0.5V

Rated current

16.67A

8.33A

5.56A

4.16A

Rated power

200W

Input

Voltage Range

170265VAC / 100~130VAC

Frequency Range

4763HZ

Power Factor ( Typ.

> 0.77/110VAC,  >0.8/220VAC

Full Load

EfficiencyTyp.

>85%

>85%

>85%

>85%

AC CurrentTyp.

1.78A

1.76A

1.76A

.A

1.74A

Leakage current

0.70mA/110VAC,  <0.65mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over load

≤120%

Over Current

≤1.4*I out

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz 2G 10min./1 cycleperiod for 60min.each along X,

Y,Z axes







Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11Surge 4KV

Others

Weight

1.8Kg

Size

256*78*47mmL*W*H

packaging

440*295*145mm / 8 pieces in one carton

Notes

1. All parameters NOT specially mentioned are measured at 110V & 220VAC input , rated

  load and 25℃of ambient temperature.

2..Tolerance:includes set us tolerance,line regulation and load regulation.

  Label

200W dimmable led driverConstant Voltage Triac Dimmable LED DriverTriac dimmable dc power supply

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



 Dimming Operation of 24v power supply


  • Output power level can be adjusted through input terminal of the AC phase line(L) by connecting a triac dimmer.
  • Compatible with Leading edge or tailing edge triac dimmers.
  • please try to use the small power dimmer in order to access to a wider dimming range because high-power dimmer is difficult to achieve the output current to zero


 Mechanical Specification of dc power supply


 dimmable power supply

  • Input Brown with AC (L),Blue with AC (N)
  • Output Red is(DIM+),Black is(DIM-)
  • Note: Any other requests we can customized.


 Derating Curve of dc power supply


 led dimmable driver suppliers



To extend their life, please refer to the Derating Curve and derate according to the temperature.




 About Smarts Electronics  Triac dimmable dc power supply


We know how important it is for you to get what you ordered and get it fast. Our products are 100% authentic and brand new. It is very important to us that we put our customers first and you will see this reflected in every transaction with us. We consider it a top priority that our customers are happy and in the rare event that they are not, we do everything we can to fix the situation. If there's a problem, just let us know and we fix it. We guarantee you only the best experience when shopping with us!


 Trade Term of Smarts Electronics’ LED Power Supply


1. T/T West Union, 30% deposit after order confirmed, the balance before shipment.

2. Lead time: normally in 7-12 workdays after deposit received.

3. Shipping port: Xiamen, China.

4. Discounts: We offer discount for big quantity.
