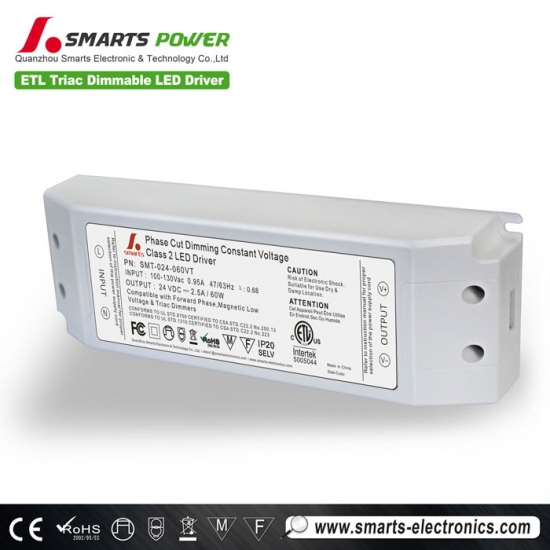

etl 24v output constant voltage triac dimmable led driver
Not limitation Triac Dimmable LED Driver.Compatible with Forward phase, Triac,MLV Dimmers or Reverse phase,Triac,dimmer.LUTRON,CLIPSALI,DYNALITE,LEVITON,VARILIGHT,BTICINO.PHILIPS,CRESTRON,RAKO,JUNG,V-PRO,BUSCH-JAEGER,BERKER,GIRA,ELKO,EPV,etc. brand of dimmer are all sitable for the type triac dimmable led driver.
Model
SMT-012-060VT
SMT-024-060VT
Certificates
ETL、CE、FCC
ETL、CE、FCC
output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Rated current
5A
2.5A
Rated power
60W
input
Voltage Range
100～130VAC / 170-265VAC
Frequency Range
47～63HZ
Power Factor （Typ.）
PF≥0.68
Efficiency（Typ.）
>84%
>84%
AC Current（Typ.）
0.95A@110VAC
0.48A@220VAC
Leakage current
﹤0.50mA @120VAC / ﹤0.65mA @220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed
Over Current
≤1.2*I out
Over Loading
≤120%
Over temperature
100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery automatic
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH, non-condensing
Storage TEMP. Humidity
-40～+80℃，10～95%RH
TEMP .coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety& EMC
Safety standards
UL1310 & UL8750
Withstand voltage
I/P-O/P:1500VAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
others
Net. Weight
0.45Kg (only the dimmable Driver)

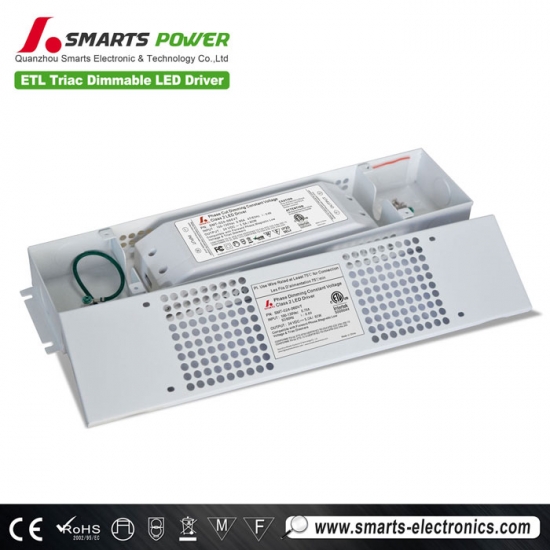

1.0Kg (Dimmable driver + junction box)
Carton Size
180*60*35mm（L*W*H）
350*77*37mm（L*W*H）
packing
350*195*180mm 20PCS/CTN
385*335*200mm 20PCS/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 110VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
3.Loading should be 5-100%.

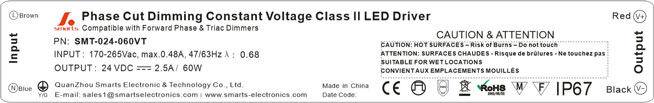

Label
24v 60w dimmable led driver passed ETL、CETL、FCC CE,Rohs certification
DC Voltage 12V/24V
Voltage Tolerance ±0.5V
Rated power 60W
--Input
Voltage Range 100～130V/170-265VAC
Frequency Range 50～60HZ
--Environment
Working TEMP. -40～+60℃
Working Humidity 20～90%RH,non-condensing
Storage TEM.,Humidity -40～+80℃，10～95%RH
TEMP.coefficient ±0.03%/℃（0～50℃）
Vibration 10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
--Safety&EMC
Safety standards EN-60950-1, EN61347-1/-2/-13
Withstand voltage I/P-O/P:3.75KVAC
Isolation resistance I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
Others
Weight About 1.0Kg
Size 210*68.5*43mm（L*W*H）
packing 324*298*176mm （L*W*H）
60W triac dimmable led driver Mechanical Specification
※Input Brown with AC (L),Blue with AC(N),Green/Yellow with AC(G)
※Output Red is（DIM+）,Black is（DIM-）
※Note: Any other requests we can customized.
Dimming Operation of constant voltage dimmable led driver
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or tailing edge triac dimmers.
※please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
