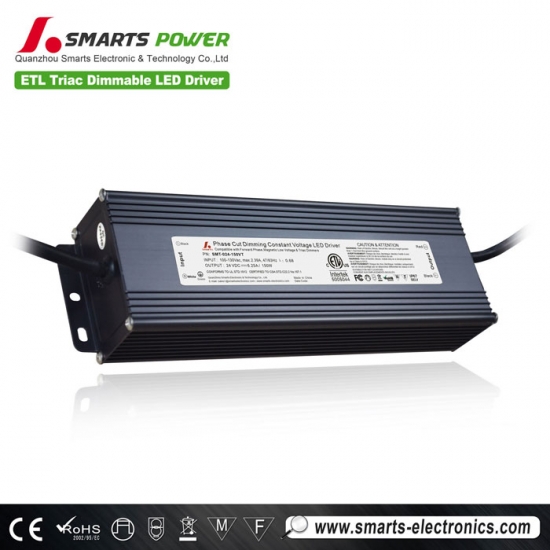

This Triac Dimming LED Driver provides the required dim level for 12V LED strip lighting systems. Simple easy wiring direct to any type of standard Leading or Trailing edge dimmer switch.This new high quality triac dimmable driver controls 12V 24V LED strip with smooth consistent dimming, free of flicker and lifespan up to 50,000 hours.
This Dimmable LED Driver comes complete with distinct junction boxes for both the high and low voltage load. Furthermore, the Dimmable LED Driver includes two integrated mounting brackets, making it easy to securely screw it in place. You will also be delighted by the safety features of the Dimmable LED Driver: aside from being cETLus certified for usage in Canada and the USA, it also features auto reset protection from short circuits, over–voltage and over-temperature, making it one of the safest LED Driver on the market.
|
Model |
SMT-012-150VT |
SMT-024-150VT |
SMT-036-150VT |
SMT--048-150VT |
|
|
Output |
DC Voltage |
12V |
24V |
36V |
48V |
|
Voltage Tolerance |
±0.5V |
||||
|
Rated current |
12.5A |
6.25A |
4.16A |
3.1A |
|
|
Rated power |
150W |
||||
|
Input |
Voltage Range |
100-135VAC / 170～265VAC |
|||
|
Frequency Range |
47～63HZ |
||||
|
Power Factor ( Typ.） |
>0.75/110VAC, >0.8/220V |
||||
|
Full Load Efficiency（Typ.） |
>85% |
>86% |
>86% |
>87% |
|
|
AC Current（Typ.） |
1.34A |
1.32A |
1.32A .A |
1.31A |
|
|
Leakage current |
﹤0.6mA/110VAC, ﹤0.70mA/220VAC |
||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|||
|
Over load |
≤120% |
||||
|
Over Current |
≤1.4*I out |
||||
|
Environment |
Working TEMP. |
-40～+60℃ |
|||
|
Working Humidity |
20～90%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||
|
Vibration |
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%load) |
||||
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11（Surge about 4KV） |
||||
|
Others |
Weight |
1.8Kg |
|||
|
Size |
256*78*47mm （L*W*H） |
||||
|
packing |
440*295*145mm , 8 pcs/ctn |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation . |
||||
| Label |
|
||||
 |
 |
 |
 |
Mechanical Specification for triac dimming led driver
Derating Curve for phase cut dimming led driver
-
Output power level can be adjusted through input terminal of the AC phase line(L) by connecting a triac
dimmer. - Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer in order to access to a wider dimming range because
- high-power dimmer is difficult to achieve the output current to zero
Trade Term of Smarts Electronics’ Triac Constant Voltage Dimming LED Driver
