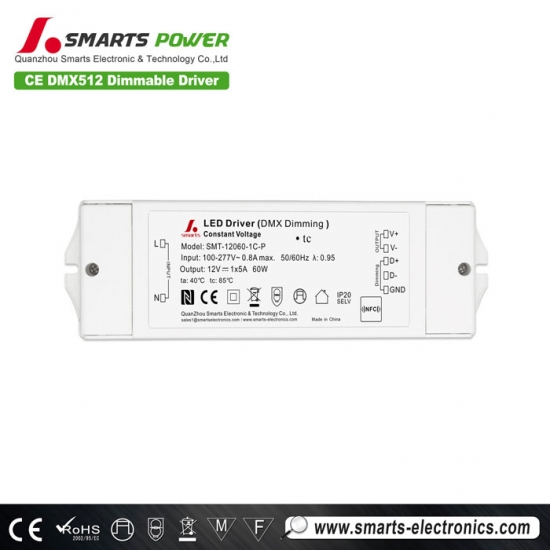

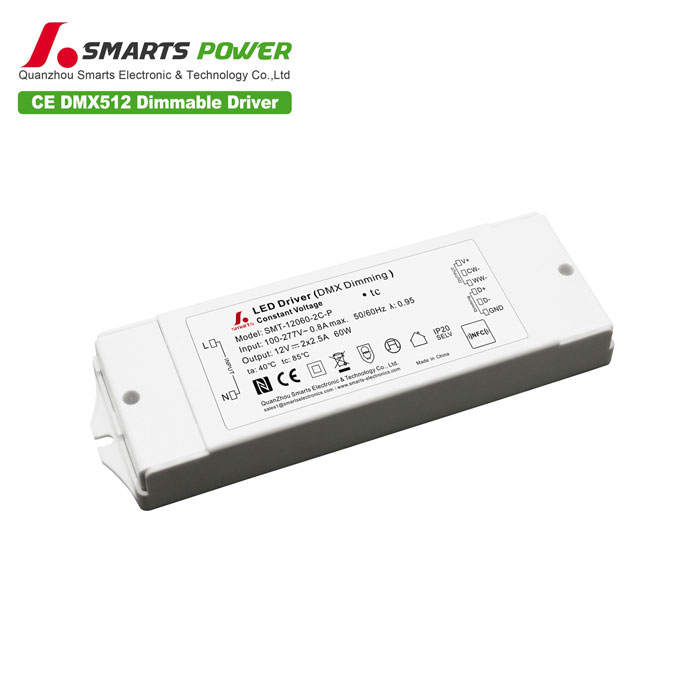

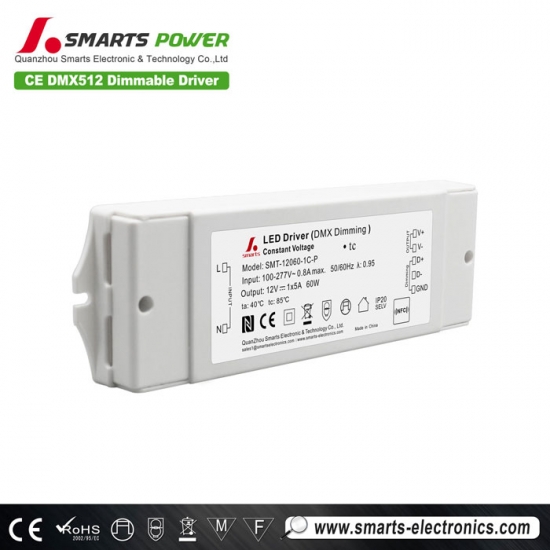

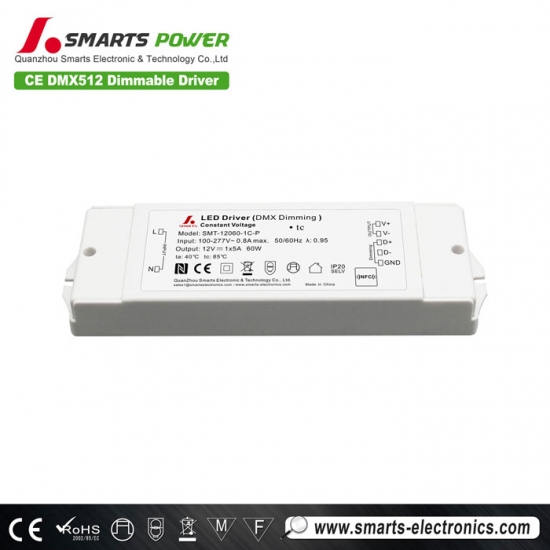

dmx dimming led driver led power supply 12v 60w

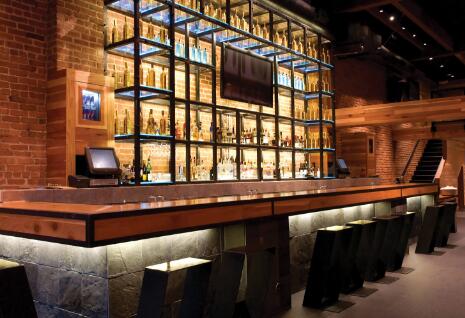

The dmx driver is mainly used in controlling LinearLED DMX colorful lights, has been primarily used in theatrical or stage lighting in the past, but is also now being used more and more in architectural and other lighting uses. It can now be found in everything from Christmas light strings to electronic billboards.
Product parameters
Model
SMT-12060-XC-P
SMT-24060-XC-P
X=1 , 2 for DIM (DW); CCT(TW)
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
CH1+CH2=5A
CH1+CH2=2.5A
Rated power
60W (class 2 power units)
Load Regulation
±2%
Input
Voltage Range
100-277VAC
Frequency Range
47 - 63Hz
Power Factor（Typ.）@ full load
PF≥0.98/ 230VAC (Full loading)
THD（Typ.）@ full load
<15% @120V 230V 277V
Efficiency（Typ.）@ full load
89% @230VAC
87%@230VAC
AC Current（Max.）
0.8A
0.8A
Inrush Current （Typ.）
36.4A,164us@50%Ipeak
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Load
≤120% ,hiccup model, recover automatically after fault condition is removed
Over temperature
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Protection Class
II
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20 - 90%RH ,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
Withstand voltage
I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.5KVAC (US)
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
EMC Immunity
EN61000-4-2,3,4,5,6,11 EN61547
Others
Net Weight
0.35KG
Dimension
192.5*62*24mm (L*W*H)
packing
290*215*140mm/20PCS/CTN G.W.:8.3KG/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and
25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Mechanical Specification

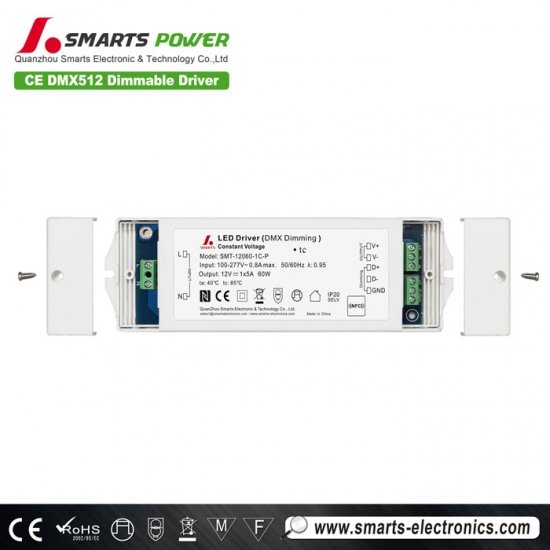

Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal
Suggested wire diameter: Primary 0.75-2mm² (18-14 AWG); Secondary 0.5-2mm² (20-14 AWG)
Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
4P for CCT (TW) dimming with two LED positive pole
Compatible RGB Tape Light Type
DAZZLE 12® 12V RGB LED Tape Light is an excellent solution for full color dynamic effects, it will provide over 16 million color options and evenly distributes the light throughout creating just the lighting effect you want with driver dmx.
