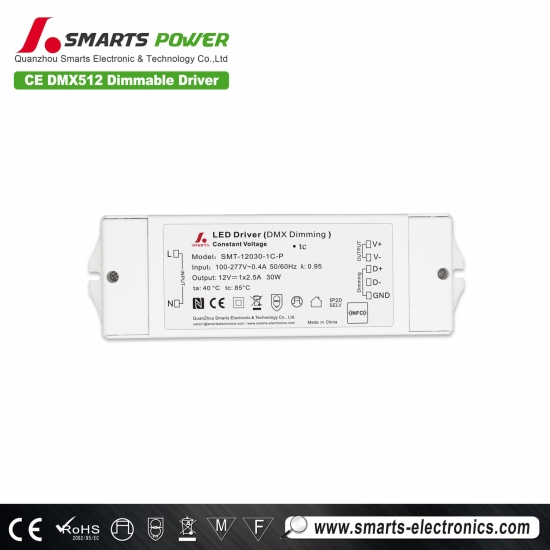

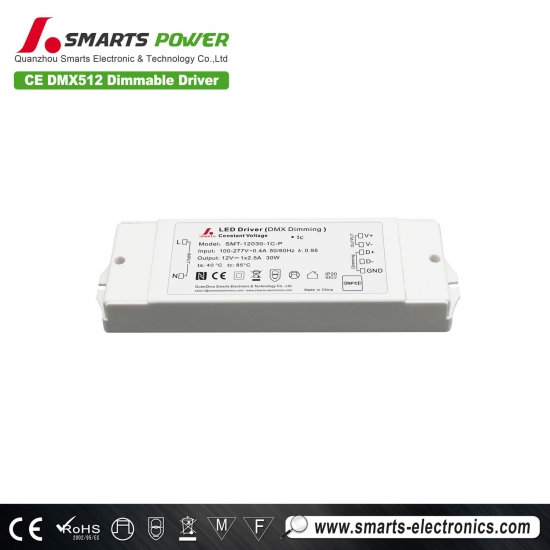

CE UL ROHS listed 12vdc 30w dmx 512 led driver for LED strip
Simple operation about DMX512 address reset and adjusting output voltage 12v led light power supply slighting by a mobile with Easy NFC APP or NFC handheld device (NFC read & write device: NFC-RW) with ELDO LED light array. |
Specification
Model |
SMT-12030-1C-P |
SMT-24030-1C-P |
|
X=1 for DIM (DW); |
|||
Output |
DC Voltage |
12V |
24V |
Voltage Tolerance |
±0.5V |
||
Voltage Regulation |
±0.5% |
||
Rated current |
CH1=2.5A |
CH1=1.25A |
|
Rated power |
30W (class 2 power units) |
||
Load Regulation |
±2% |
||
Input |
Voltage Range |
100-277VAC |
|
Frequency Range |
47 - 63Hz |
||
Power Factor(Typ.)@ full load |
PF≥0.95/ 230VAC (Full loading) |
||
THD(Typ.)@ full load |
≤10%@120VAC ≤20%@230VAC ≤20%@277VAC |
||
Efficiency(Typ.)@ full load |
80% @230VAC |
82%@230VAC |
|
AC Current(Max.) |
0.4A |
0.4A |
|
Inrush Current (Typ.) |
7A, 50%, 350us @120VAC; 25A, 50% , 200us @277VAC |
||
Leakage current |
<0.5mA |
||
Protection |
Short Circuit |
Hiccup mode, recover automatically after fault condition is removed |
|
Over Load |
≤120% ,hiccup model, recover automatically after fault condition is removed |
||
Over temperature |
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop |
||
Protection Class |
II |
||
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
|
Working Humidity |
20 - 90%RH ,non-condensing |
||
Storage TEM.,Humidity |
-40 - +80℃,10 - 95%RH |
||
TEMP.coefficient |
±0.03%/℃(0 - 50℃) |
||
Vibration |
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US) |
|
Withstand voltage |
I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.5KVAC (US) |
||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
EMC Emission |
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US) |
||
EMC Immunity |
EN61000-4-2,3,4,5,6,11 EN61547 |
||
Others |
Net Weight |
0.35KG |
|
Dimension |
171.5*54*20mm (L*W*H) |
||
packing |
/ |
||
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |

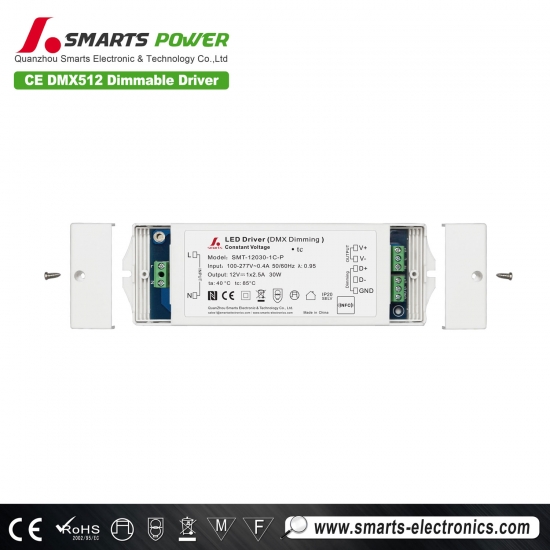

Mechanical Specification
1. Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal
2. Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
3. Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
Note: there is external antenna at output side. Don't disassemble!
Dimming operation
Address settings:
① RDM setting address:
Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.
② NFC setting address:
The DMX address can be read and written by a mobile with Easy NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DMX512 driver.

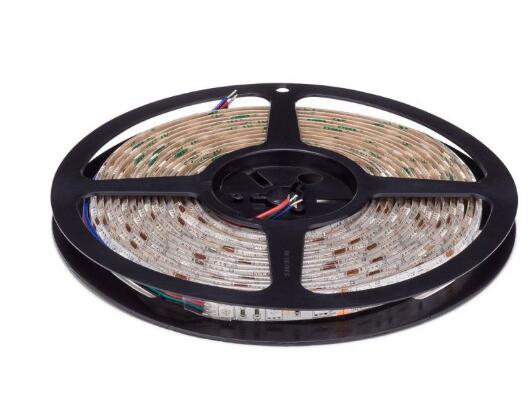

Compatible with RGB LED Strips
The 12v led strip power supply for RGB led lights and make your home and led lighting project more flexible and more brightful.
Related Products
The 12v led strip power supply are always suitable for your LED lighting project, such as led mirror. LED strips and LED cabinet lights.

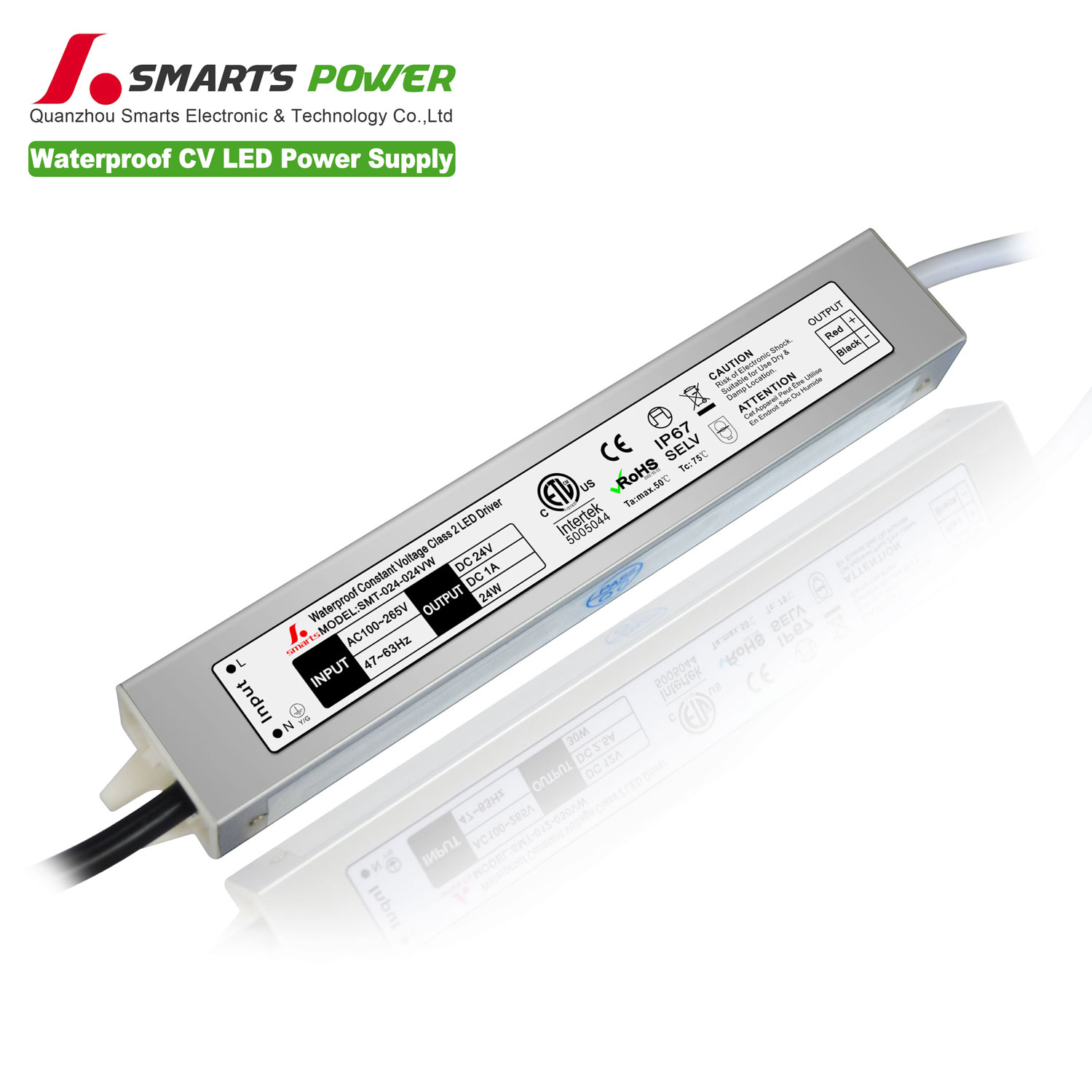

Mode:SMT-024-024VW |
