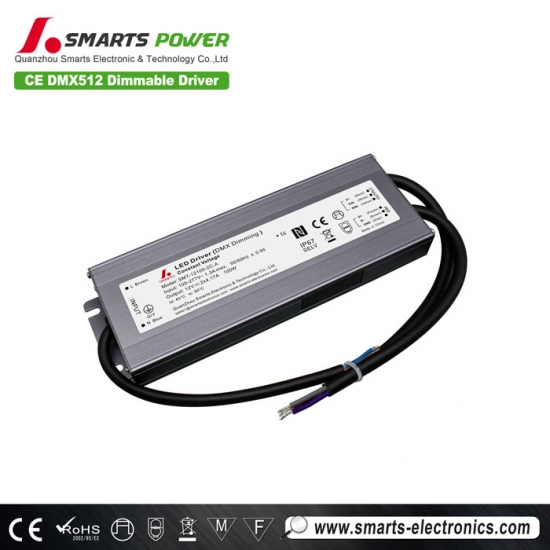

DMX 512 dimmable 100w 12v RGB led strip driver
This allows you to create lighting effects for large displays that were never thought possible. This granularity of 12v dc led power supply creates an endless number of scenarios for creative lighting design. This is the beauty of Smarts LED driver.
Specification
Model
SMT-2496-XC-A
X=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW)
Output
DC Voltage
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
CH1+CH2+CH3+CH4+CH5=4.0A
Rated power
96W (class 2 power unit)
Load Regulation
±2%
Input
Voltage Range
100-277VAC
Frequency Range
47 - 63Hz
Power Factor（Typ.@ full load
PF≥0.98/ 230VAC (Full loading)
THD（Typ.）@ full load
<15%
Efficiency（Typ.）@ full load
89% @230VAC
89%@230VAC
AC Current（Max.）
1.3A
1.3A
Inrush Current （Typ.）
48.5A,164us@50%Ipeak
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Load
≤120% ,hiccup model, recover automatically after fault condition is removed
Over temperature
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Protection Class
II
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20 - 95%RH ,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
EMC Immunity
EN61000-4-2,3,4,5,6,11 EN61547
Others
Net Weight
0.90KG
Dimension
230*78*25mm (L*W*H)
packing
10PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and
25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |

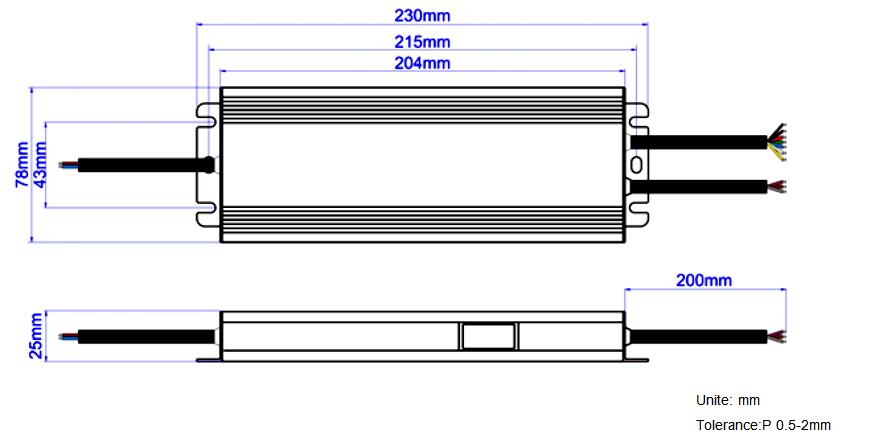

Mechanical Specification

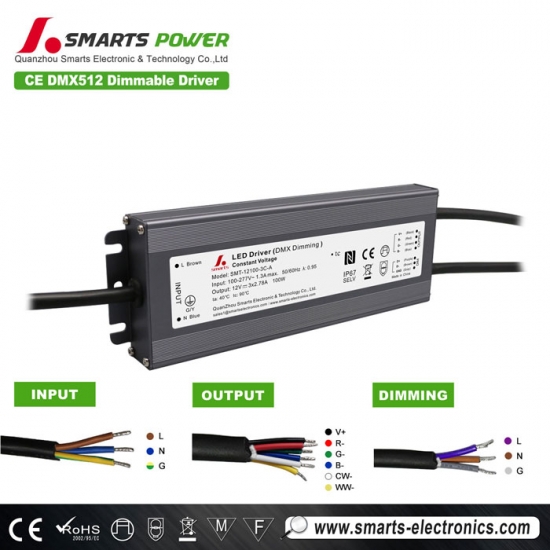

1. Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal

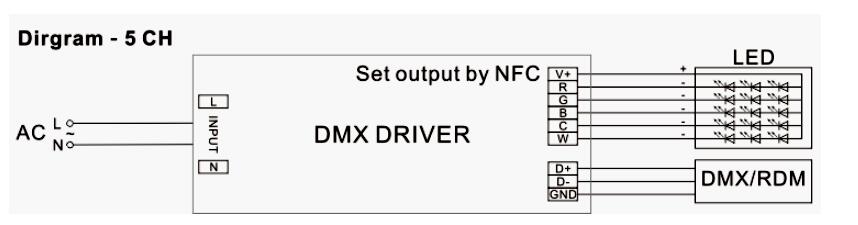

2. Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
3. Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
Note: there is external antenna at output side. Don't disassemble!
Dimming operation
Address settings:
① RDM setting address:
Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.
② NFC setting address:
The DMX address can be read and written by a mobile with Easy NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DMX512 driver.
Compatible with RGB Strip Lights
The RGB LEDs can be individually controlled at the same time. The on board integrated DMX decoders and IC chips give you everything you love about pixel control - all in one compact design.
Related Products
|

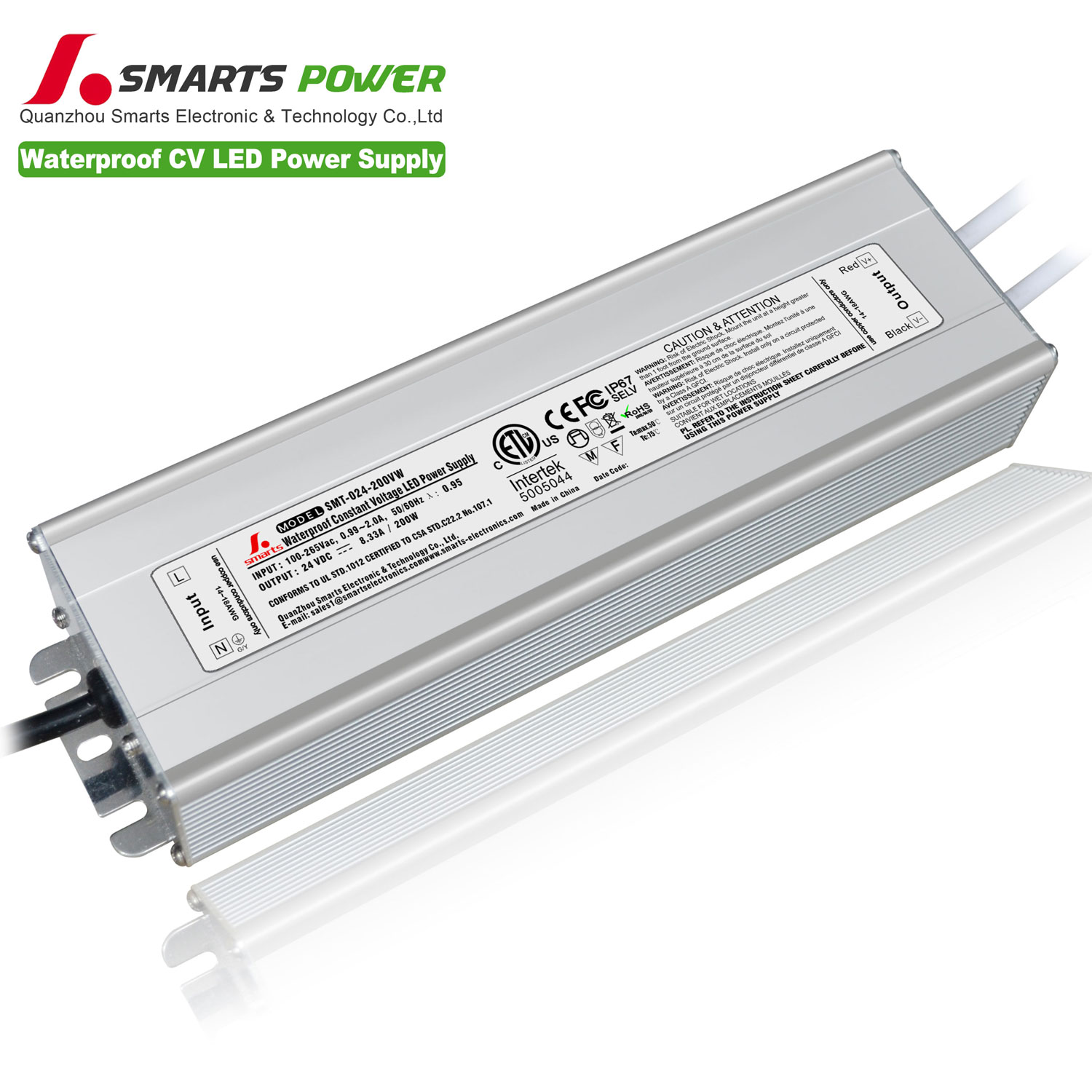

Mode：SMT-024-200VW |
