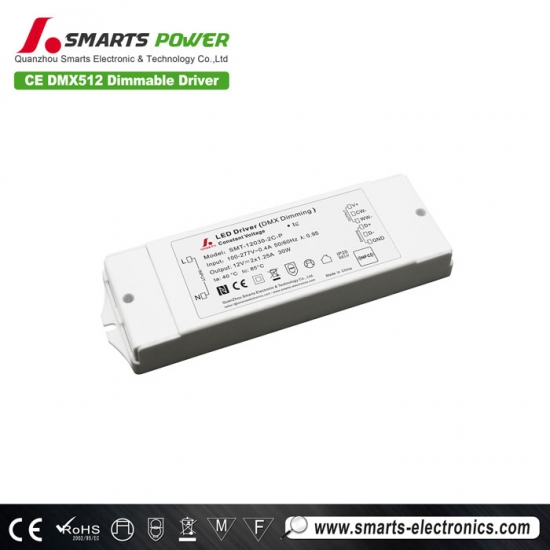

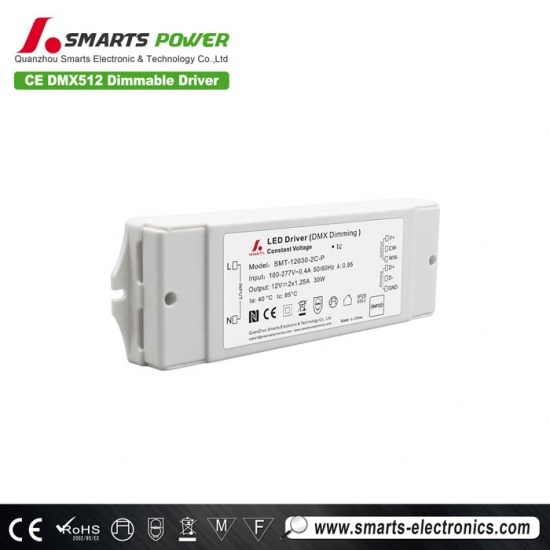

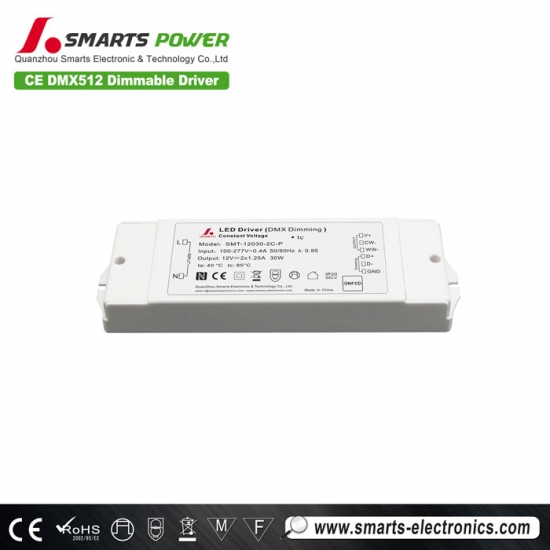

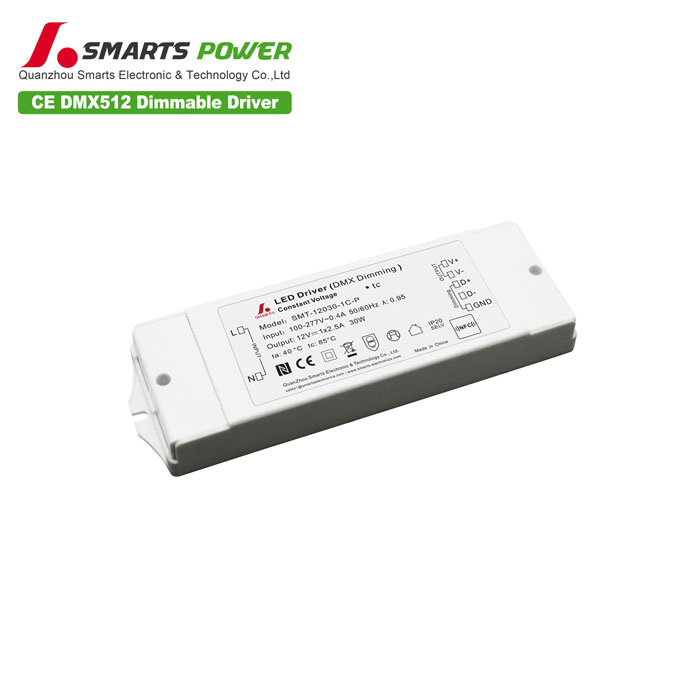

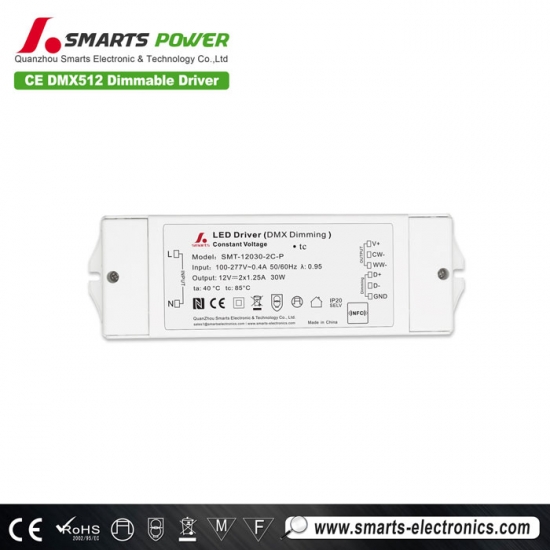

12vdc 30w CV DMX512 dimmable led power supply
|
Our constant voltage 30w led driver With the RDM (Remote Device Management) function, with NFC function, read and write DMX51 address or adjust, output voltage by mobile Easy NFC APP or special NFC device, to be used well in Acess lighting led kitchen lights. |
Specification
Model
SMT-12030-2C-P
SMT-24030-2C-P
X=1 for DIM (DW);
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
CH1=2.5A
CH1=1.25A
Rated power
30W (class 2 power units)
Load Regulation
±2%
Input
Voltage Range
100-277VAC
Frequency Range
47 - 63Hz
Power Factor（Typ.）@ full load
PF≥0.95/ 230VAC (Full loading)
THD（Typ.）@ full load
≤10%@120VAC ≤20%@230VAC ≤20%@277VAC
Efficiency（Typ.）@ full load
80% @230VAC
82%@230VAC
AC Current（Max.）
0.4A
0.4A
Inrush Current （Typ.）
7A, 50%, 350us @120VAC; 25A, 50% , 200us @277VAC
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Load
≤120% ,hiccup model, recover automatically after fault condition is removed
Over temperature
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Protection Class
II
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20 - 90%RH ,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
Withstand voltage
I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.5KVAC (US)
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
EMC Immunity
EN61000-4-2,3,4,5,6,11 EN61547
Others
Net Weight
0.35KG
Dimension
171.5*54*20mm (L*W*H)
packing
/
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and
25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |

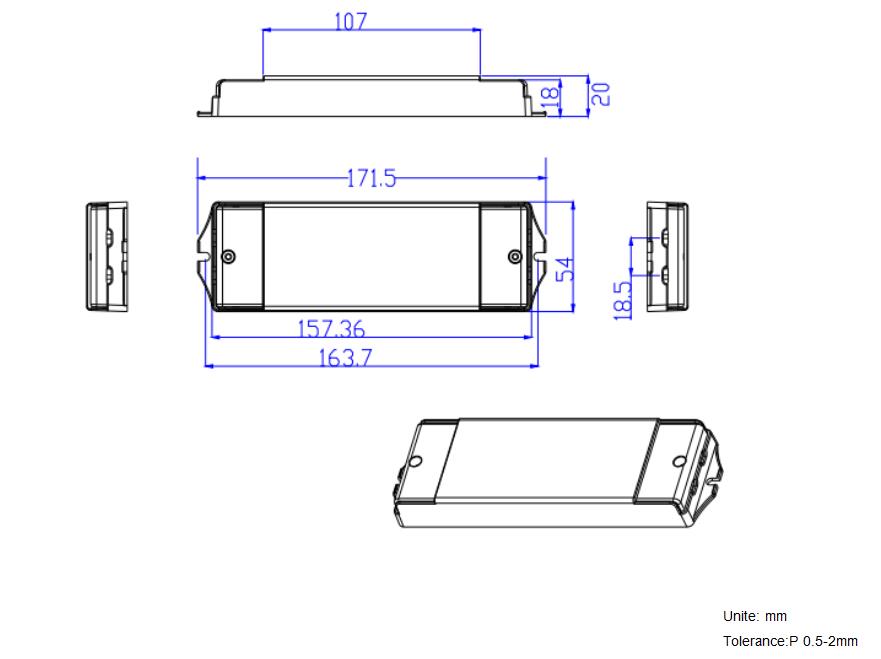

Mechanical Specification

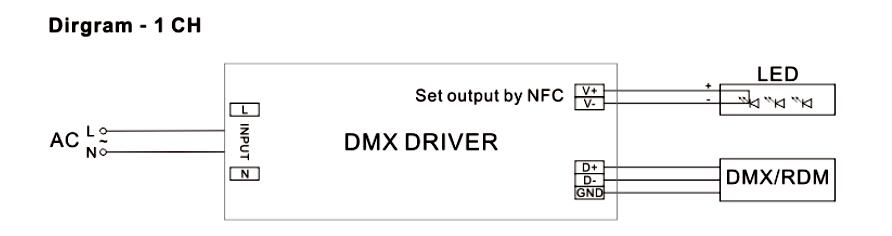

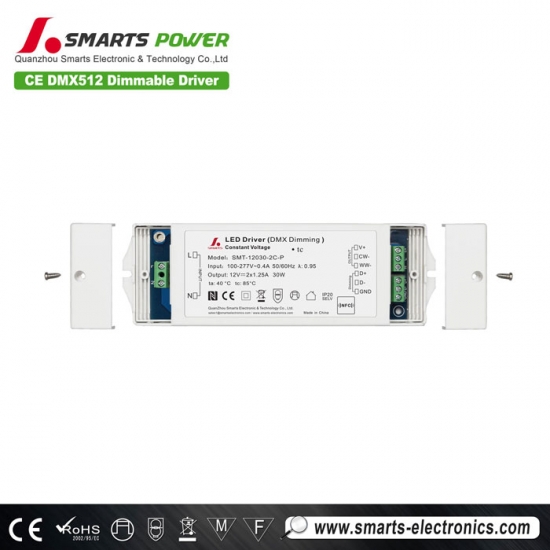

1. Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal
2. Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
3. Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
Note: there is external antenna at output side. Don't disassemble!
Dimming operation
Address settings:
① RDM setting address:
Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.
② NFC setting address:

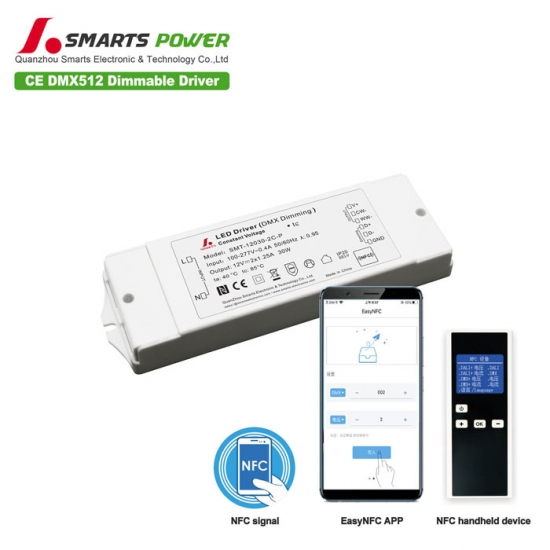

The DMX address can be read and written by a mobile with Easy NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DMX512 driver.
Compatible with RGB LED Strips

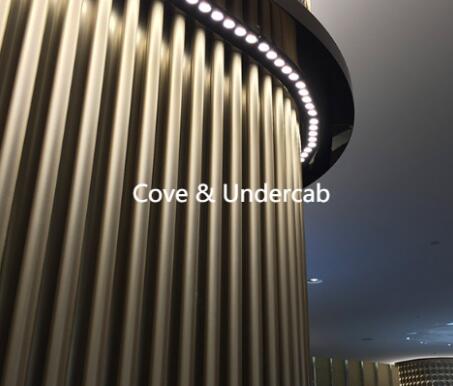

The 30w led dimmable driver RGB led light to create a wall grazing effect for columns and curved architectonic surfaces.
