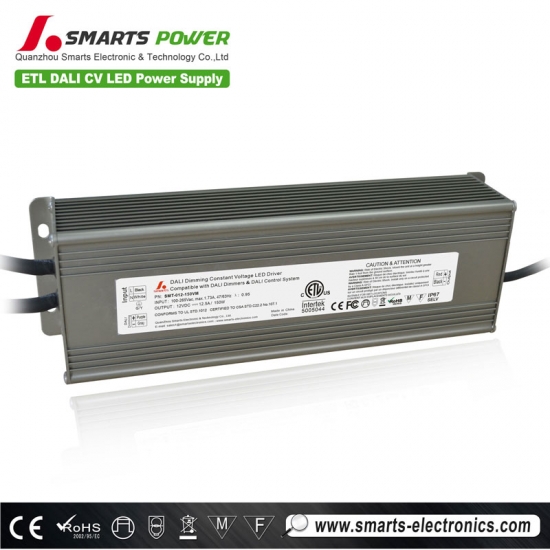

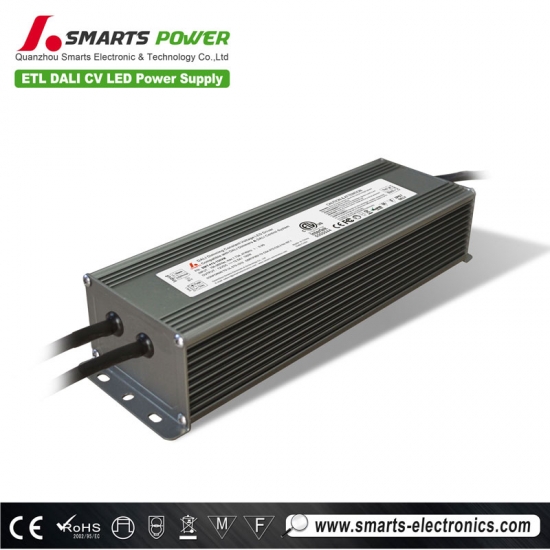

DALI Dimmable 150w Constant Voltage LED Driver 12V for sale
dali led dimming driver from Smarts Electronics is compatible with the widest range of LED arrays from 20w up to 300Watt. Dali drivers are divided in to categories constant current and constant voltage. Digital dimming is specified by technical standard such as IEC 62386 and IEC 60929. These standards ensures that equipment from different producers will interoperate.
|
Model |
SMT-012-150VM |
SMT-024-150VM |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Tolerance |
±0.5V |
||
|
Rated current |
0 - 12.5A |
0 - 6.25A |
|
|
Rated power |
150W |
150W |
|
|
Input |
Voltage Range |
100-265VAC/10-130VAC/170-265VAC |
|
|
Frequency Range |
47 - 63HZ |
||
|
Power Factor |
PF>0.98/120VAC PF>0.98/230VAC PF>0.95/265VAC(Full loading) |
||
|
Full Load Efficiency(Typ.) |
>89% |
>90% |
|
|
AC Current(Max.) |
1.49A |
1.47A |
|
|
Leakage current |
<0.5mA |
||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Load |
≤120% |
||
|
Over Circuit |
≤1.2*Iout |
||
|
Protection Class: |
Ⅰ |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||
|
Environment |
Working TEMP. |
-40 - +60℃ |
|
|
Working Humidity |
20 - 95%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40 - +80℃,10 - 95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0 - 50℃) |
||
|
Vibration |
10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes. |
||
|
Safety & EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP66 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
||
|
EMC Emission |
EN55015,EN61000-3-2 (≥60%load) |
||
|
EMC Immunity |
EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV) |
||
|
Others |
Weight |
1.6Kg |
|
|
Size |
256*78*47mm(L*W*H) |
||
|
packing |
305*295*210mm/10pcs/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
| Label |
 |
||
 |
 |
 |
 |
Feature for dali led dimming driver:
·Output constant Voltage
·Range: 100-265VAC/100-130VAC/170-265VAC
·Built-in active PFC function, PF>0.92
·Working Efficiency >89%
·Protections: short circuit/over load/ over current/ over temperature
·Cooling by free air convection
·IP67 design for indoor and outdoor installation .
·Dimming function: Built in DALI interface dimming function conform
to DALI Protocol IEC62386
·Dimming range from 0.1% to 100%
·3 years warranty
·Suitable for intelligent LED lighting
·Compliance to worldwide safety regulations for lighting
·Suitable for dry locations
Mechanical Specification for dimmable led driver 12v
--Input Rubber cable H05RN-F 3G 1.0mm²,the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)
--Signal Rubber cable H05RN-F 2*0.75mm²,Blue and White is DA1, DA2 (No polar). Connected to the BUS of the DALI Master.
--Output rubber cable :1 group of H05RN-F 2*1.5mm² for SMT-024-150VM; 2 group of 2*1.5mm² for SMT-012-150VM, Red is output ( V+) Positive,Black is output (V-) negative. Connected to LED Lamps.
Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Operation Reference No.1 for dimmable driver:
Operation Reference No.2
Operation Reference No.3
Derating Curve for constant voltage led driver:
^^To extend their life, please refer to the Derating Curve and derate according to the temperature.
Instruction for led drivers for sale:
1. This driver should be installed by qualified and professional person;
2. Please make sure the transformer is installed with adequate ventilation around it to allow for heat dissipation.
3. Ensure that wiring is correct before test in order to avoid light and power supply damage;
