36 Watt 12vdc 24vdc Constant Voltage Driver LED Dimmable for LED

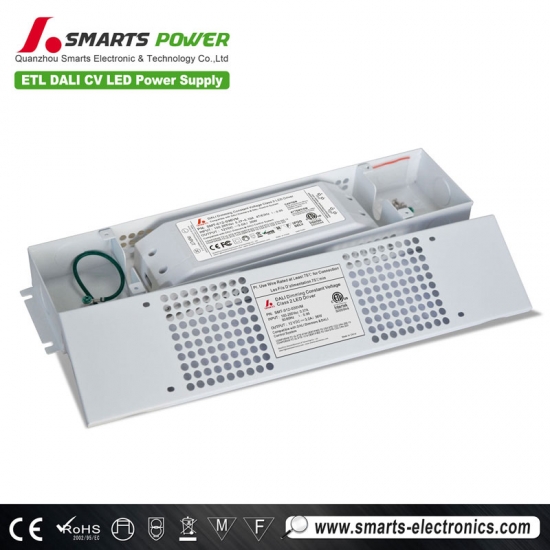

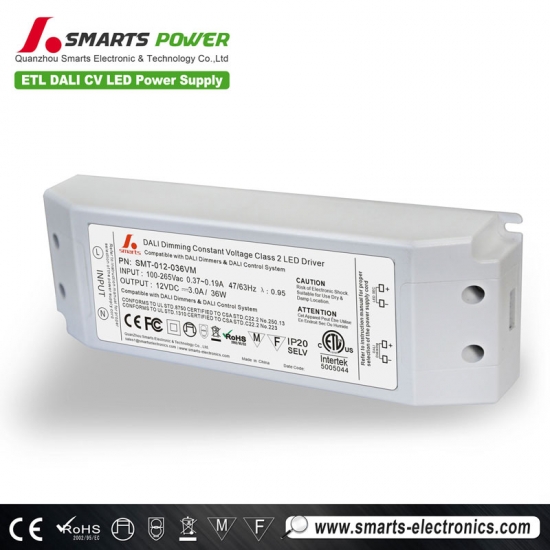

SMT-012-036VM is a dali driver 12v led with a compact size and high efficiency, supplying 0-3000mA. The -20~+60C temperature operating range can meet all kinds of lighting applications. It accepts universal input from 100 to 265VAC, and is certified to Class II /Class 2 and IP20 grade, providing perfect solutions for DALI control systems.
Specifications
|
Model |
SMT-012-036VM |
SMT-024-036VM |
SMT-036-036VM |
SMT-048-036VM |
||||
|
output |
DC Voltage |
12V |
24V |
36V |
48V |
|||
|
Voltage Tolerance |
±0.5V |
|||||||
|
Rated current |
0~3.0A |
0~1.5A |
0~1.0A |
0-0.75A |
||||
|
Rated power |
36W |
|||||||
|
input |
Voltage Range |
100~130VAC, 170~265VAC |
||||||
|
Frequency Range |
47~63HZ |
|||||||
|
Power Factor (Typ.) |
PF>0.90/110V / PF>0.90/220V |
|||||||
|
Efficiency(Typ.) |
>88% |
>88% |
>88% |
>88% |
||||
|
AC Current(Typ.) |
0.41A@110VAC |
0.21A@VAC |
||||||
|
Leakage current |
<0.40mA/110VAC / <0.50mA/220VAC |
|||||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over Loading |
<120% |
|||||||
|
Environment |
Working TEMP. |
-40~+60℃ |
||||||
|
Working Humidity |
20~90%RH, non-condensing |
|||||||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|||||||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
|||||||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|||||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
||||||
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|||||||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||||||
|
EMC EMISSION |
EN55015,EN61000-3-2,3 (>50%loading) |
|||||||
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11(Surge 4KV) |
|||||||
|
Others |
Net.Weight |
0.55Kg |
||||||
|
Size |
180*60*34mm(L*W*H) |
|||||||
|
packing |
355*215*215mm/20pcs/CTN |
|||||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again |
|||||||
 |
 |
 |
 |

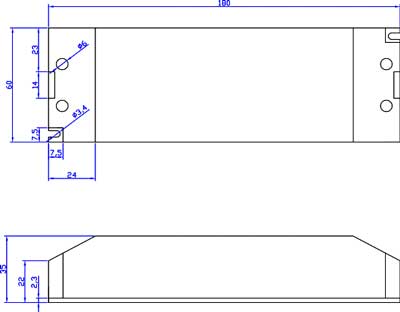

Mechanical Specification
· Input with Live Wire(L) Neutral Wire (N)
· Output LED SEC output Positive(LED+),output negative(LED-).Connected to LED Lamps.
· Signal Dimming (DA1), (DA2) DALI Non polar!Connected to the BUS of the DALI Master.
· When installing the LED driver and making input and output connections, cross-section area of conductor for input and output terminal block:0.75mm²(cord type: H03VVH2-F or H03VV-F).
· Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Compatible Lighting Type
Smarts Electronics offers a variety of 12v 24v constant voltage led driver that provide a high-performance solution for powering constant voltage LED lighting. DALI Dimming drivers come with the ability to control both the individual LED luminaries and multiple groups of them. 36 watt led driver with dali dimmable can match with 5" LED downlight 15 Watts from ledlightbulb brand.
Related Products
|
A variety of dimmable driver for led that provide a high-performance solution for powering constant voltage LED lighting. DALI Dimming drivers come with the ability to control both the individual LED luminaries and multiple groups of them.

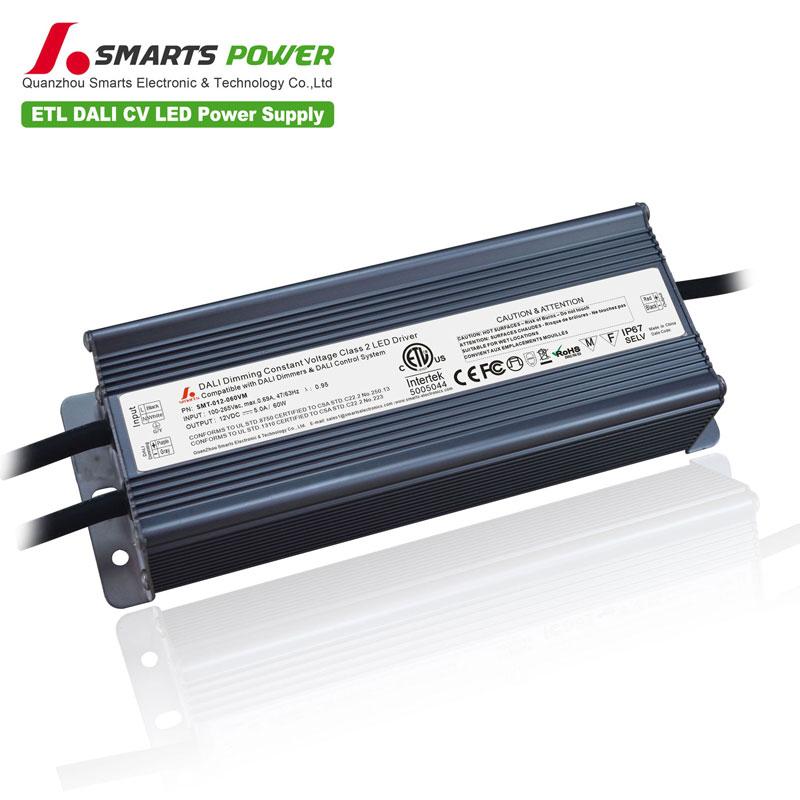

Mode：SMT-012-060VM intput voltage：100~265V AC Efficiency > 90% Size：230*68*45mm （L*W*H） |
