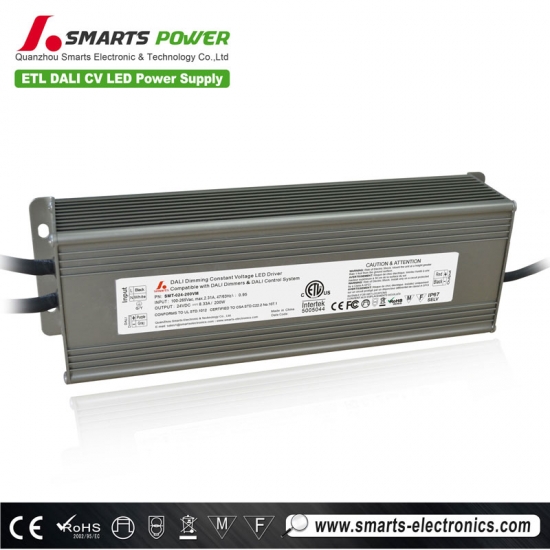

110volt ac to 24volt dc Waterproof LED Strip Dimmable Driver Suppliers
24v led strip power supply can not only control lighting but also monitor it, allowing for intelligent lighting systems that maximize service life and save energy. Compared to legacy solutions, a DALI network is more precise and allows fine grain control over the individual components in a complete lighting system.
|
Model |
SMT-012-200VM |
SMT-024-200VM |
SMT-036-200VM |
||
|
Output |
DC Voltage |
12VDC |
24VDC |
36VDC |
|
|
Voltage Accuracy |
±0.5V |
||||
|
Rated current |
0~16.67A |
0~8.33A |
0~5.55A |
||
|
Rated power |
200W |
200W |
200W |
||
|
Input |
Voltage Range |
100-265VAC |
|||
|
Frequency Range |
47~63HZ |
||||
|
Power Factor ( Typ.) |
PF>0.90/100V, PF>0.90/220V |
||||
|
Full Load Efficiency(Typ.) |
>88%/110, 220V |
>88%/110, 220V |
|||
|
AC Current(Typ.) |
2.30A/110VAC |
1.15A@220VAC |
|||
|
Leakage current |
<0.72mA/110VAC, <0.74mA/220VAC |
||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||
|
Over Current |
<1.4*I out |
||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||
|
Environment |
Working TEMP. |
-40~+50℃ |
|||
|
Working Humidity |
20~95%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||||
|
Vibration |
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP67 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (>50%load) |
||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV) |
||||
|
Others |
Weight |
1.8Kg |
|||
|
Size |
250*79*52mm(L*W*H) |
||||
|
packing |
355*215*215mm/10pcs/CTN / 240*70*50 mm for inner box |
||||
|
Not es |
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||||

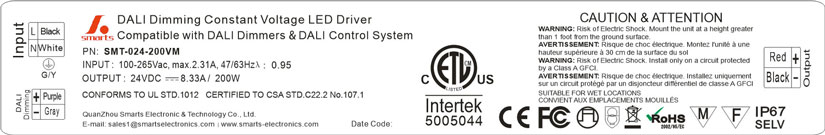

| Label |
 |
||||
 |
 |
 |
 |
Feature for waterproof led power supply ip67
·Voltage Range 100-265VAC
·Built-in PFC function, PF>0.90
·Efficiency>88%
·Protections:short circuit/over current/over temperature
·Cooling by free air convection
·IP67 design for indoor or outdoor installation .
·Dimming function:better compatibility DALI dimming
·Suitable for LED lighting applications by PWM output
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp/wet locations
·3 years warranty

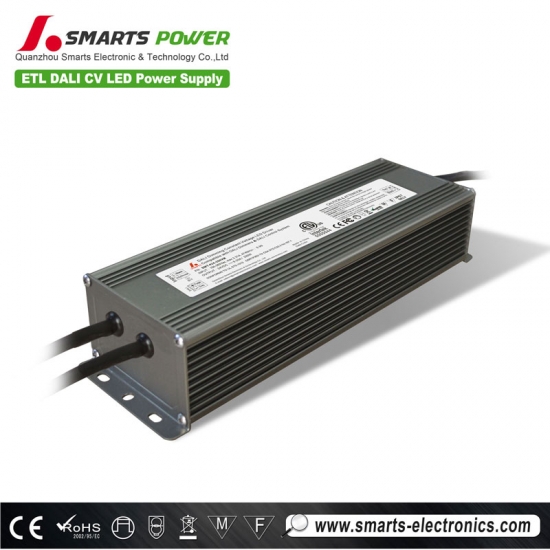

Mechanical Specification for ac to dc led power supply
--Input Rubber cable H03VV-F 3G 1.0m2,the green/yellow cable connect with (FG),Black with AC (L),Red or Green with AC(N)
--Input with Live Wire(L) Neutral Wire (N)
--Output LED SEC (LED+),(LED-)
--Signal Dimming (DA1), (DA2)
Dimming Operation for 24 volt led power supply
--Connect DALI driver signal cable with DALI dimmers, then dim after controller scan and assign address
Derating Curve for led dimmable driver suppliers
--Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
Operation Reference No.1 for led power supply 24v
Operation Reference No.2 for 24 volt led power supply
Operation Reference No.3
Derating Curve for 24 volt led power supply
^^To extend their life, please refer to the Derating Curve and derate according to the temperature.
Instruction for 24 volt led power supply
1. This driver should be installed by qualified and professional person;
2. Please make sure the transformer is installed with adequate ventilation around it to allow for heat dissipation.
3. Ensure that wiring is correct before test in order to avoid light and power supply damage;
