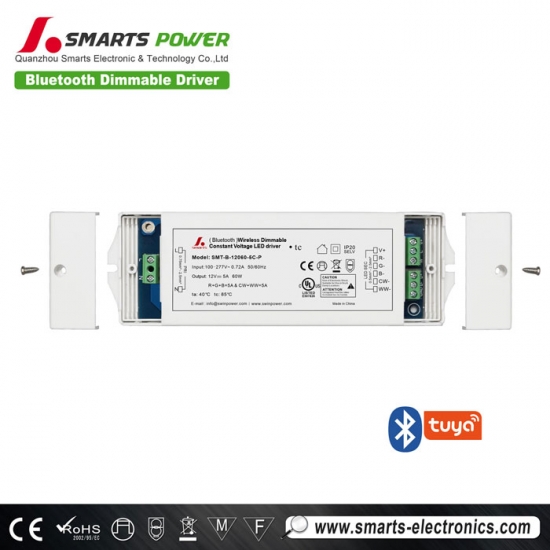

CE UL ROHS listed 12VDC 60W bluetooth led driver
Our bluetooth led driver of dimming function: Bluetooth wireless dim., which can be controller by Mobile App or Smart speaker, like Google home or Amazon echo.
Specification
|
Model |
SMT-B-12060-YC-P |
SMT-B-24060-YC-P |
||
|
Y=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT |
||||
|
Output |
DC Adj. Voltage Range |
11-13V |
23-25V |
|
|
Voltage Tolerance |
±0.5V |
|||
|
Voltage Regulation |
±0.5% |
|||
|
Rated current |
CH1+CH2+CH3+CH4+CH5=5A |
CH1+CH2+CH3+CH4+CH5=2.5A |
||
|
Rated power |
60W |
|||
|
Load Regulation |
±2% |
|||
|
Input |
Voltage Range |
100-277VAC |
||
|
Frequency Range |
47 - 63Hz |
|||
|
Power Factor（Typ.）@ full load |
PF≥0.95/ 230VAC (Full loading) |
|||
|
THD（Typ.）@ full load |
<15% |
|||
|
Efficiency（Typ.）@ full load |
87% @230VAC |
88%@230VAC |
||
|
AC Current（Max.） |
0.72A |
0.72A |
||
|
Inrush Current （Typ.） |
45A (Twidth 145us measured at 50% I peak, COLD START, 230VAC) |
|||
|
Leakage current |
<0.5mA |
|||
|
Protection |
Short Circuit |
Hiccup mode, recover automatically after fault condition is removed |
||
|
Over Load |
≤120% ,hiccup mode, recover automatically after fault condition is removed |
|||
|
Protection Class |
II |
|||
|
Over temperature |
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop |
|||
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
||
|
Working Humidity |
20 - 90%RH ,non-condensing |
|||
|
Storage TEM.,Humidity |
-40 - +80℃，10 - 95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃（0 - 50℃） |
|||
|
Vibration |
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US) |
||
|
Withstand voltage |
I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.5KVAC (US) |
|||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|||
|
EMC Emission |
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US) |
|||
|
EMC Immunity |
EN61000-4-2,3,4,5,6,11 EN61547 |
|||
|
Others |
Net Weight |
0.40KG |
||
|

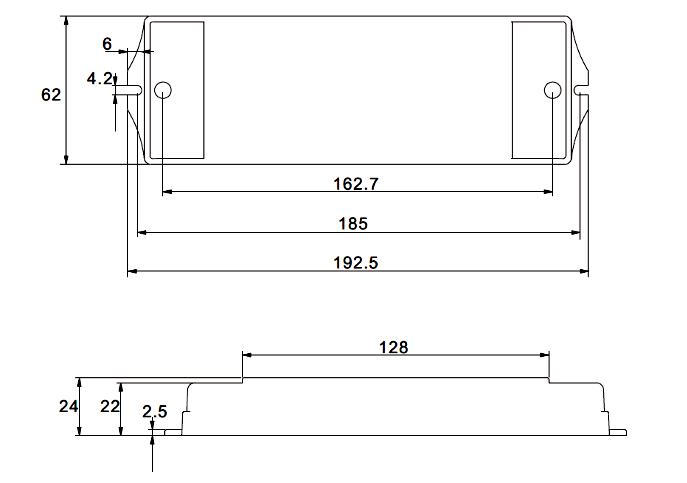

Dimension |
192.5*62*24mm (L*W*H) |
|||
|
packing |
195*65*28mm /1PC/box 280*210*160mm/20PCS/CTN G.W.:8.3KG/CTN |
|||
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
|||
 |
 |
 |
 |
Mechanical Specification
1. Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal
Suggested wire diameter: Primary 0.75-2.5mm² (18-14 AWG); Secondary 0.5-2.5mm² (20-14 AWG)
2. Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
3P for CCT (TW) dimming;
4P for RGB dimming;
5P for RGBW dimming;
6P for RGB+CCT dimming.
Dimming operation
Compatible with LED TAPE

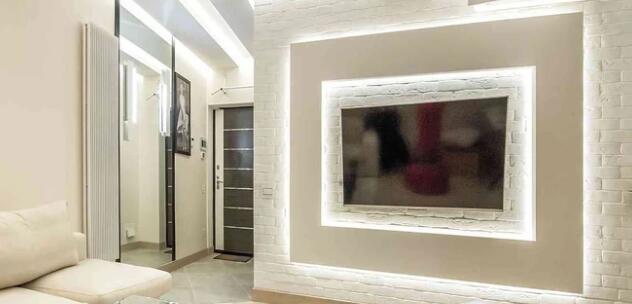

The LED tape could be seen in our daily life, when it come to Smart home, we will see LED tape for the intelligent lighting, so the bluetooth dimmable led driver could make it.
Related Products
|

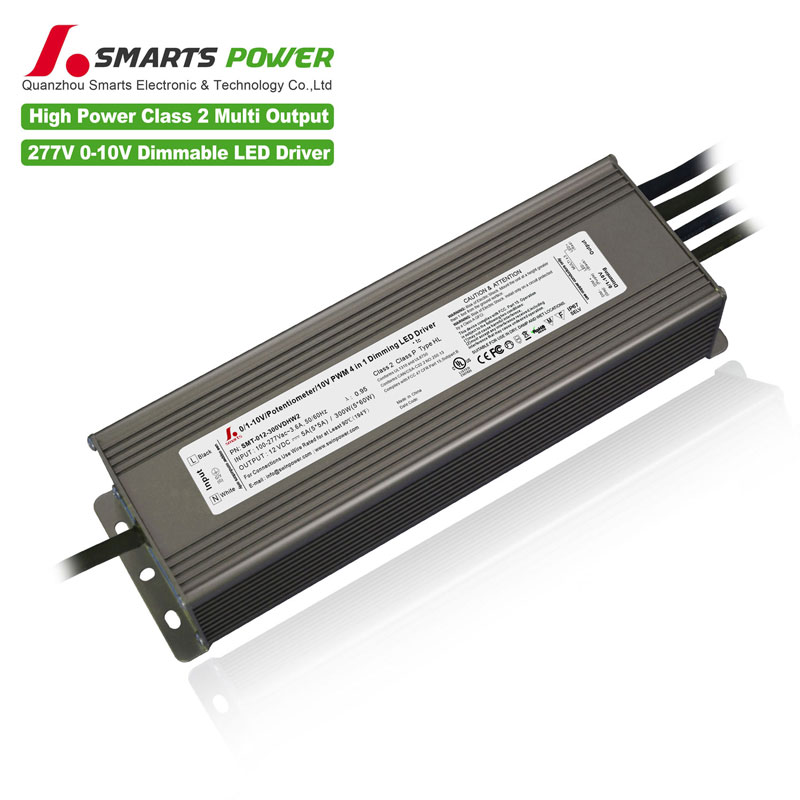

Mode：SMT-012-300VDHW2
