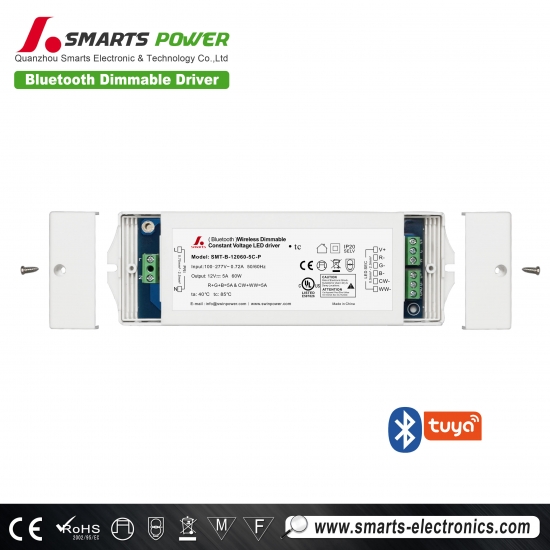

12 volt 60w bluetooth dimmbale led power supply for outdoor smart lighting
Discover devices which have already been added in the Smart Life app then dimmable driver for led lights ofbluetooth dimmable driver could be controlled through Echo.
Specification
Model
SMT-B-12060-5C-P
SMT-B-24060-5C-P
Y=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT
Output
DC Adj. Voltage Range
11-13V
23-25V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
CH1+CH2+CH3+CH4+CH5=5A
CH1+CH2+CH3+CH4+CH5=2.5A
Rated power
60W
Load Regulation
±2%
Input
Voltage Range
100-277VAC
Frequency Range
47 - 63Hz
Power Factor（Typ.）@ full load
PF≥0.95/ 230VAC (Full loading)
THD（Typ.）@ full load
<15%
Efficiency（Typ.）@ full load
87% @230VAC
88%@230VAC
AC Current（Max.）
0.72A
0.72A
Inrush Current （Typ.）
45A (Twidth 145us measured at 50% I peak, COLD START, 230VAC)
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Load
≤120% ,hiccup mode, recover automatically after fault condition is removed
Protection Class
II
Over temperature
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20 - 90%RH ,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
Withstand voltage
I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.5KVAC (US)
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
EMC Immunity
EN61000-4-2,3,4,5,6,11 EN61547
Others
Net Weight
0.40KG

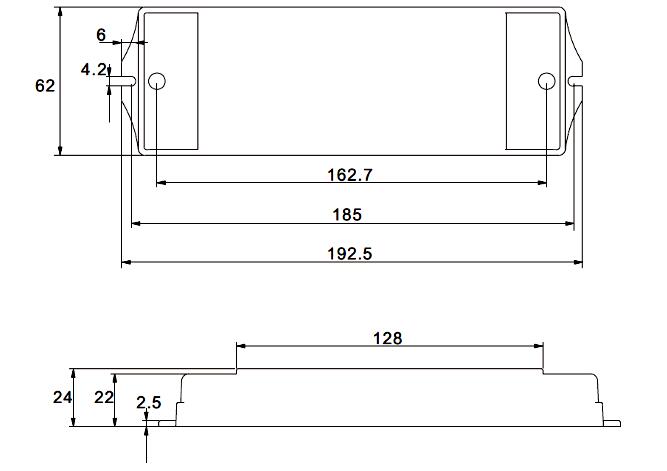

Dimension
192.5*62*24mm (L*W*H)
packing
195*65*28mm /1PC/box 280*210*160mm/20PCS/CTN G.W.:8.3KG/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since
EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify
EMC Directive on the complete installation again.
 |
 |
 |
 |
Mechanical Specification
Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal
Suggested wire diameter: Primary 0.75-2.5mm² (18-14 AWG); Secondary 0.5-2.5mm² (20-14 AWG)
※Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
3P for CCT (TW) dimming;
4P for RGB dimming;
5P for RGBW dimming;
6P for RGB+CCT dimming.
Dimming operation
Compatible with LED tape lights
With the power supply for led strip lighting, ODS is flexible to adjust product specification depending on the demand of business.
