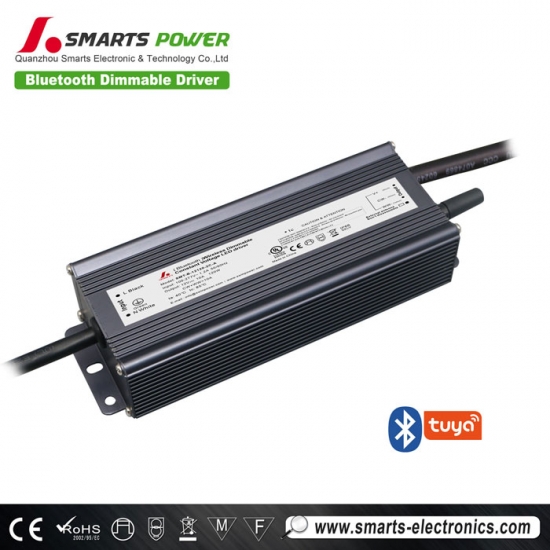

120v to 12v dc bluetooth dimming driver led power supply led light strip
0%-100% dimmable brightness, adopt TUYA module, 8K Hz PWM output; minimum dimmability is 1%, different channels to be chosen, 1CH, 2CH, 3CH, 4CH or 5CH bluetooth dimming driver led, color temperature 3000K-6500K changeable for ESTELLES LIGHTING dim LEDs.
Product parameters
Model
SMT-B-12120-YC-A
SMT-B-24120-YC-A
Y=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW)
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
CH1+CH2+CH3+CH4+CH5=10A
CH1+CH2+CH3+CH4+CH5=5A
Rated power
120W
Load Regulation
±2%
Input
Voltage Range
100-277VAC
Frequency Range
47 - 63Hz
Power Factor（Typ.）@ full load
PF≥0.98/ 230VAC (Full loading)
THD（Typ.）@ full load
<15%
Efficiency（Typ.）@ full load
89% @230VAC
89%@230VAC
AC Current（Max.）
1.25A
1.25A
Inrush Current （Typ.）
53A (Twidth 250us measured at 50% I peak, COLD START, 230VAC)
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Load
≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Protection Class
II
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20 - 95%RH ,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety & EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
EMC Immunity
EN61000-4-2,3,4,5,6,11 EN61547
Others
Net Weight
0.90KG
Dimension
200*70*43mm (L*W*H)
packing
340*275*170mm/10PCS/CTN G.W.:11.3KG/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Mechanical Specification

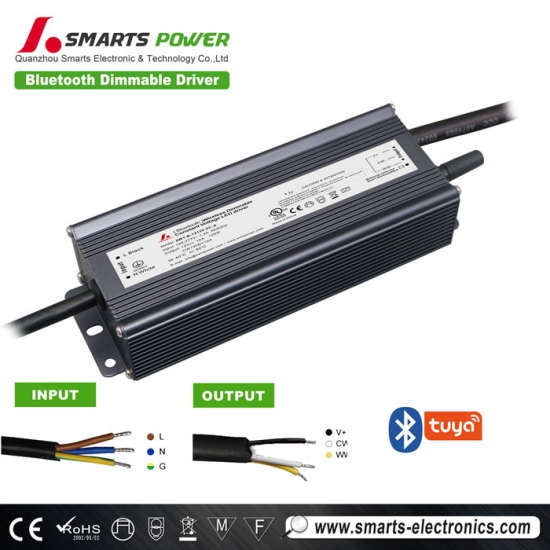

Input Rubber cable 3*1.0mm²(VDE approval), the Y/G cable connect with (FG) , Brown with AC (L), Blue with AC(N) (EU)
Input SJOW Rubber cable 3*18AWG (UL approval), the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US)
Dimming cable Purple (D+), Brown (D-) and Gray (GND) connect to DMX dimmer / system.
Output cable to be connected to LED Light;
DIM (DW) dimming: Rubber cable
Black is output ( V+) Positive, White is output (V-) negative
CCT (TW) dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative
RGB dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) and Blue (B-) are output (V-) negative
RGBW dimming:1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (W-) are output (V-) negative
RGB+CCT dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (CW-) and Yellow (WW-) are output (V-) negative.;
Compatible Strip LED Light Type

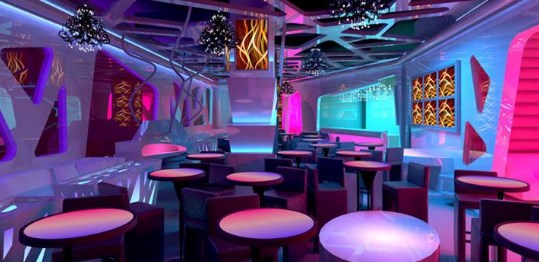

Ecurrentled strip is applicable to a wide range of positions, with its different types, suitable for product showcase, store door decoration, light box backlight, hotel KTV decoration, outdoor lighting, home smallpox, top porch decoration with led dimming drivers. LED strip has now been applied to furniture, automobile, advertising etc..
.
Related Products
|

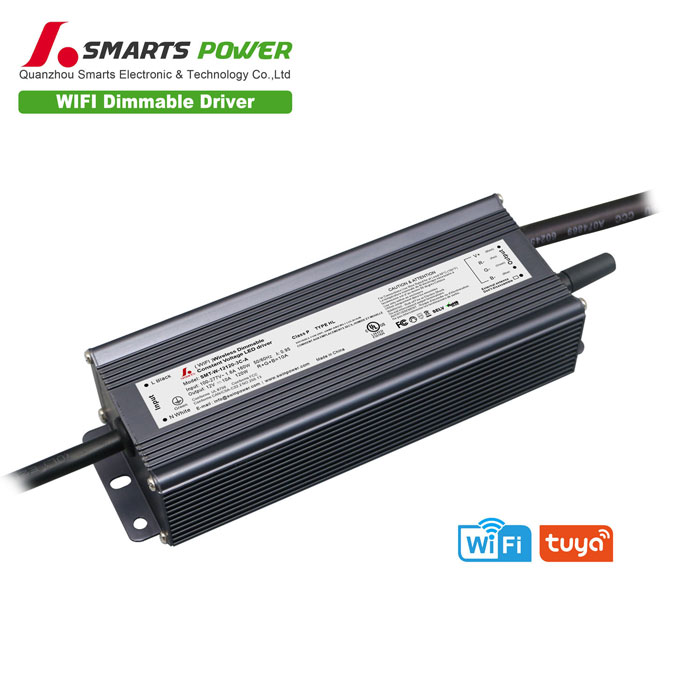

Mode：SMT-W-12120-3C-A |
