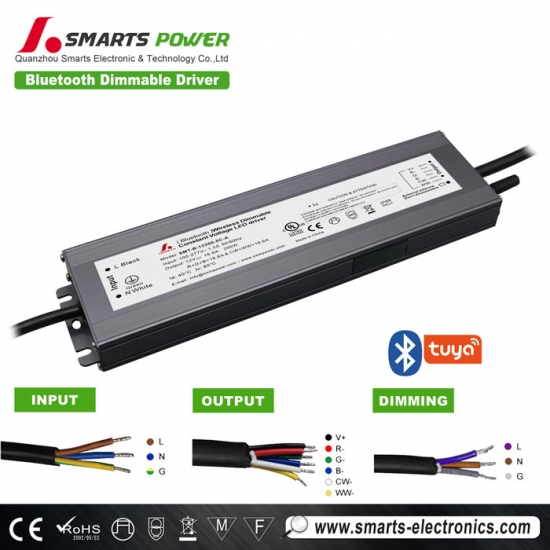

7 years warranty 200w 12v wireless dimmable led driver
Smarts bluetooth led dimmable drivers mains LED driver with power factor correction (PFC) and primary side regulation provides all of the features required for high-performance dimmable LED ballast designs and supports AC input, isolated or non-isolated flyback and smart lighting technologies.
Specification
|
Model |
SMT-B-12200-5C-A |
SMT-B-24200-5C-A |
|
|
Y=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW) |
|||
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Tolerance |
±0.5V |
||
|
Voltage Regulation |
<1% |
||
|
Rated current |
CH1+CH2+CH3+CH4+CH5=16.6A |
CH1+CH2+CH3+CH4+CH5=8.3A |
|
|
Rated power |
200W |
||
|
Load Regulation |
<1% |
||
|
Input |
Voltage Range |
100-277VAC |
|
|
Frequency Range |
47 - 63Hz |
||
|
Power Factor（Typ.）@ full load |
PF≥0.98/ 230VAC (Full loading) |
||
|
THD（Typ.）@ full load |
<15% |
||
|
Efficiency（Typ.）@ full load |
91% @230VAC 89% @120VAC |
||
|
AC Current（Max.） |
2.25A |
||
|
Inrush Current （Typ.） |
35.2A (Twidth 510us measured at 50% I peak, COLD START, 230VAC) |
||
|
Leakage current |
<0.5mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recover automatically after fault condition is removed |
|
|
Over Load |
≤120% ,hiccup mode, recover automatically after fault condition is removed |
||
|
Over temperature |
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop |
||
|
Protection Class |
II |
||
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
|
|
Working Humidity |
20 - 95%RH ,non-condensing |
||
|
Storage TEM.,Humidity |
-40 - +80℃，10 - 95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0 - 50℃） |
||
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety & EMC |
Safety standards |
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US) |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US) |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC Emission |
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US) |
||
|
EMC Immunity |
EN61000-4-2,3,4,5,6,11 EN61547 |
||
|
Others |
Net Weight |
1.2KG |
|
|
Dimension |
279*78*25.1mm (L*W*H) |
||
|
packing |
|
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |

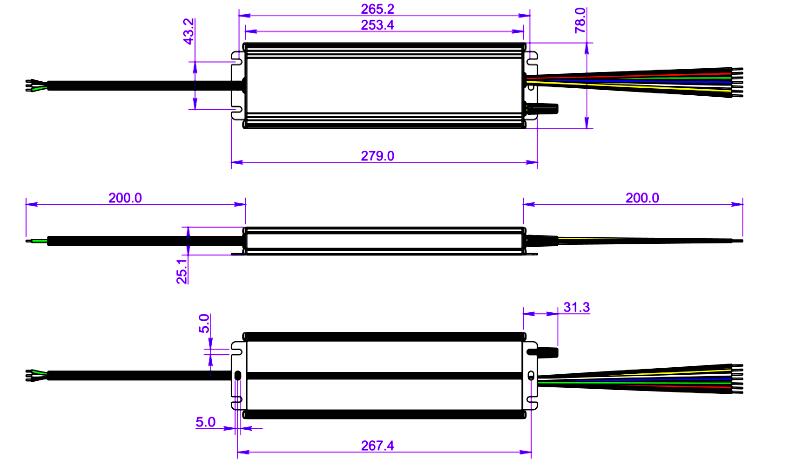

Mechanical Specification
Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal
Suggested wire diameter: Primary 0.75-2.5mm² (18-14 AWG); Secondary 0.5-2.5mm² (20-14 AWG)
※Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
3P for CCT (TW) dimming;
4P for RGB dimming;
5P for RGBW dimming;
6P for RGB+CCT dimming.

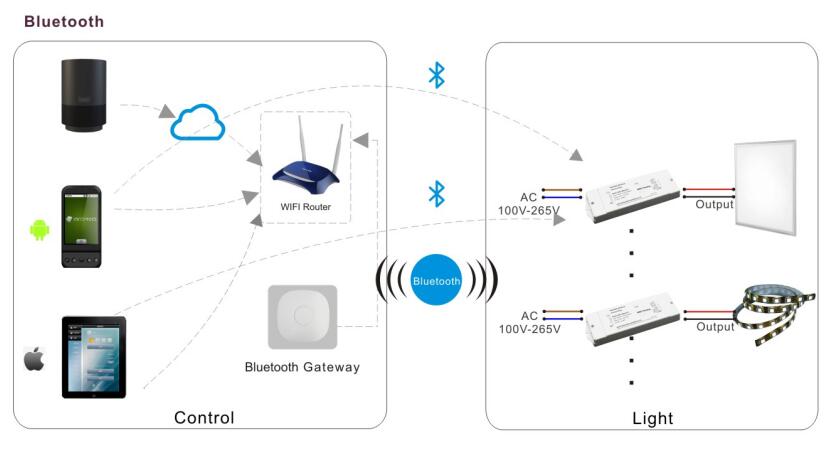

Dimming operation
Compatible with LED tape lights
With under cabinet led dimmable lighting growing, Because the light is battery operated, outlets and wiring aren't necessary. The light is perfect for kitchens, pantries, cabinets, garage, tool sheds or anywhere else with limited electrical capability and installs easily using the included hardware or double-sided mounting tape.
