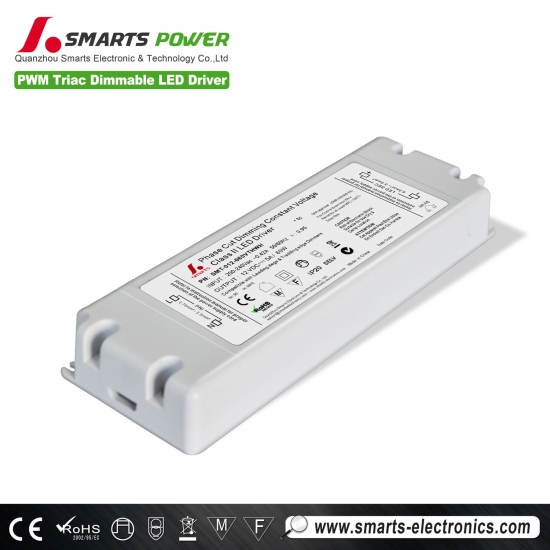

CE triac dimmable 12v led power supply 60w led driver for strip light
SMT-012-060VTHWH is triac dimmable 12v led power supply 60w. It is compatible with leading edge and trailing edge dimmers. Compatible with most of Lutron dimmers in the market. It can be customized with 20KHz PWM output to be flicker free. It is compatible with ledels's downlight.
Product parameters
|
model |
SMT-012-060VTHWH |
SMT-024-060VTHWH |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Rated current |
5.00A |
2.50A |
|
|
Voltage Tolerance |
±0.5V |
|
|
|
Rated power |
60W |
60W |
|
Input |
Voltage Range |
200-240VAC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Full Load Efficiency（Typ.） |
>85% |
|
|
|
AC Current（Typ.） |
0.38A |
|
|
|
Leakage current |
<0.50mA |
|
|
|
Power Factor ( Typ.） |
PF≧0.98/200VAC PF≧0.98/230VAC PF≧0.98/240VAC(Full loading) |
|
|
protection |
Over temperature |
100℃± 10℃ shut down o/p voltage ,re-power on to recover |
|
|
|
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
|
|
|
Over Loading |
≤120% |
|
|
|
Over Current |
≦ 1.2 *Iout |
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
EN55015,EN61000-3-2,3 (≧60%loading) |
|
|
Others |
Weight |
0.35KG |
|
|
|
Size |
178*61*24mm (L*W*H) |
|
|
|
packing |
185*65*28mm inner box 290*215*240mm outside carton 20PCS/CTN |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be adjusted. |
||
 |
 |
 |
 |

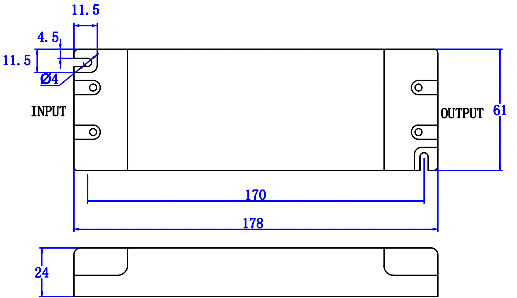

Mechanical Specification
CompatibleDimmer Type

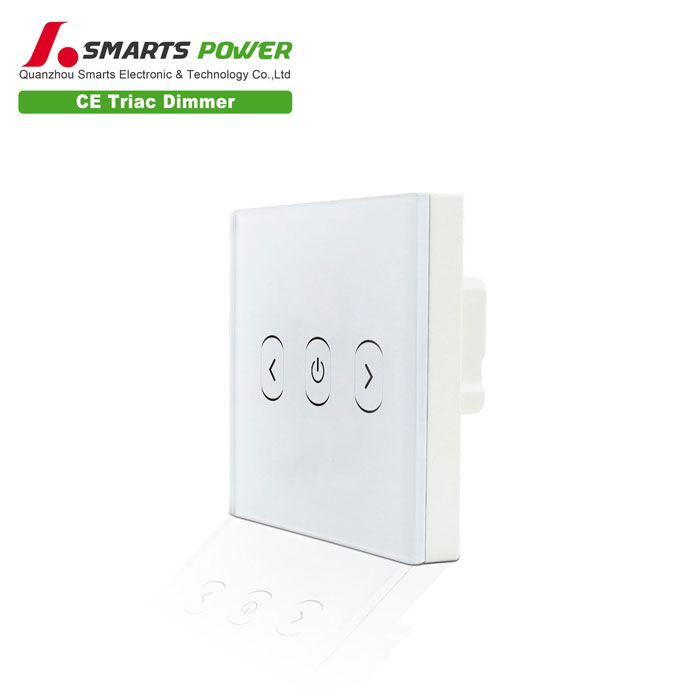

SMT250-T2 is triac dimmer. The phase-cut mode is trailing edge dimming. It has CE ROHS certificate. It is dimming well with our triac/ phase cut dimmable led drivers. It is dimming well with TCP LED Lights Bulbs.
