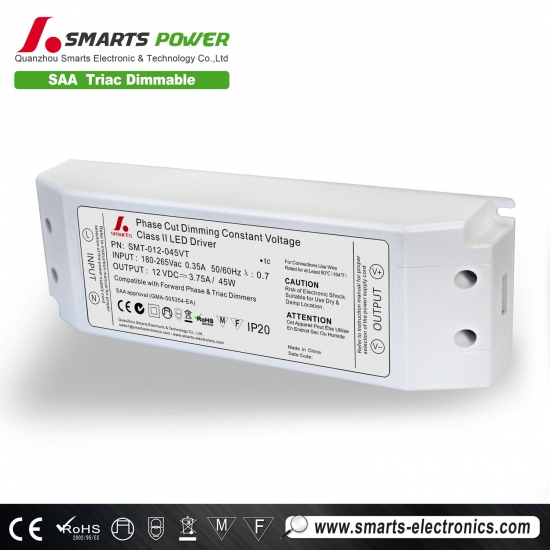

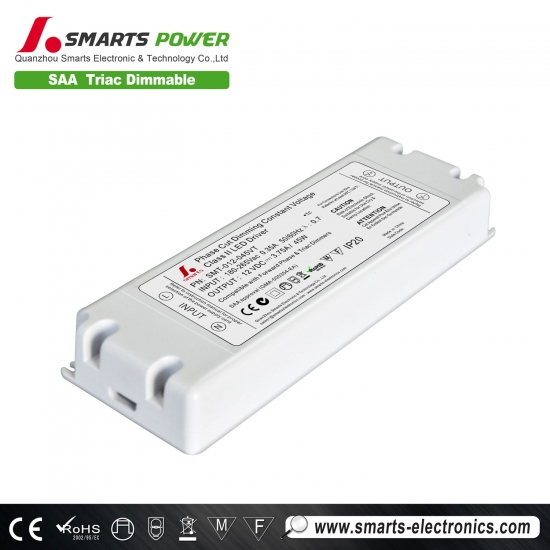

constant voltage triac dimmable 12v 45w led driver ac to dc power supply
|
model |
SMT-012-045VT |
SMT-024-045VT |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
3.75A |
1.87A |
|
|
Rated power |
45W |
45W |
|
|
Input |
Voltage Range |
90-135VAC/170~265VAC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
PF>0.94/120V,PF>0.95/220V, PF>0.93/265V |
||
|
Full Load Efficiency(Typ.) |
>84% |
>84% |
|
|
AC Current(Typ.) |
0.34A/120VAC 0.27A/220VAC 0.24A/265VAC |
||
|
Leakage current |
<0.25mA/120V/230VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over voltage |
<140VAC(90~135V) , <270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN-60950-1. EN-61347-1/-2/-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (>50%load) |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level (surge4KV) |
||
|
Others |
Weight |
0.32Kg |
|
|
Size |
180*60*34mm(L*W*H) |
||
|
packing |
309*279*176mm |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 120VAC,220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3.Tolerance:includes set us tolerance,line regulation and load regulation . |
||
45W triac dimmable constant voltage LED driver Mechanical Specification
- Input Brown with AC (L),Blue with AC(N)
- Output Red is(DIM+),Black is(DIM-)
- Note: Any other requests we can customized.
Dimming Operation
- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero

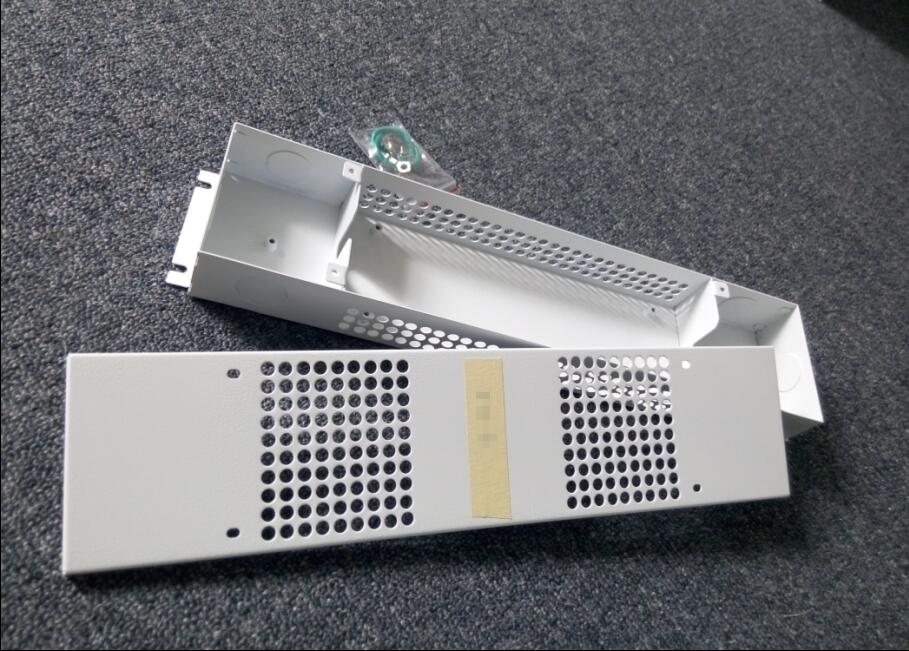

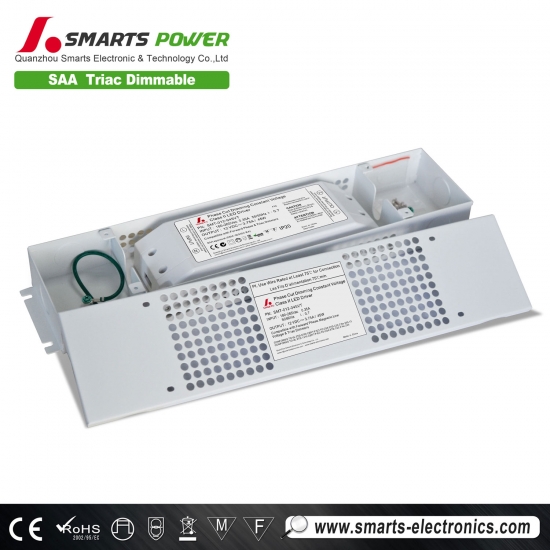

We can supply you ETL approved Junction boxes for all kinds of the LED drivers
What Service we can supply??
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
-
OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; -
After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely
Our led drivers are widely used for
Vehicle Lights, Controller Panels
