CE ROHS 220v ac 12v dc 30w triac dimmable led driver

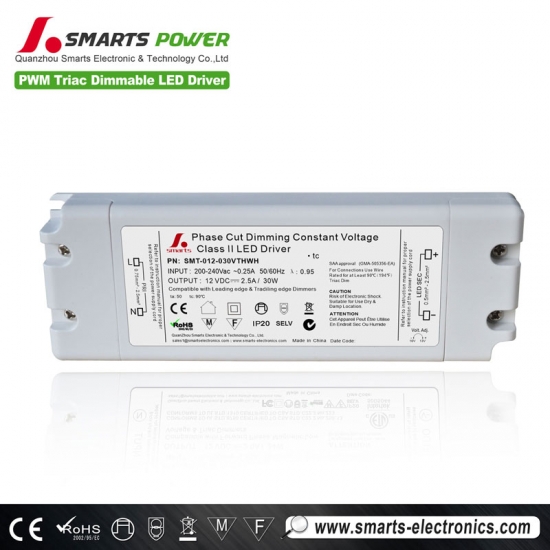

SMT-012-030VTHWH is 30w led driver phase cut dimming with 12Vdc and 24Vdc option. The input voltage range is 200-240Vac for European market. The dimming range is around 0-100%, which is compatible with most of dimmer in the market. It is IP 20 not waterproof led driver for indoor projects. It is compatible with AQ Lighting's lighting.
Product parameters
model |
SMT-012-030VTHWH |
SMT-024-030VTHWH |
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Regulation |
±0.5% |
|
|
Rated current |
2.5A |
1.25A |
|
Rated power |
30W |
30W |
Input |
Voltage Range |
220-240V AC |
|
|
Frequency Range |
47~63HZ |
|
|
Power Factor ( Typ.) |
PF≧0.98/200VAC PF≧0.98/230VAC PF≧0.98/240VAC(Full loading) |
|
|
Full Load Efficiency(Typ.) |
>82% |
>81% |
|
AC Current(Typ.) |
0.22A |
0.22A |
|
Leakage current |
<0.50mA |
|
Protection |
Over temperature |
100℃± 10℃ shut down o/p voltage ,re-power on to recover |
|
|
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
|
|
Over Current |
≦ 1.2 *Iout |
|
|
Over Loading |
≤120% |
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
|
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
|
|
Vibration |
10-500Hz,2G 10min./1 cycle,period for 72min,each along X,Y,Z axes. |
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
EMC EMISSION |
EN55015,EN61000-3-2,3 (≧60%loading) |
|
Others |
Weight |
0.21KG |
|
|
Size |
155*54*20mm (L*W*H) |
|
|
packing |
160*60*23mm for inner box ; 350*240*130mm for carton 40PCS/CTN |
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be adjusted. |

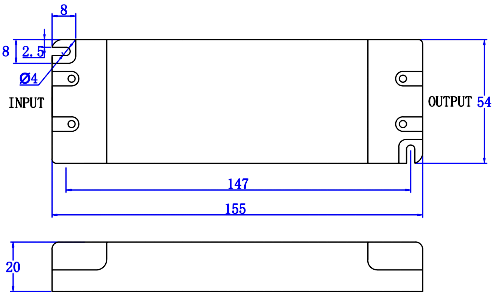

Mechanical Specification
CompatibleDimmer Type

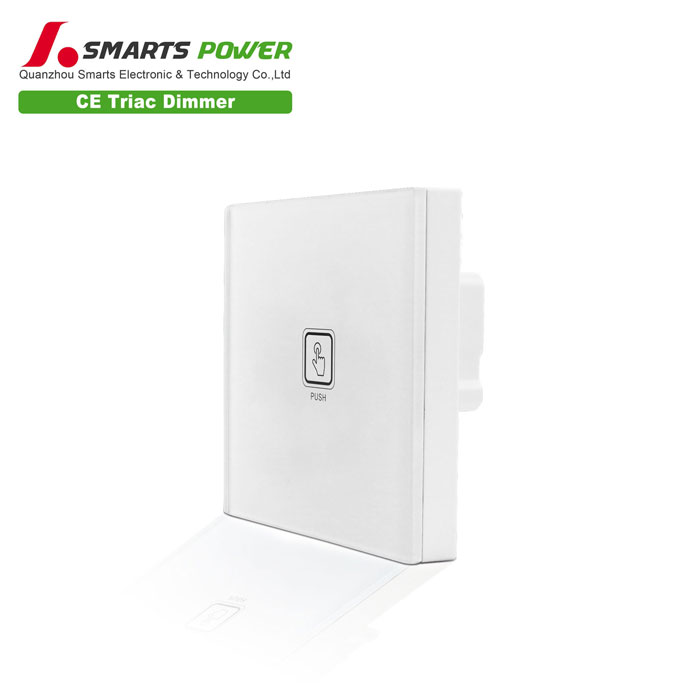

SMT250-T1 is triac switch dimmer. The imming operation is touch pannel with one touch botton. The input voltage range is 200-240VAC, the frequency is 50/60Hz. Working temp. is around -25-40℃. It is dimming well with coxotech's LED lighting.
Related Products

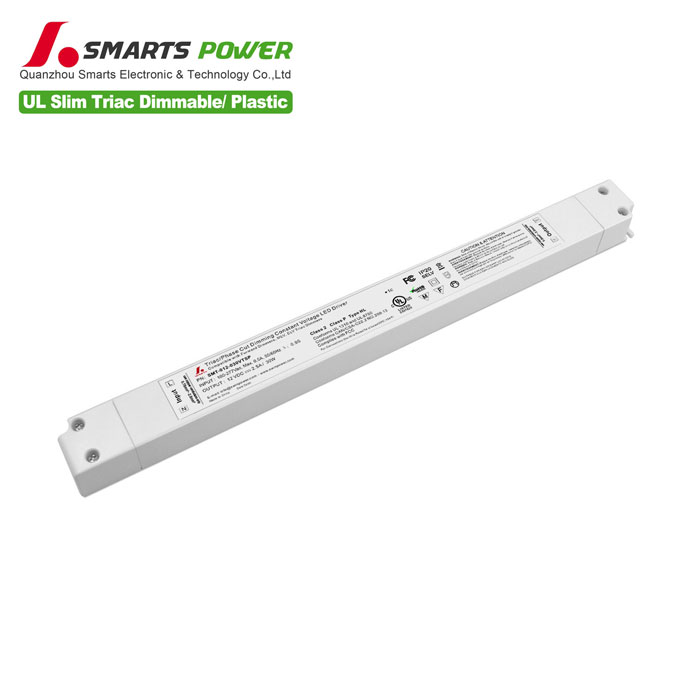

It is 12v 30w triac dimmable led driver. Super slim shape for some projects with narrow space to led driver, such as cabinet light or mirror light projects.
Mode:SMT-012-030VTSP |
