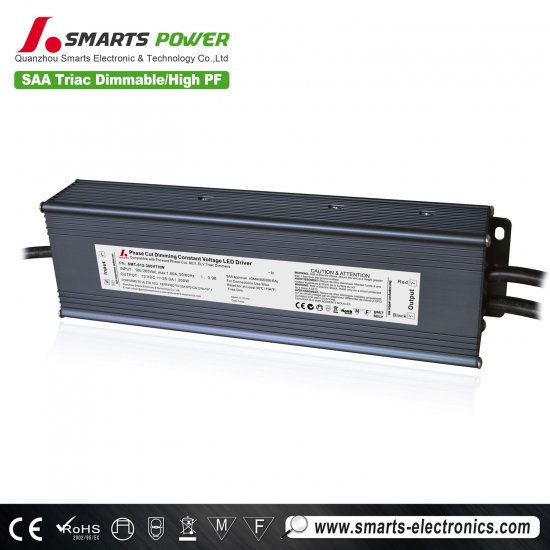

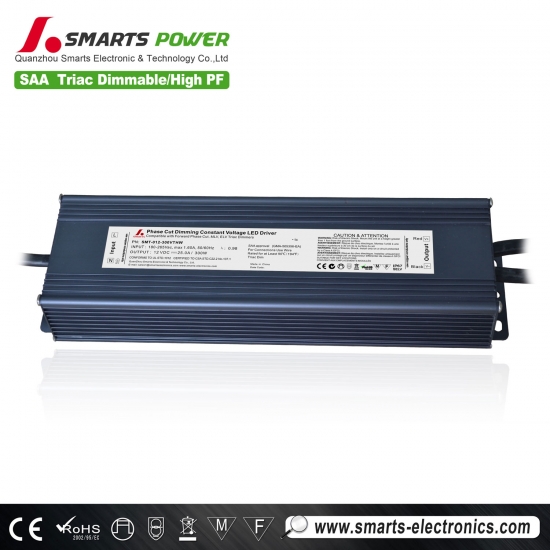

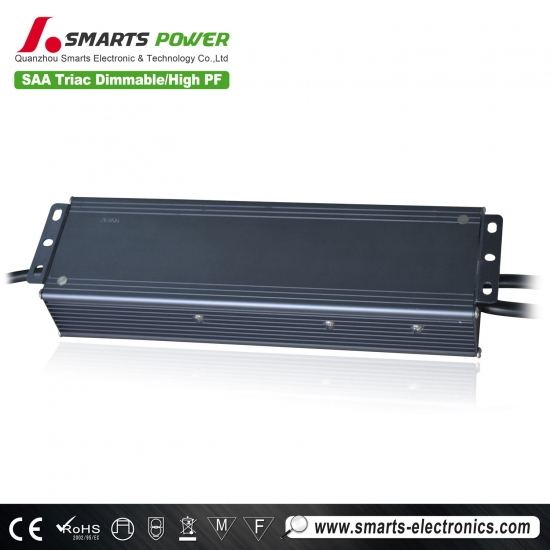

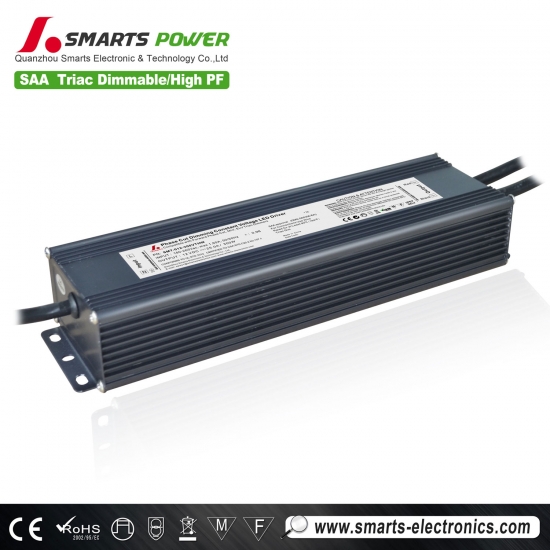

Waterproof Dimmable 12v LED Strip Bulb Transformer Mr16 Transformer Replacement

Model

SMT-012-300VTHW

SMT-024-300VTHW

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Voltage Tolerance

±0.5V

Load Regulation

±2%

±1%

±1%

Rated current

25.0A

12.5A

Rated power

300W

Input

Voltage Range

180-265VAC

Frequency Range

47~63HZ

Power Factor(Typ.)@ full load

0.98@180VAC  0.97@265VAC

0.98@180VAC  0.97@265VAC

THD(Typ.)@ full load

<20%

Inrush Current (Typ.)

20A, 50%, 1.4ms

Full Load

Efficiency(Typ.)

>83%

>83%

AC Current(Typ.)

3.4A@110VAC  1.74A

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over load

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over Current

≤1.4*I out

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes

Safety&EMC

Safety standards

SAA

Withstand voltage

I/P-O/P: 3.00KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to  FCC Part 15 B

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11(Surge 4KV)

Others

Weight

1.75Kg

Size

276*78*47mm (L*W*H)

packaging

10PCS/CTN  385*335*200mm    20PCS/CTN

Notes

Queation:What are the details of the 7 year warranty: Is it based on 7 years of actual use? We understand that some driver manufacturers have technology to keep track of hours of use. Or does the warranty start at point of sale and end 7 years after? Please explain details.

Answers:

The 7 years warranty start at the point of LED Driver leave our factory. There have manufacture date in back of every LED driver.

We use the best quality components for our 277vac dimmable series and the capacitances we used have the super life-span. We can promise 7 years warranty if loading 80% and within 12 hours working time per days.
