waterproof led driver,dimmable led transformer 12v

CE RoHS 220v 0-10v dimmable waterproof 80w 12v led driver

0-10v dimmable waterproof 80w 12v led driver；dimmable waterproof 80w 12v led driver；

item no.:
SMT-012-080VD
brand:
SMARTS
Input Voltage:
100-265V
Output Voltage:
80w
Output Current:
6.67A
Working Mode:
Constant Voltage
Certification:
CE ROHS
Warranty:
3 Years

inquiry now

product details

CE RoHS 220v 0-10v dimmable waterproof 80w 12v led driver

Features

High efficiency,save energy ,protected environment
Constant voltage design with high accuracy.
International wide input voltage.
output voltage 12v/24vselectable.
Wattage: 20w-200w.
High efficiency, save energy, protected environment.
High stability and low ripple, increase light efficiency and decrease light attenuation.
Meet to safety standard and EMC.
Assure LED stability long lift and light efficiency by constant voltage.
Cooling by free air convection.
100% full load burn-in test.
Brand electrotronic components.
ROHS material.
Suitable for LED lighting

Specification

Model		SMT-012-080VD		SMT-024-080VD
Output	DC Voltage	12V		24V
	Voltage Accuracy	±0.5V
	Rated current	0～6.67A		0～3.33A
	Rated power	80W
Input	Voltage Range	100-130VAC,170-265VAC
	Frequency Range	47～63HZ
	Power Factor ( Typ.）	PF≧0.90/110V; PF≧0.90/220V
	Full Load Efficiency（Typ.）	>88%	>88%
	AC Current（Typ.）	0.918A@110VAC	0.459A@220VAC
	Leakage current	﹤0.66mA/110VAC ; ﹤0.7mA/220VAC
Protection	Short Circuit	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over voltage	≦280VAC
	Over temperature	100℃±10℃ shut down o/p voltage, re-power on to recover
Environment	Working TEMP.	-40～+60℃
	Working Humidity	20～95%RH,non-condensing
	Storage TEM.,Humidity	-40～+80℃，10～95%RH
	TEMP.coefficient	±0.03%/℃（0～50℃）
	Vibration	10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
Safety&EMC	Safety standards	EN61347-1 EN61347-2-13.
	Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	Compliance toEN55015,EN61000-3-2 (≧50%load)
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
Others	Weight	1.1Kg
	Size	20068.545mm（LWH）
	packing	329279176mm/10pcs /CTN 2458058mm for inner box
	Notes	1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃ of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation .

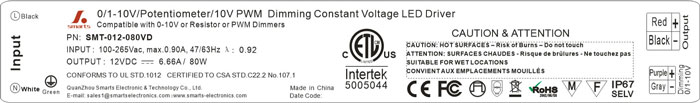

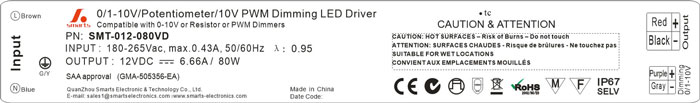

label

Applications

indoor LED illuminating lights
LED Neon
LED urban Decoration
LED Lighting Advertising
LED Display
Safety Protection Apparatus
Telecommunications, Networks
Vehicle Lights, Controller Panels
