ac to dc 12v 24v 200w led bulbs triac dimming transformers

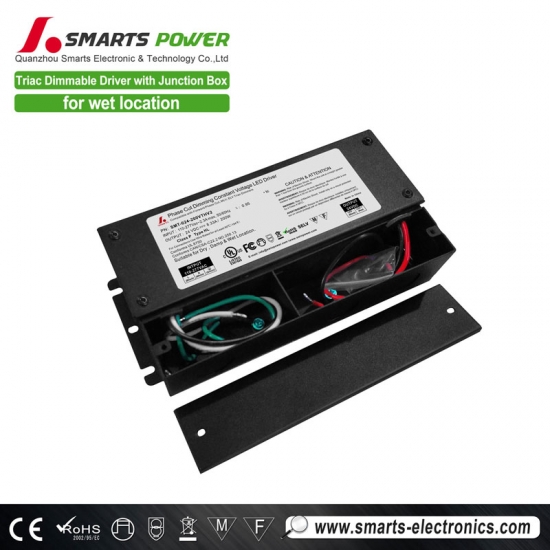

Smarts 12v 24v 200w triac dimming led lighting drivers suitable for dry, damp and wet locations, integrated junction box, Forward phase and reverse phase compatible, Dimmable with TRIAC, MLV, ELV PWM output with 10-100% load operation with Frame Light liner light used for offices.
Specification
Model

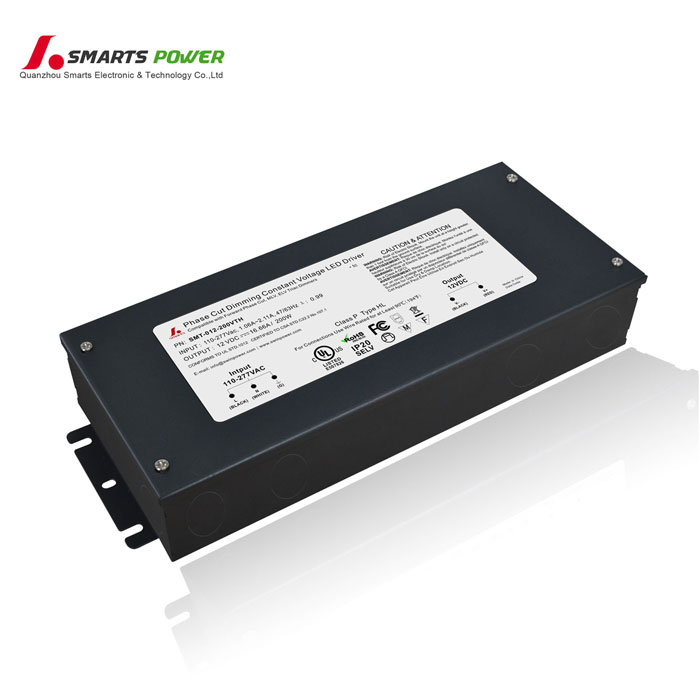

SMT-012-200VTH (1.0 version)
SMT-012-200VTHV2 (2.0 version)
SMT-012-200VTHWV2 (3.0 version)
SMT-024-200VTH(1.0 version)
SMT-024-200VTHV2 (2.0 version)
SMT-024-200VTHWV2 (3.0 version)
Output
DC Voltage
12V
24V
Rated Current
16.66A
8.33A
Rated Power
200W
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
±1%
Input
Voltage Range
110-277VAC
Frequency Range
47-63HZ
Power Factor(Typ.)@ full load
0.98@120VAC 0.97@277VAC
0.98@120VAC 0.95@277VAC
THD(Typ.)@ full load
<20%
Efficiency(Typ.)@ full load
83%
86%
AC Current(Max.)
2.3A@110VAC
Inrush Current (Typ.)
15A, 50%, 1.4ms
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90% RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
1.8Kg
Size
1.0 version: 260*103*46mm (L*W*H);

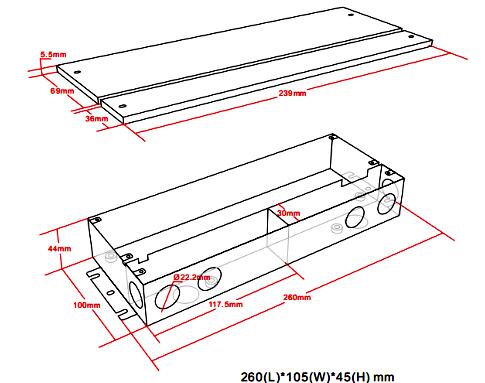

2.0 ver.: 260*105*45mm (L*W*H);3.0 ver.: 260*125*45mm (L*W*H);
packaging
10PCS/CTN Carton size: 385*335*200mm
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

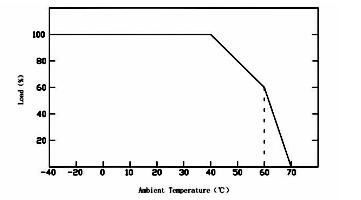

Derating Curve

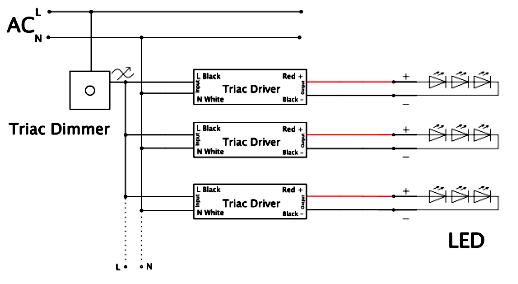

Application

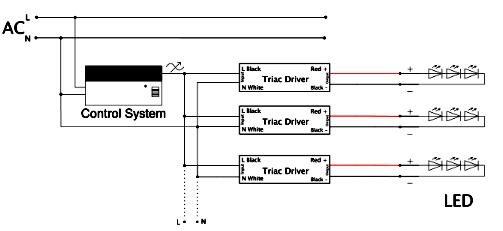

This triac dimming led lighting drivers is designed to work with any Triac or Low voltage Magnetic Dimmer and allows you to smoothly dim your LED Strips from 100% to 0% without any noise or flickering. it can be matched well with Frame Light liner light simplistic design.
Related Products
High power 12volt 200w dimmable led power supply for led liner, UL/cUL,FCC, listed, suitable for US and Canade market...
Mode：SMT-012-200VTH Output: 12vdc 16.67amp 200watt intput voltage：100-277VAC Size : 260*103*44.5mm Working mode: constant voltage dimming mode: triac dimmable CE,UL, RoHS,FCC, Class p ,type HL approval 7 years warranty |
