Non-dimmable LED Driver

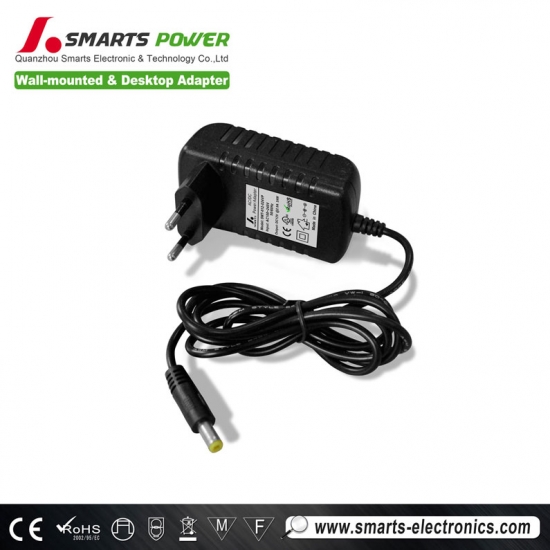

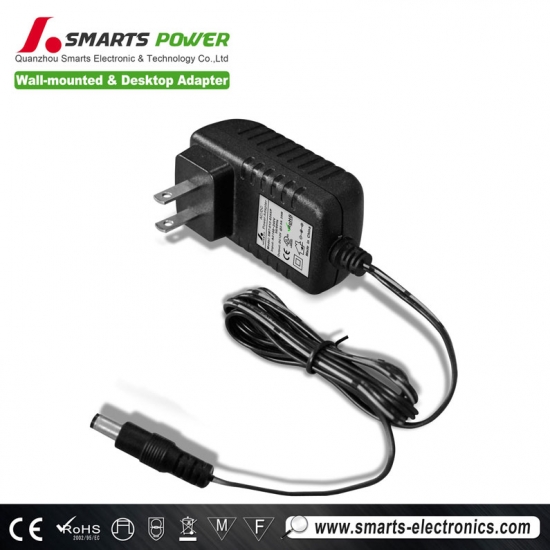

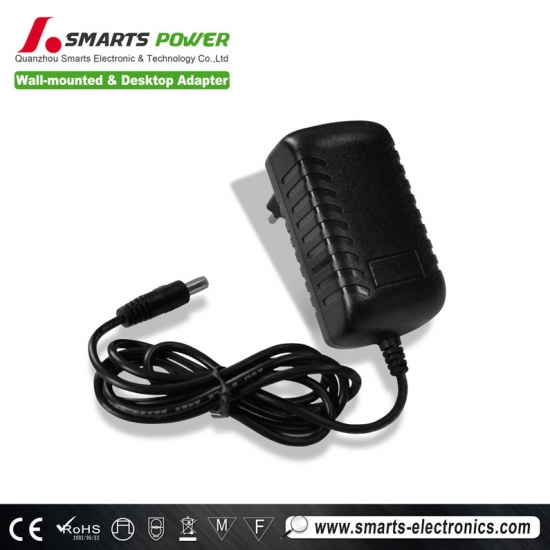

ac dc 24W power adapter 12VDC 2a with ce rohs approval

ac dc 24W power adapter 12VDC 2a with ce rohs approval
  • item no.:

    SMT-012-024VP
  • lead time:

    15 working days for 500pcs
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    T/T, Paypal, Western Union
inquiry now
product details

ac dc 24W power adapter 12VDC 2a with ce rohs approval

Specifications:

  • AC-DC power adapter
  • output: 12VDC,  24VDC
  • Low ripple&noise regulation
  • CE, and ROHS approval
  • 1.5 years warranty

Features:

  • Universal AC input: 100~240Vac
  • Protections: Short circuit / Overload
  • No load power consumption < 0.5W /Over voltage
  • 2 pins US / European/UK type plug
  • Fully enclosed plastic case
  • Class II power (without earth pin)

General Specification

  • AC inrush current (max.) ..............Cold start, <30A peak at 115VAC or <50A peak at 230VAC
  • Overload protection......................Hiccup mode, auto-recovery
  • Over voltage protection ...............Clamp by zener diode > 120%
  • Withstand voltage.........................I/P-O/P: 3KVAC, 1minute
  • Working temperature ................. -10°C~50°C @ 100% load, 50°C @ 70%
  • Safety standards........................ . EN61347-1-2,, CSA 22.2, TUV EN60950-1
  • EMC standards.......................... .. EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
  • Length of output cable ............ ....180cm of  18AWG or 120cm length
  • Standard DC plug....................... ..P1J: 2.1øx5.5øx10mm or 2.5øx5.5øx10mm /  -C+, turning fork type
  •                                                       Male or USB DC connector





Product certificates:






 ce rohs approval ac dc 24W power adapter 12V DC 2a /  24vDC  1a
