Non-dimmable LED Driver

12v 30w switching power adapter cctv camera adapter with CE ETL Rohs listed

12v 30w switching power adapter cctv camera adapter with CE ETL Rohs listed

  • item no.:

    SMT-012-030VP
  • lead time:

    about 7 working days for sample order
  • product orgin:

    china
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • market price:

    $1
  • Input Voltage:

    100~240vAC / 47-63Hz
  • Output Voltage:

    12vdc
  • Output Current:

    2.5a
  • Working Mode:

    constant voltage
  • Certification:

    CE ETL ROHS
  • Warranty:

    18 month
inquiry now
product details

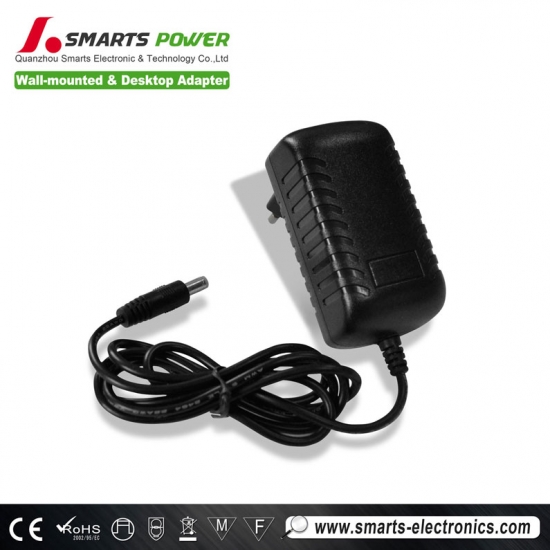

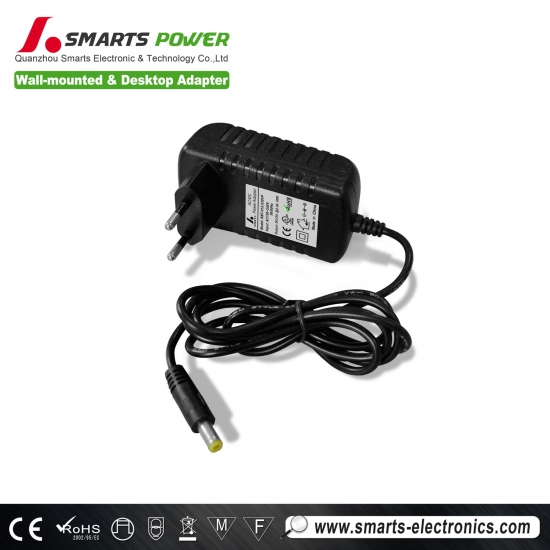

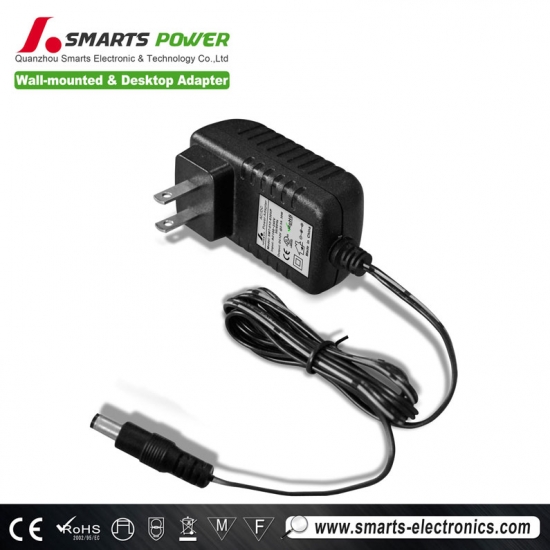

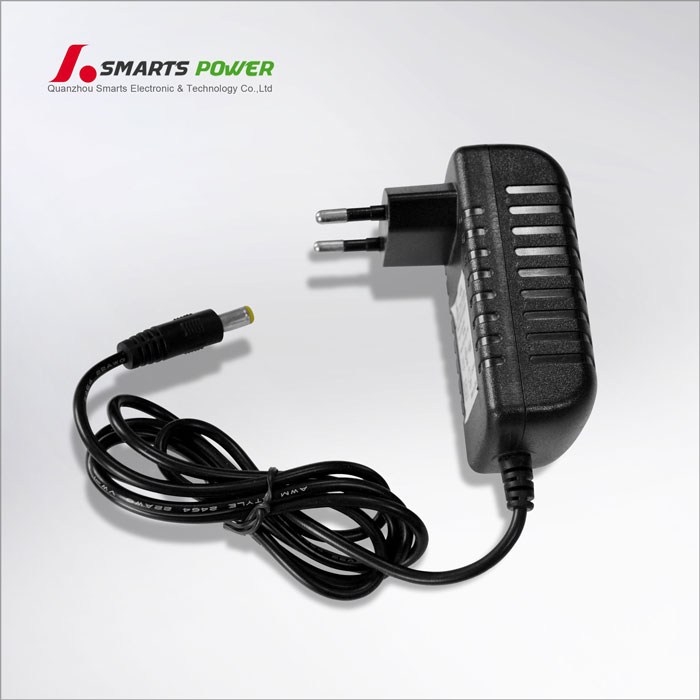

12v 30w switching power adapter cctv camera adapter with CE ETL Rohs listed


Product Description:

 Model No.  Input (Vac)  output (Vdc)  Current (Amp)  power (Watt)  Tol.   R&N   Effi.
 SMT-012-030VP  100-240V  12Vdc  2.5Amp   30W  ±4%  100mV  >82%
 SMT-024-030VP  100-240V  24Vdc  1.25Amp   30W  ±4%  100mV  >82%
  1. Modle: SMT-012-030VP
  2. Input:100~240vAC / 47-63HZ
  3. Output :12V @2.5A 30W
  4. Energy transfer: AC-DC
  5. RippleI & Noise (max.) : 150mVp-p
  6. Voltage Tolerance : ±5%
  7. Line Regulation : ±1%
  8. Load Regulation : ±2%
  9. Case material:  Plastic housing
  10. Waterproof rate:  IP20
  11. DC connector:5.5*2.1*10mm
  12. CE, ROHS approval
  13. DC cord:1.2m EU standard cord with male plug
  14. 18 months warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

2. INPUT REQUIREMENTS:

2.1 Operating range: 90-264VAC

2.2 Rated Input Voltage :100-240VAC

2.3 Input Frequency Range: 50/60Hz +/-3Hz

2.4 Input In-rush Current: 30A max

2.5 Input Current: 800mA max

power adapter



 RFQ

Q1.             What's type power supply do you have?

Answer:     We specialized in constant voltage & current LED drivers,

                   0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters



Q2.             What's the trade terms you can do??
Answer:     We accept EXW,FOB..(Optional)



Q3.             What's shipping mode can we choose?

Answer:     1.FedEx/DHL/UPS/TNT/Express for samples;

                   2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

                   3. Customers specifying freight forwarders or negotiable shipping method



Q4.             What's the MOQ?

Answer:     Our MOQ is 200pcs, but we accept your trail order/small order, no problem.



Q5.             What's the normal lead time??
Answer:     3-7 working days for samples, 12 working days for mass production.



Q6.              What's the payment conditon?
Answer:     T/T in advance or 30% deposit and 70% before delivery (optional)



Q7.            How do you provide the warranty? How to deal with defective product?

Answer:      Our defective rate is about 1‰-3, if you receive any defective product or any defective

                  happen during the warranty period, please collect them first, but we need pictures or video to prove                           the defective comes from our quality problem then we will send you new ones to replace them. If you                         need them urgently, we will send via DHL/UPS/FedEx; if not so urgently, we will send them on your                             next shipment.



Q8.             How about the protection of product?

Answer:     Most of our products have protection of short-circuit. overload,
                   over voltage, over current and reserve polarity. About the specific product,

                   please consult our salesstuff.



Q9.              How about the transportation?

Answer:      For small order,express will be best.And for bulk order,sea ship way is best but take much time.

                    For urgent orders,we suggest via air to airport plus our ship partner send to your door.

                    We will cooperate with your choice.



Q10.              What's the Payment do you have?

Answer:      To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,

                    WESTERN UNION, PAYPAL. More payment options will be added in the near future!
