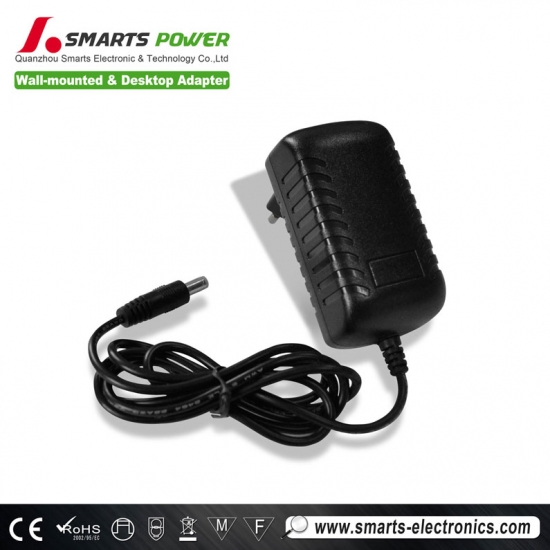

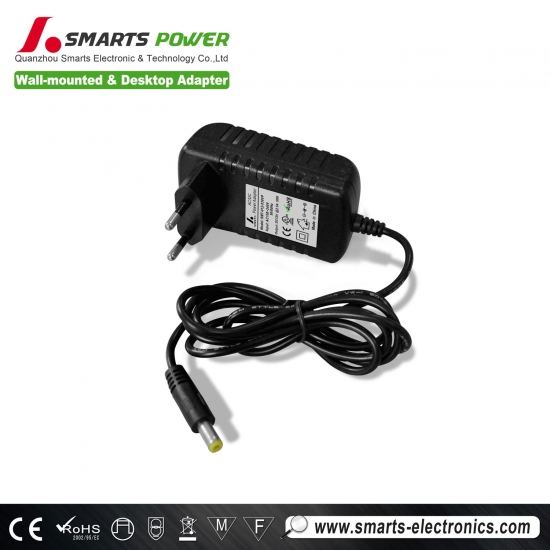

desktop type power Adapter 36W 100-240VAC 12VDC Power Supply
Description:
1. Input voltage.:100-240V AC
2. Efficiency>82%
3. output: 12V @ 2.5A 30W
4. AC cord: EU standard AC plug
5. DC cord: 1.2m EU standard cord with male plug
6. DC connector: 5.5x2.1x10mm
7. CE,ROHS approval
8. Warranty: 18 months
Features :
• Universal AC input: 100~240Vac
• Protections: Short circuit / Overload
• No load power consumption < 0.5W /Over voltage
• 2 pins US / European type plug
• Fully enclosed plastic case
• Class II power (without earth pin)
• Pass LPS
• Full output 3~48V safety approved
• 18 months warranty
(AC/DC Desktop type switching power adapter)
• Universal AC input/ Full range • Full output 12/24V safety approved
• No load power consumption < 0.3W • Protections: Short circuit Overload
• Pass energy star level IV (CEC) Over voltage
• US / EU / AU/ UK type plug • Fully enclosed plastic case
• Class I/ Class II power • 18 months warranty
General Specification:
Item No.:
SMT-012-030VP
SMT-024-030VP
AC input voltage range............100~240VAC / 2.5A for 40W; 100~240VAC input voltage
AC inrush current (max.) ........ Cold start, <25A peak at 115VAC or 45A peak at 230VAC
Overload protection..................Hiccup mode, auto-recovery
Over voltage protection........... Clamp by zener diode > 120%
Withstand voltage.................... I/P-O/P: 3KVAC, 1minute
Working temperature ..............-10°C~50°C @ 100% load, 50°C @ 70% load
Safety standards......................,CSA 22.2, TUV EN60950-1, CNS14336
EMC standards ..................... .. EN55022-B, EN61204-3, EN61000-3-2,3,
EN61000-4-2,3,4,5,6,8,11, FCC part15 class B,
CNS13438
Length of output cable ............ 180cm of 18AWG or 120cm length
Standard DC plug ................... Male or USB DC connector
We stock many types of ac to dc power adapter,including Desktop Type Power Adapter,12VDC Power Supply and Wall-mount power Adapter.
Application:
Our products are widely used in various industries, such as outdoor LED illuminating lights, LED Neon, LED City Decoration, LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.
