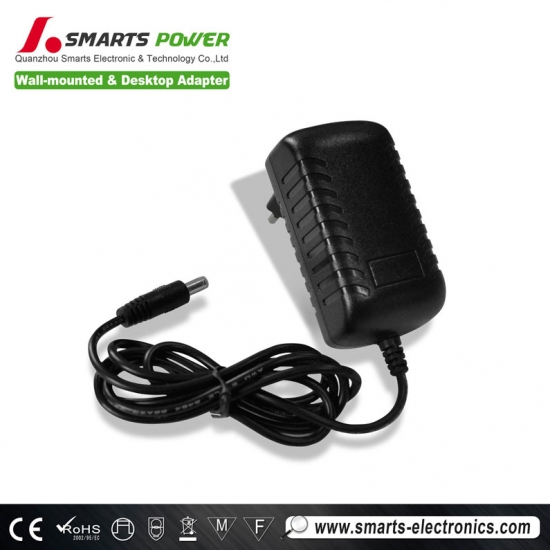

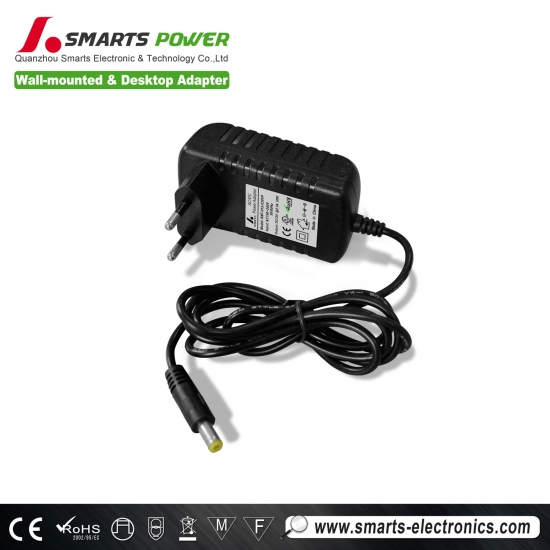

desktop type power Adapter 36W 100-240VAC 12VDC Power Supply
Description:
1. Input voltage.:100-240V AC
2. Efficiency>82%
3. output: 12V @ 3A 36W
4. AC cord: EU standard AC plug
5. DC cord: 1.2m EU standard cord with male plug
6. DC connector: 5.5x2.1x10mm
7. CE ROHS approval
8. Warranty: 18 months
Features :
• Universal AC input: 100~240Vac
• Protections: Short circuit / Overload
• No load power consumption < 0.5W /Over voltage
• 2 pole US / European type plug
• Fully enclosed plastic case
• Class II power (without earth pin)
• Pass LPS
• Full output 3~48V safety approved
• 18 months warranty
(AC/DC Desktop type switching power adapter)
• Universal AC input/ Full range • Full output 12/24V safety approved
• No load power consumption < 0.3W • Protections: Short circuit Overload
• Pass energy star level IV (CEC) Over voltage
• US / EU / AU/ UK type plug • Fully enclosed plastic case
• Class I/ Class II power • 18 months warranty
General Specification
Item No.:
SMT-012-036VP
SMT-024-036VP
AC input voltage range............100~240VAC / 3A for 36W; 100~240VAC / 1.5A for 36W
AC inrush current (max.) ........ Cold start, <25A peak at 115VAC or 45A peak at 230VAC
Overload protection..................Hiccup mode, auto-recovery
Over voltage protection........... Clamp by zener diode > 120%
Withstand voltage.................... I/P-O/P: 3KVAC, 1minute
Working temperature ..............-10°C~50°C @ 100% load, 50°C @ 70% load
Safety standards...................... CSA 22.2, TUV EN60950-1, CNS14336
EMC standards ..................... .. EN55022-B, EN61204-3, EN61000-3-2,3,
EN61000-4-2,3,4,5,6,8,11, FCC part15 class B,
CNS13438
Length of output cable ............180cm of 18AWG or 120cm length
Standard DC plug ................... Male or USB DC connector
