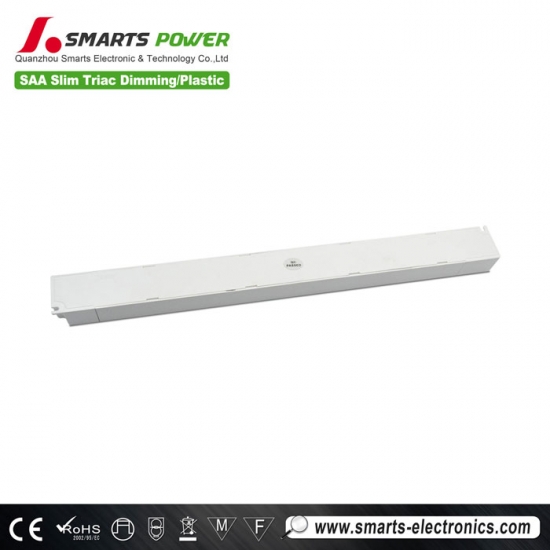

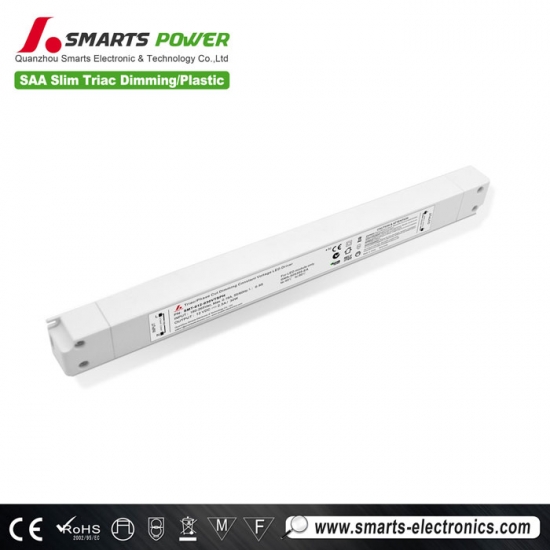

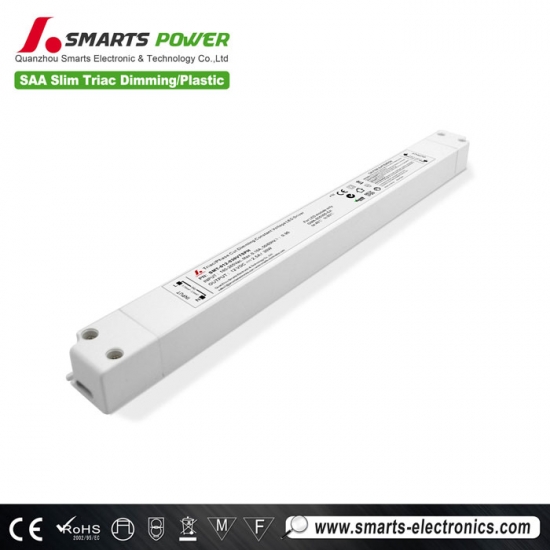

24v 30w triac dimmable led driver is our SAA,C-TICK, RCM list slim size plastic IP20 dimmable led driver ,we give 7 years warranty.and it is 100% full load burn-in test,passed high,low temperature and waterproof testing
|
model |
SMT-012-030VTSPH |
SMT-024-030VTSPH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±1% ±1% |
|
|
Input |
Voltage Range |
180-265VAC |
|
|
|
Frequency Range |
47~63HZ |
|
|
|
Power Factor ( Typ.) |
PF>0.99/180V ; PF.>98/265V |
|
|
|
Full Load Efficiency(Typ.) |
>79% |
>81% |
|
|
AC Current(Typ.) |
0.5A/180VAC / 0.13A/265VAC |
|
|
|
Inrush Current(Typ.) |
7A, 50%, 420us |
|
|
|
Leakage current |
0.27mA/180VAC; 0.25mA/265VAC |
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
|
Over Loading |
120% shut down o/p voltage, re-power on to recover |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
|
Working Humidity |
20~90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
|
|
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
| Label |
 |
||
 |
 |
 |
 |
 |
|

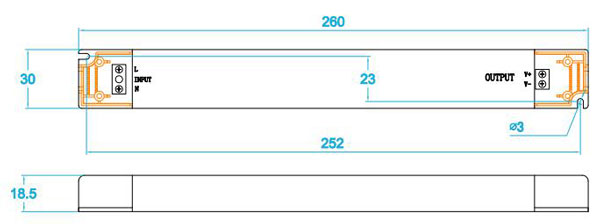

Mechanical Specification
Ø Output terminals "Red" to LED Positive side (+) and "Black" to LED Negative side (-).
Dimming Operation
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
※Please try to use dimmers with power at least 1.5 times as the output power of the driver.

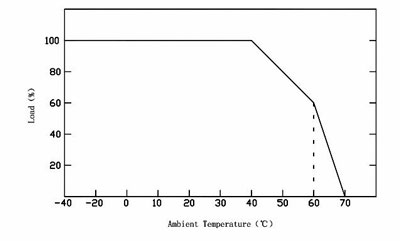

Derating Curve
what is the HS code for this Power supply
Answer: HS code is 8504401400.
