this 12v lighting power supply is wattage of 30 watt, and its able to work and use in indoor/outdoor led constant voltage lights like LED strips, led modules. its with triac dimmable and no minimum load limiation. this model is 180-265vac for EU input voltage range use.
Specification of 12v 30w waterproof led driver
|
model |
SMT-012-030VTSWH |
SMT-024-030VTSWH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% |
||
|
Input |
Voltage Range |
180-265 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.98/220V |
||
|
Full Load Efficiency（Typ.） |
>79% |
>81% |
|
|
AC Current（Typ.） |
0.13A/220VAcC |
||
|
Inrush Current（Typ.） |
7A, 50%, 420us |
||
|
Leakage current |
﹤0.25mA/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|

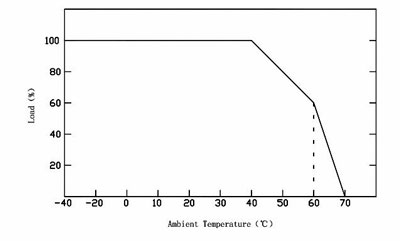

Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
SAA C-TICK RCM | |
|
Withstand voltage |
I/P-O/P:2KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, Alight industry level |
||
|
Others |
Weight |
0.35Kg |
|
|
Size |
260*32*20mm (L*W*H) |
||
|
packing |
50PCS/CTN |
||
|
Notes |
1. In the diagram spec sheet it show the dimmer on the N (neutral)? Normally Triac the dimmer is on the L Line?
Answer: Dimmer can be connected on the N (neutral) or on the L (Line). Depending on you. |
||
| Label |
 |
||
 |
 |
 |
 |
Dimension
※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output: Red is（DIM+）,Black is（DIM-）
Dimming Operation
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
※Please try to use dimmers with power at least 1.5 times as the output power of the driver.
