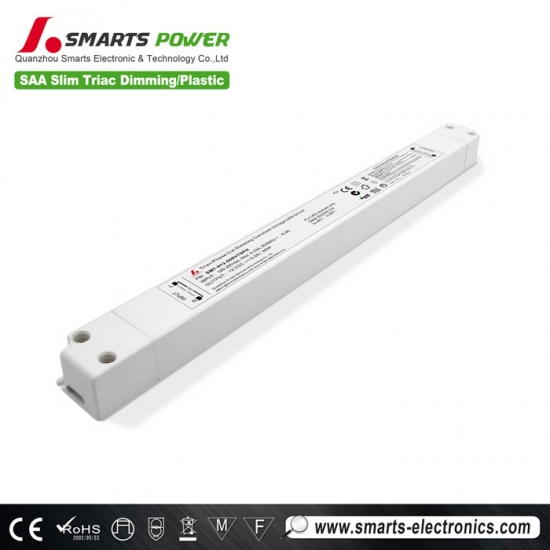

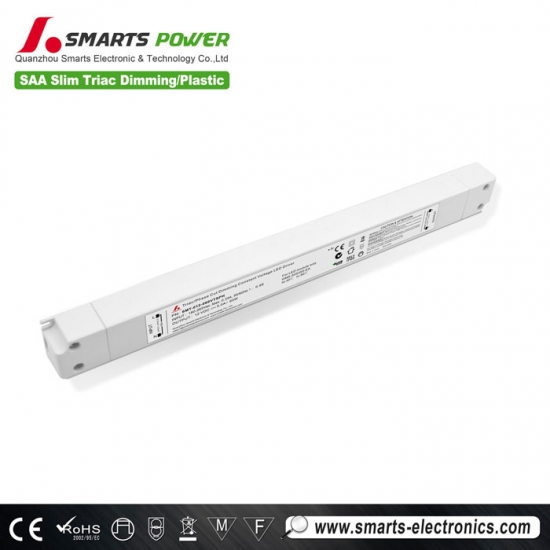

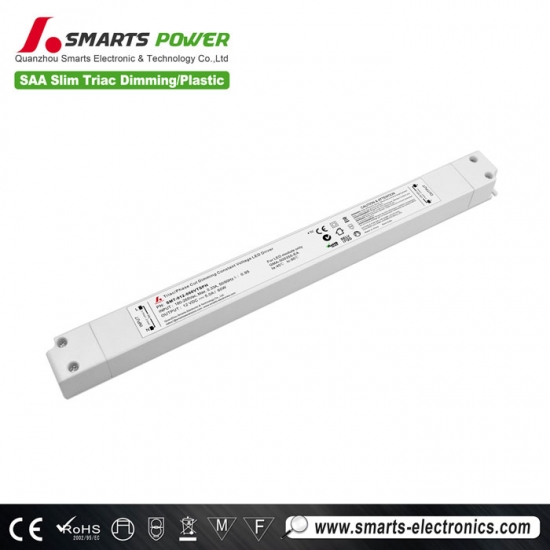

This is ultra thin led driver which Input voltage range is 180-265VAC. It is SAA C-TICK RCM listed and the outer case is plastic housing. IP20 design for indoor dry or damp environment
installations.
Features
·Output constant voltage type
·Input voltage range 180-265VAC
·SAA C-TICK RCM approval
·Built-in PFC function / Efficiency > 80% / PF> 0.99
·Dimming range: 0~100% / load:10~100%
·Protections:short circuit/over voltage/over heat
·IP20 design for indoor dry or damp environment installations
·Cooling by free air convection
·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·PWM output, does not change the color index
·Plastic housing,IP20 rate for dry or damp location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification
|
model |
SMT-012-060VTSPH |
SMT-024-060VTSPH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
5.0Amp |
2.5Amp |
|
|
Rated power |
60W |
60W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
180-265VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.99/180V ; PF≧0.98/265V |
||
|
Full Load Efficiency（Typ.） |
>83% |
>84% |
|
|
AC Current（Typ.） |
0.5A/180VAC / 0.13A/265VAC |
||
|
Inrush Current（Typ.） |
6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC |
||
|
Leakage current |
<0.74mA/180VAC; ﹤0.25mA/265VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
SAA C-TICK RCM |
|
|
Withstand voltage |
I/P-O/P: 2KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.45Kg |
|
|
Size |
300*32*20mm (L*W*H) |
||
|
packing |
50PCS/CTN
|
||
|
Notes |
1. Can we make our company information on the label? Answer: --As per the policy of ETL/UL, we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble.. --If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.What is your opinion?
|
||
|
Label |
 |
||
 |
 |
 |
 |
 |
|

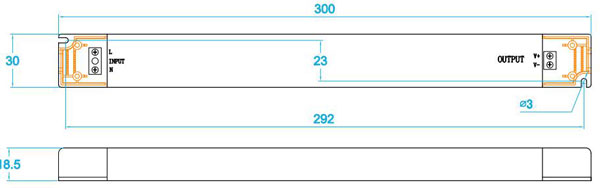

Mechanical Specification
² Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
² Output: Red is（Possitive side +）,Black is（Negitive side -）
Dimming Operation
² Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
² Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
² Please try to use dimmers with power at least 1.5 times as the output power of the driver.

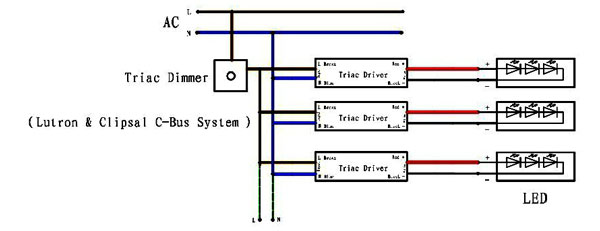

Connecting Diagram

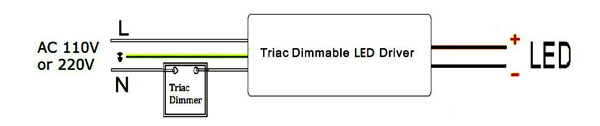

Simple Connection Diagram
