Specification
|
Model |
SMT-012-060VD |
SMT-024-060VD |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
|||
|
Rated current |
0～5.0A |
0～2.5A |
||
|
Rated power |
60W |
|||
|
Input |
Voltage Range |
AC100～130V / AC170~265V |
||
|
Frequency Range |
47～63HZ |
|||
|
Power Factor ( Typ.） |
PF≧0.90/110V; PF≧0.90/220V |
|||
|
Full Load Efficiency（Typ.） |
>88% |
>88% |
||
|
AC Current（Typ.） |
0.689A@110VAC |
0.344A@220VAC |
||
|
Leakage current |
﹤0.66mA/110VAC ; ﹤0.7mA/220VAC |
|||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||
|
Over voltage |
≦280VAC |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|||
|
Environment |
Working TEMP. |
-40～+60℃ |
||
|
Working Humidity |
20～95%RH,non-condensing |
|||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. |
||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
|||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
|||
|
Others |
Weight |
1.1Kg |
||
|
Size |
200*68.5*45mm（L*W*H） |
|||
|
packing |
329*279*176mm/10pcs /CTN 245*80*58mm for inner box |
|||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/220VAC input , rated load and 25℃ of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||

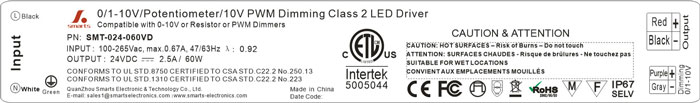

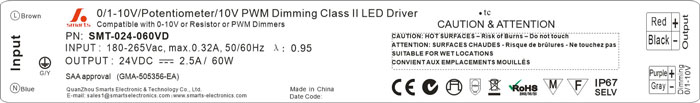

| Label |
|
|||
 |
 |
 |
 |
Features
High efficiency,save energy ,protected environment
Constant voltage design with high accuracy.
International wide input voltage.
output voltage 12v/24vselectable.
Wattage: 20w-200w.
High efficiency, save energy, protected environment.
High stability and low ripple, increase light efficiency and decrease light attenuation.
Meet to safety standard and EMC.
Assure LED stability long lift and light efficiency by constant voltage.
Cooling by free air convection.
100% full load burn-in test.
Brand electrotronic components.
ROHS material.
Suitable for LED lighting
Applications
Indoor LED illuminating lights
LED Neon, LED urban Decoration
LED Lighting Advertising,LED Display
Safety Protection Apparatus
Telecommunications, Networks
Vehicle Lights, Controller Panels
