200w 24v dimmable junction box led driver for high power led driving lights

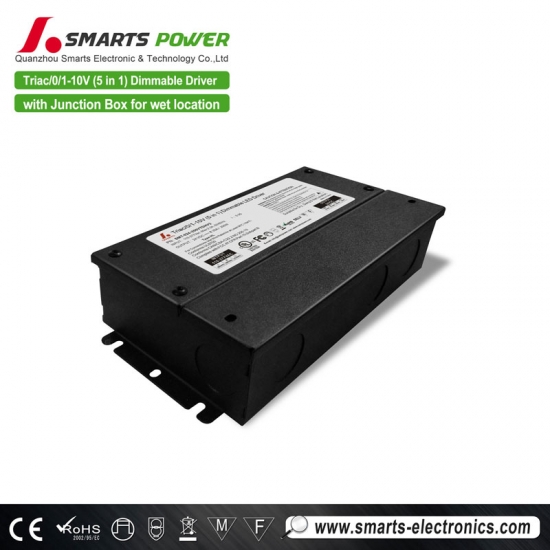

200w 24vdc power supply for led lights, Flat and compact aluminum outer housing is easy to conceal, It is safer and easier to work well with Brighter Nights Pool Enclosure Lighting 150w.
Specification
model
SMT-012-200VTDHV2 (1.0 version)
SMT-012-200VTDHWV2 (2.0 version)
SMT-024-200VTDHV2 (1.0 version)
SMT-024-200VTDHWV2 (2.0 version)
Output
DC Voltage
12V
24V
Rated Current
16.67A
8.33A
Rated Power
200W
200W
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
±1%
Input
Voltage Range
110-277VAC
Frequency Range
47-63Hz
Power Factor @ full load
0.98@120VAC 0.97@277VAC
0.98@120VAC 0.95@277VAC
THD(Typ.)@ full load
<20%
Efficiency @ full load
83% @120Vac 87%@277Vac
79%
86% @120Vac 88%@277Vac
AC Current(Max.)
2.3A@100Vac
Inrush Current (Typ.)
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
Leakage current
<0.50mA
protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90%RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
About 1.8Kg
Size
1.0 version: 260*105*45mm / 2.0 version: 260*125*45mm
packing
10PCS/CTN
(L*W*H)
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |

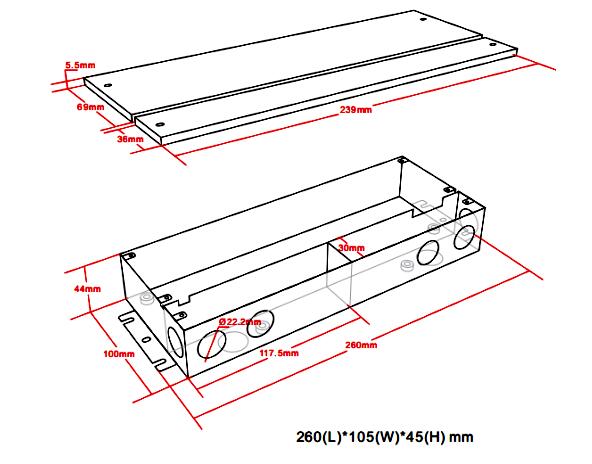

Mechanical Specification
Derating Curve
Application

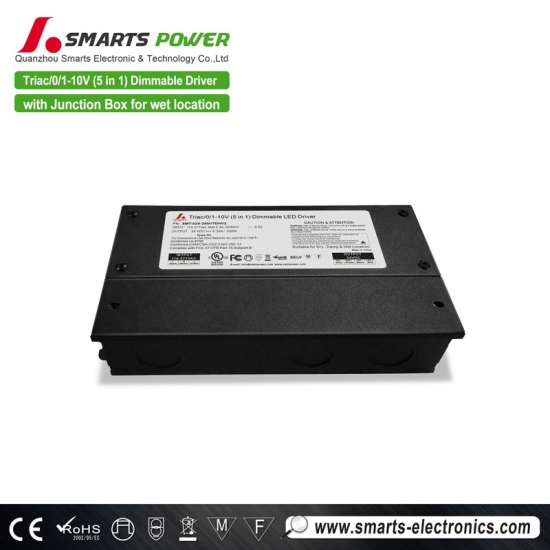

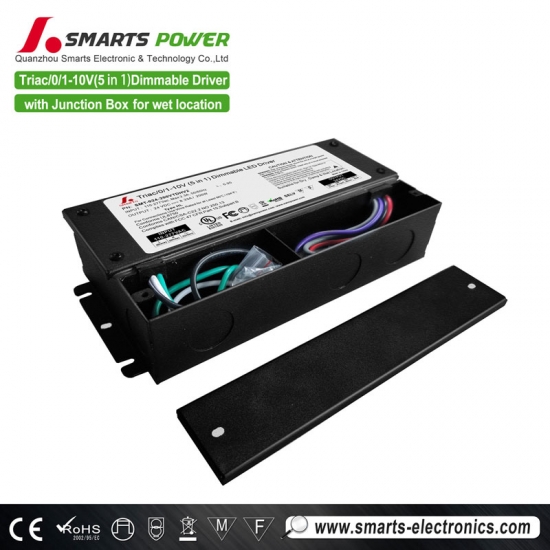

SMT-024-200VTDHV2 is 200w high power led driving lights, which is encased in a low profile aluminum enclosure that includes 2 knock-outs to make it easily install to Brighter Nights Pool Enclosure Lighting 24v.
Related Products
High power 12v 200w led power supply for led strip, suit for dry, damp location, with High PF>0.98 & High efficiency>87%...

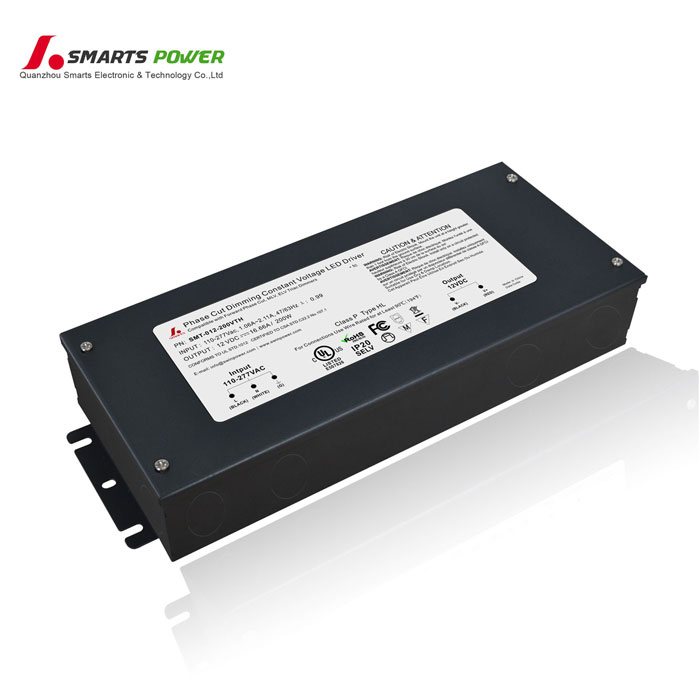

Mode：SMT-012-200VTH Output: 12vdc 16.67amp 200watt intput voltage：100-277VAC Size : 278*108*46mm Working mode: constant voltage dimming mode: triac dimmable CE,UL, RoHS,FCC, Class p ,type HL approval 7 years warranty |
