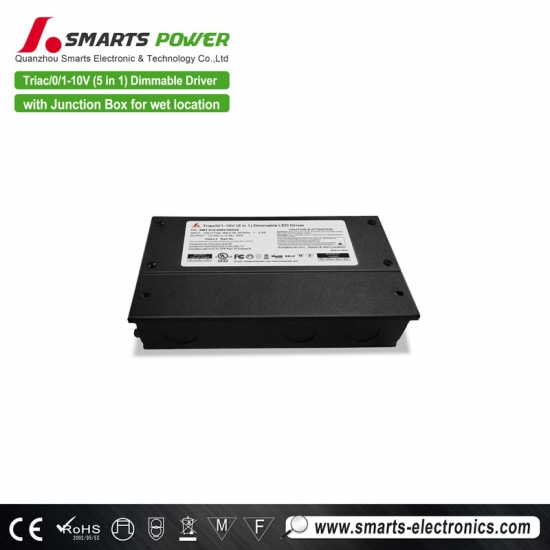

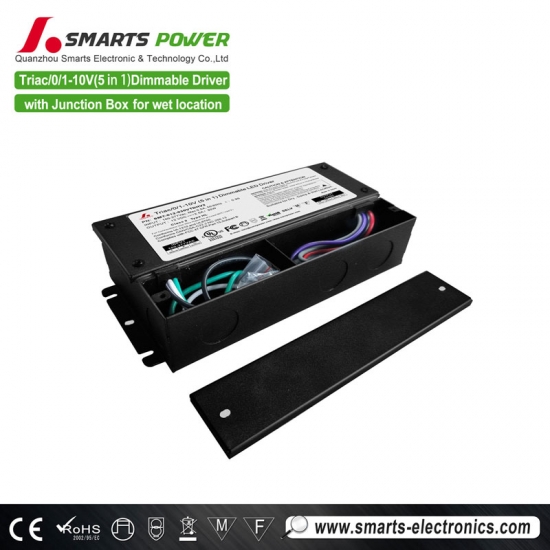

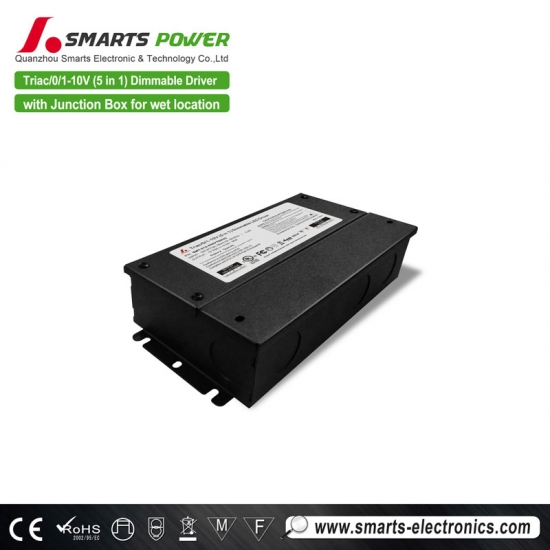

UL triac and 0-10v dimming mode 12v 30w led power supply junction box
Specification
The led driver triac meet Class 2 Class P type HL standard with valid certificates. Hope you can give preference to it because it performs well in triac and 0 10v dimming mode. AQ lighting waterproof diimmable LED Tape Light 12v 24v is optional.
|
model |
SMT-012-030VTDHV2 |
SMT-024-030VTDHV2 |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
RatedCurrent |
2.5A |
1.25A |
||
|
RatedPower |
30W |
30W |
||
|
Voltage Tolerance |
±0.5V |
|||
|
Voltage Regulation |
±0.5% |
|||
|
Load Regulation |
±1% |
|||
|
Input |
Voltage Range |
100-277VAC |
||
|
Frequency Range |
47-63Hz |
|||
|
Power Factor(Typ.)@ full load |
0.99@120VAC 0.98@277VAC |
0.99@120VAC 0.95@277VAC |
||
|
THD（Typ.）@ full load |
<20% |
|||
|
Efficiency（Typ.）@ full load |
79% @120Vac 80%@277Vac |
79% @120Vac 80%@277Vac |
||
|
AC Current（Max.） |
0.5A@100Vac |
|||
|
Inrush Current（Typ.） |
7A, 50%, 420us @120Vac 12A, 50%, 480us @277Vac |
|||
|
Leakage current |
<0.50mA |
|||
|
protection |
Working TEMP. |
-40～+60℃ (see below derating curve) |
||
|
Working Humidity |
20～90%RH, non-condensing |
|||
|
Storage TEMP. Humidity |
-40～+80℃，10～95%RH |
|||
|
Environment |
TEMP .coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|||
|
Safety standards |
UL8750+UL1310 |
|||
|
Withstand voltage |
I/P-O/P:1.88KVAC |
|||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
Safety&EMC |
EMC EMISSION |
FCC Part 15 B |
||
|
Working TEMP. |
-40～+60℃ (see below derating curve) |
|||
|
Working Humidity |
20～90%RH, non-condensing |
|||
|
Storage TEMP. Humidity |
-40～+80℃，10～95%RH |
|||
|
Others |
Weight |
About 0.95Kg |
||
|
Size |
165*94.5*40mm （L*W*H） |
|||
|
packing |
10PCS/CTN（L*W*H） |
|||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
|||
 |
 |
 |
 |

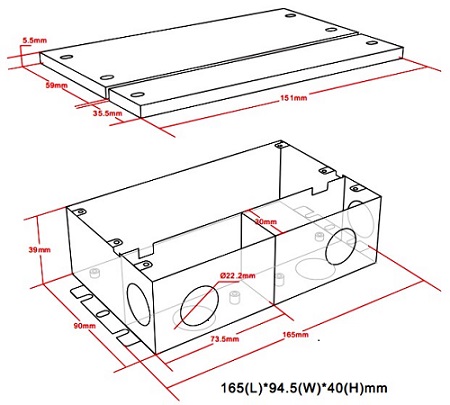

■ Mechanical Specification
l Input wire Black and White to be connected to AC L and N ,Green wire go ground.
l Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
l Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-) .
l Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
■ Connecting Diagram

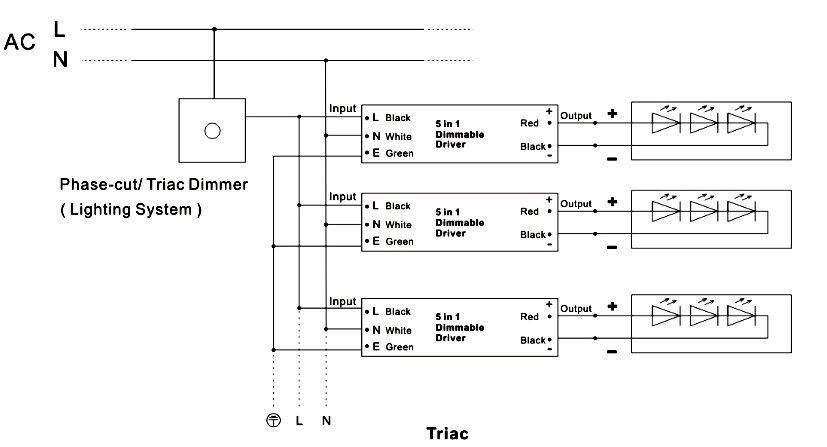

Ø Using TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.

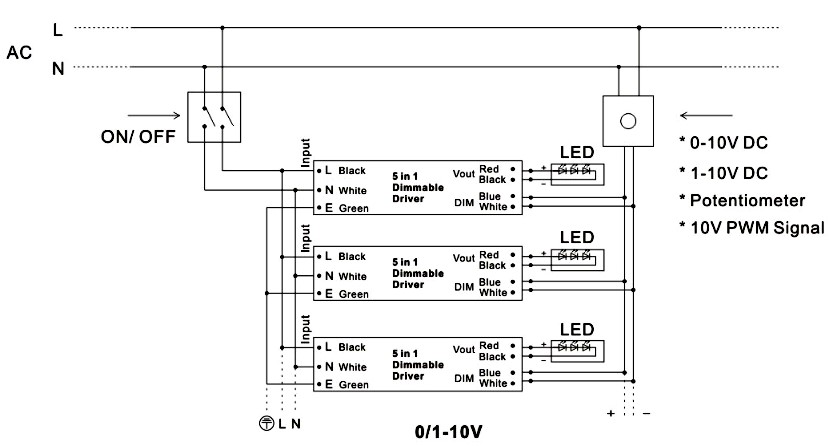

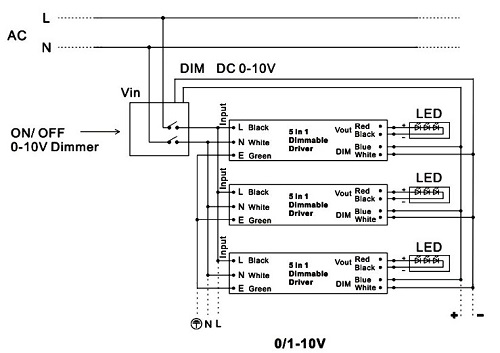

Ø Using 0-10/1-10V dimming

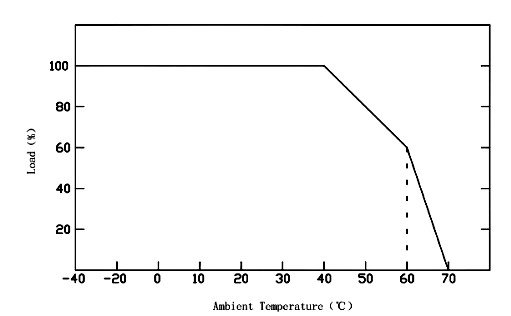

■Derating Curve
l To extend their life, please refer to the Derating Curve and derate according to the temperature.
■ Instruction:
l This driver should be installed by qualified and professional person;
l Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
l Ensure that wiring is correct before test in order to avoid light and power supply damage;
l If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall: 0086-18016688251
Our official website: www.smarts-electronics.com or www.swinpower.com
Compatible Dimmer Type
Related Products
|

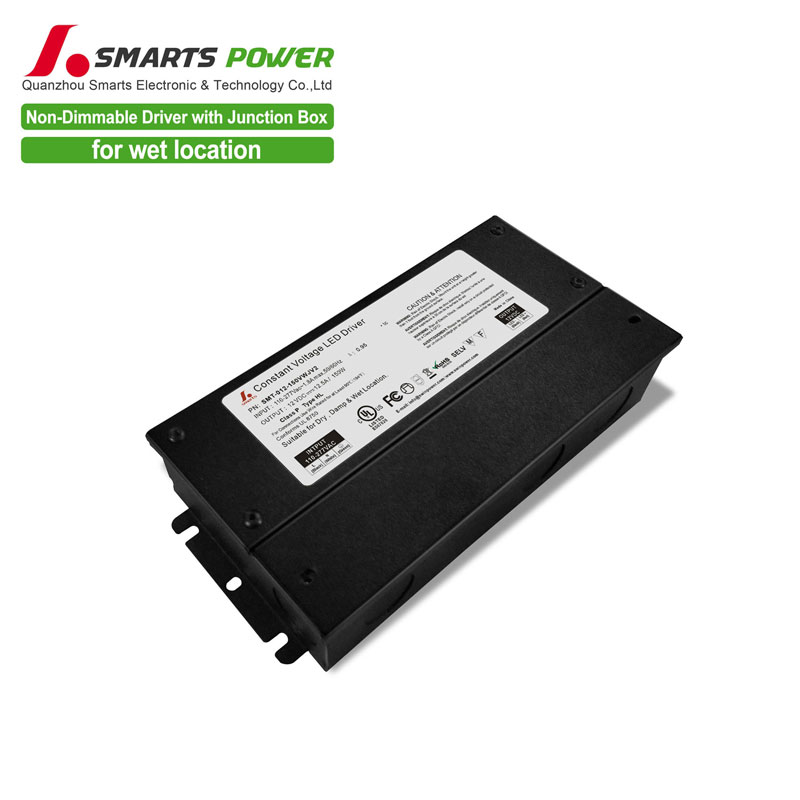

This led power supply junction box is non dimmable type.12vdc with high power voltage 150watt. Given 7 years warranty.UL approval with high effeiency.
