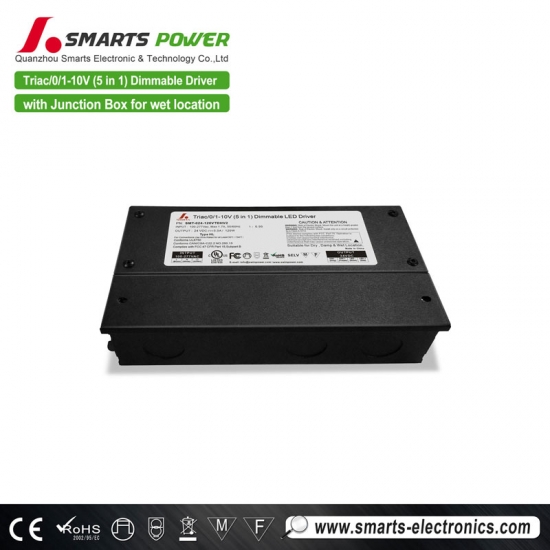

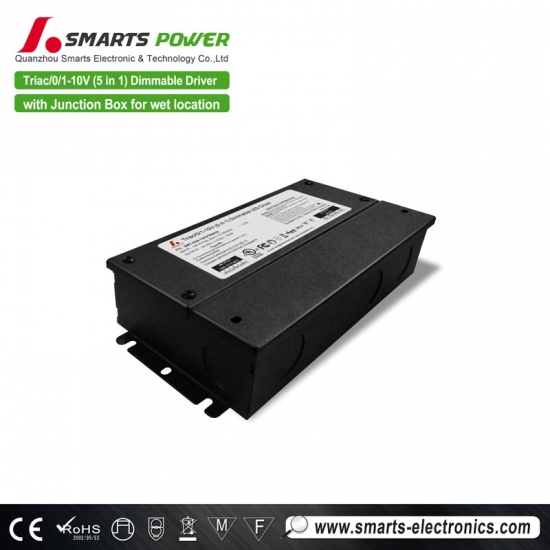

24v 120w 0-10v triac dimmable led strip outdoor driver

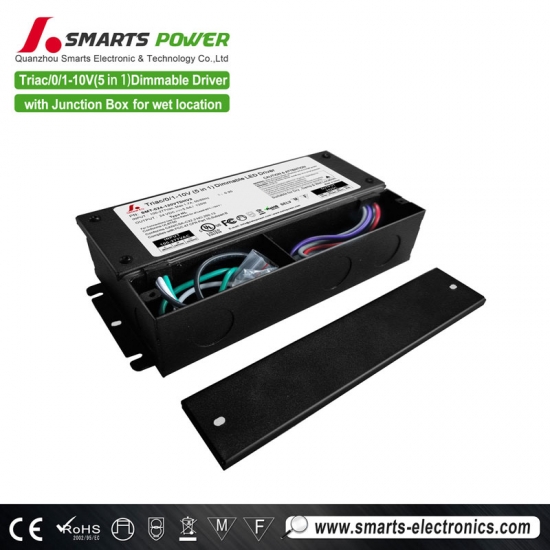

Our SMT-024-120VTDHV2 is 24v led strip driver, suitable for powering a wide range of LED strip and linear lighting products. such as Led Lighting Inc low voltage Tapelight IP65. This Dimmable LED Driver features an integrated wiring compartment, allowing one to make clean connections inside of the led driver with no need for external junction boxes.
Specification
model
SMT-012-120VTDHV2
SMT-024-120VTDHV2
Output
DC Voltage
12V
24V
Voltage Regulation
±0.5%
Rated current
10.0A
5.0A
Voltage Tolerance
±0.5V
Load Regulation
±2%
±1%
±2%
Rated power
120W
120W
Input
Voltage Range
100-277VAC
Frequency Range
47-63Hz
Power Factor@ full load
0.99@120VAC 0.96@277VAC
0.98@120VAC 0.95@277VAC
THD(Typ.)@ full load
<20%
Efficiency(Typ.)@ full load
82% @120Vac 83%@277Vac
79%
82% @120Vac 84%@277Vac
AC Current(Max.)
1.7A@100Vac
Inrush Current (Typ.)
20A, 50%, 1.6ms @120Vac 25A, 50%, 1.2m,s @277Vac
Leakage current
<0.50mA
protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90%RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
About 1.3Kg
Size
220*94.5*40mm (L*W*H)
packing
10PCS/CTN
(L*W*H)
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |

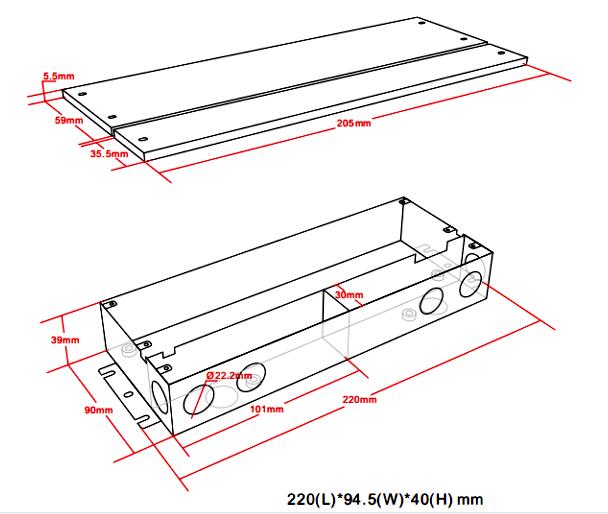

Mechanical Specification
Derating Curve
Application
SMT-024-120VTDHV2 is 24v 120w dimmable led panel driver, suitable for powering a wide range of Led Lighting Inc low voltage Tapelight 60 ft. It can be used with triac/0-10v dimmers.
Related Products

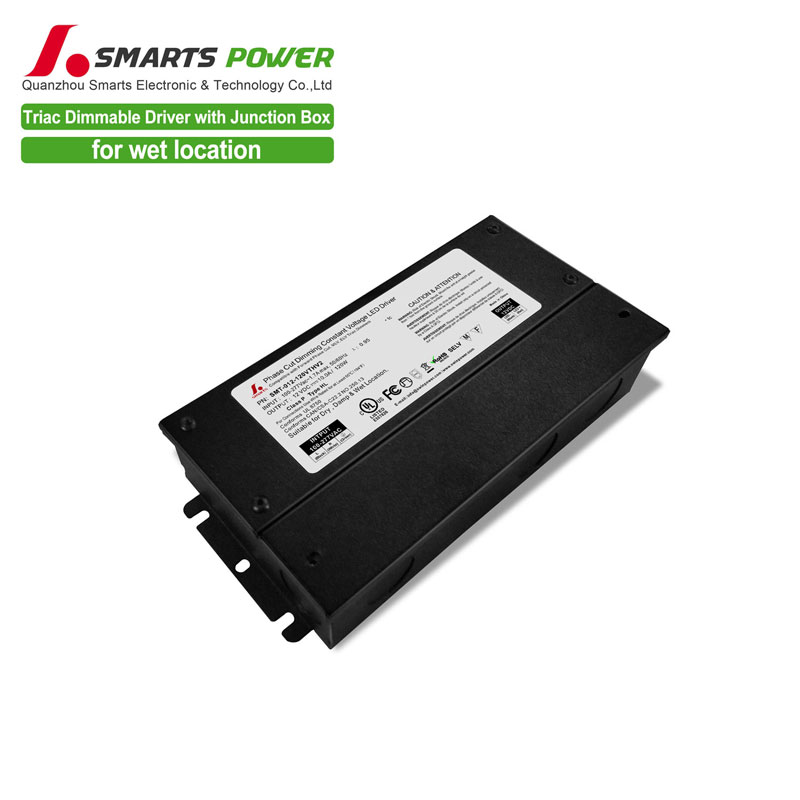

12V 24V 120W led strip light driver triac dimming 7 years warranty for dry, damp& wet location..
Mode：SMT-012-120VTHV2 Output: 12vdc 10.0amp 120watt intput voltage：100-277VAC Size : 220*94.5*40mm Working mode: constant voltage dimming mode: triac dimmable CE,UL, RoHS,FCC, Class p ,type HL approval 7 years warranty |
