12v 200w led power supply driver dimmable 277 volt constant voltage

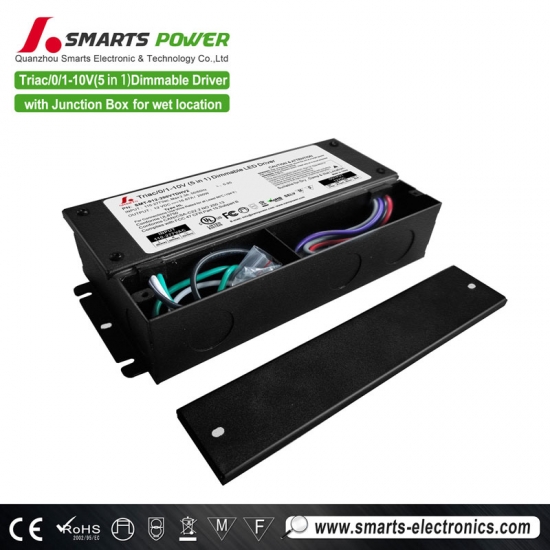

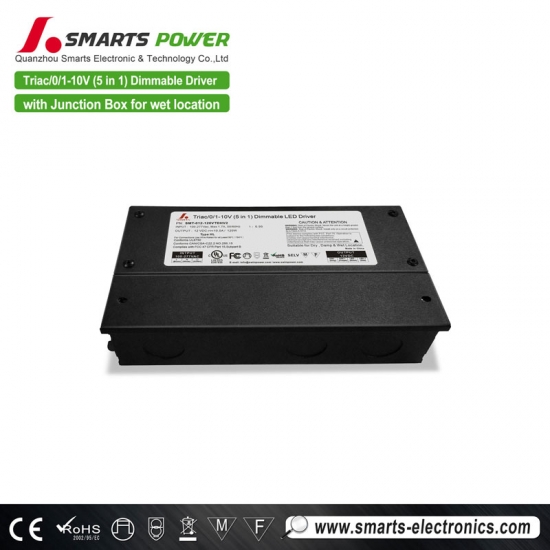

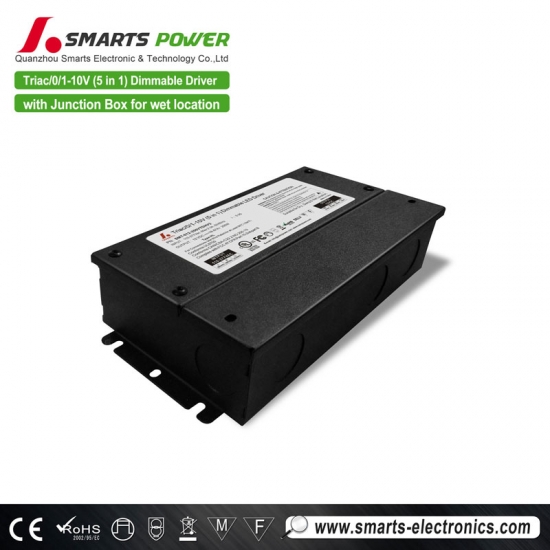

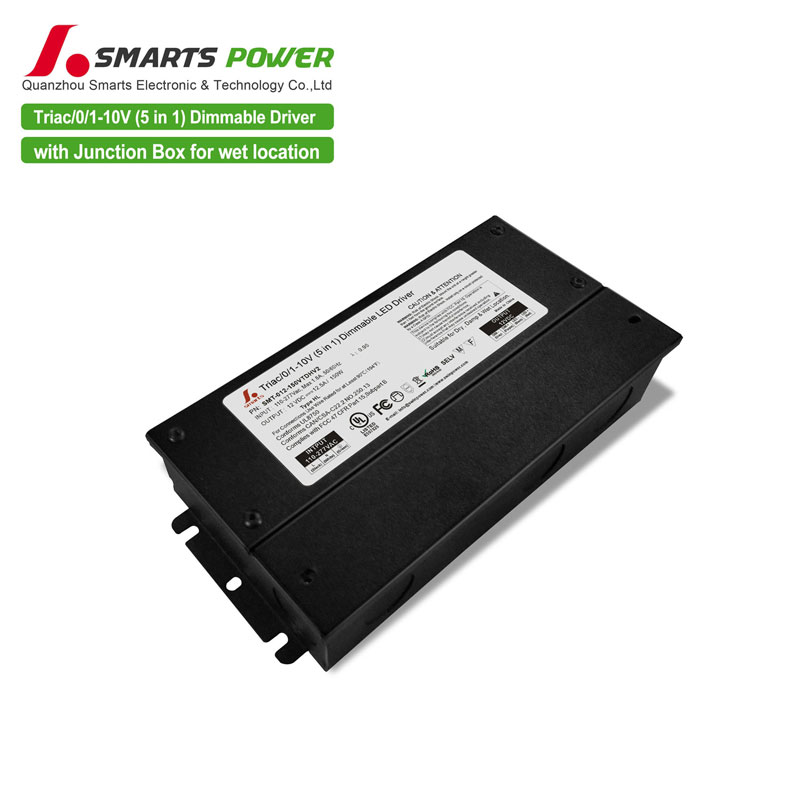

12V 200 watt led power supply PWM dimming enclosed dimmable driver to be used with Nora Lighting’s 12V LED standard tape light and 12V LED Puck Light.
Product parameters
model
SMT-012-200VTDHV2 (1.0 version)
SMT-012-200VTDHWV2 (2.0 version)
SMT-024-200VTDHV2 (1.0 version)
SMT-024-200VTDHWV2 (2.0 version)
Output
DC Voltage
12V
24V
Rated Current
16.67A
8.33A
Rated Power
200W
200W
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
±1%
Input
Voltage Range
110-277VAC
Frequency Range
47-63Hz
Power Factor @ full load
0.98@120VAC 0.97@277VAC
0.98@120VAC 0.95@277VAC
THD（Typ.）@ full load
<20%
Efficiency @ full load
83% @120Vac 87%@277Vac
79%
86% @120Vac 88%@277Vac
AC Current（Max.）
2.3A@100Vac
Inrush Current （Typ.）
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
Leakage current
<0.50mA
protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20～90%RH, non-condensing
Storage TEMP. Humidity
-40～+80℃，10～95%RH
TEMP .coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
About 1.8Kg
Size

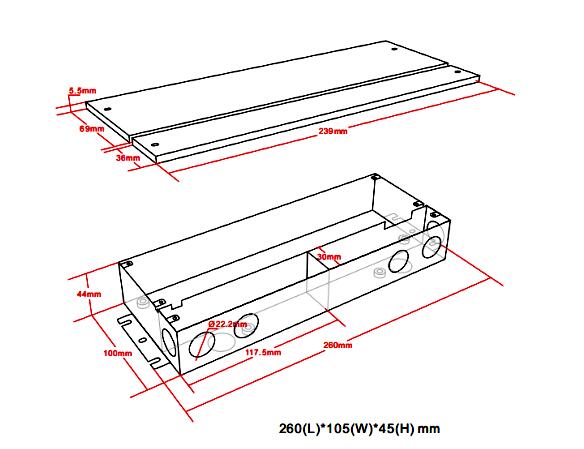

1.0 version: 260*105*45mm / 2.0 version: 260*125*45mm
packing
10PCS/CTN（L*W*H）
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |
Mechanical Specification
Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Compatible strip lighting Type
The LEDCO 12VDC LED strip features a high-powered 2016 LED and high lumen output of up to 90 to 100 lumens per watt. Also, The LED Strip with 12v 200w led power supply is available in Warm White (2700 to 3000K), Neutral white (4100K~4200K) and Pure white (5200K~5300K) with a colouring rendering index (CRI) of 90 or better.
