Non-dimmable LED Driver

277v 120 volt triac dimmable led power supply 12v dc 300 watt multiple output

Smarts led driver triac offers 100-130vac and 277vac. This type is made as multiple output  5*5A, and multiple output

5*60W. The design meets Class 2 standard. LEGRAND forward Phase Cut dimmers 100-130VAC  shows good compatibility.

  • item no.:

    SMT-012-300VTHJ
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc;24vdc
  • Output Current:

    5*5A; 3*4A
  • Working Mode:

    constant voltage
  • Certification:

    UL cUL
  • Warranty:

    7 years
inquiry now
product details

277v 120 volt triac dimmable led power supply 12v dc 300 watt multiple output


The 300 watt led power supply is 2 in 1 type and offers smooth dimming when compatible with right dimmers and proper load of lights. ELV and MLV dimmers both are available. Except LEGRAND dimmers, most LEVITON dimmers are workable.


  Specification



Model

SMT-012-300VTHJ(1.0 version)

SMT-012-300VTHJV2 (2.0 version)

SMT-012-300VTHJWV2  (3.0 version)

SMT-024-288VTHJ(1.0 version)

SMT-024-288VTHJV2 (2.0 version)

SMT-024-288VTHJWV2 (3.0 version)

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Voltage Tolerance

±0.5V

Load Regulation

±2%

±1%

±1%



Rated current

25A (multi current 5*5A)

12A(multi current 3*4A)

Rated power

300W (5*60W)

288W (3*96W)

Input

Voltage Range

100-277VAC

Frequency Range

47~63HZ

Power Factor (Typ.)@full load

0.95@120VAC  0.95@277VAC

0.99@120VAC  0.96@277VAC

THD(Typ.)@full load

<20%

Inrush Current(Typ.)

35A (twidth=960us) @120VAC ; 43A (twidth=1ms) @277VAC



Efficiency(Typ.)@Full Load



85%@120VAC   90%@277VAC

79%

87%@120VAC   89%@277VAC



AC Current(Typ.)

3.6A@100VAC

3.4A@100VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover afterfault conditionisremoved

Over load

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.

Over Current

≤1.4*I out

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz 2G 10min./1 cycle,period for 60min.each along X,

Y,Z axes







Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11(Surge 4KV)

Others

Weight

2.4Kg

Size

1.0 version:   301*108*46mm (L*W*H)  / 2.0 version:  301*110*45mm

3.0 version:  301*140*45mm

packaging

365*210*245mm/8pcs /CTN    G.W.:21KG/CTN



385*335*200mm     20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at110V &277VAC input , rated load

and 25℃of ambient temperature.

2..Tolerance:includes set us tolerance,line regulation and load regulation.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

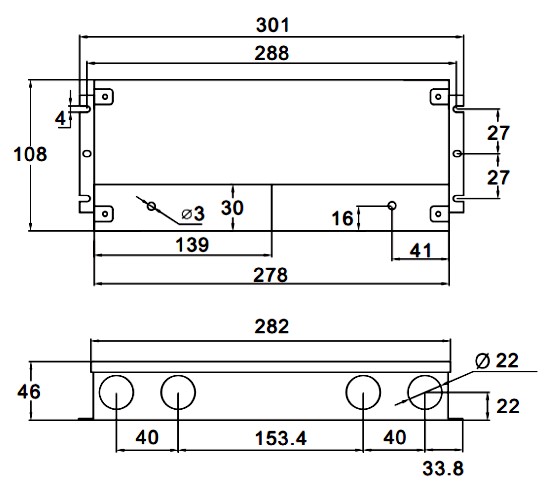

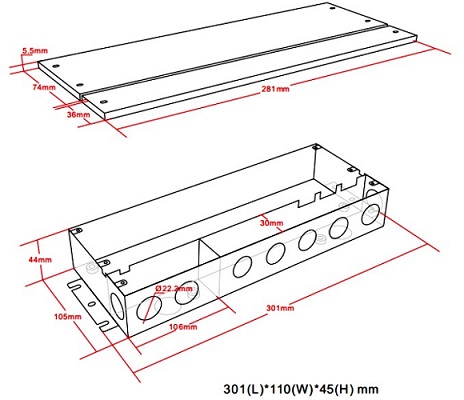

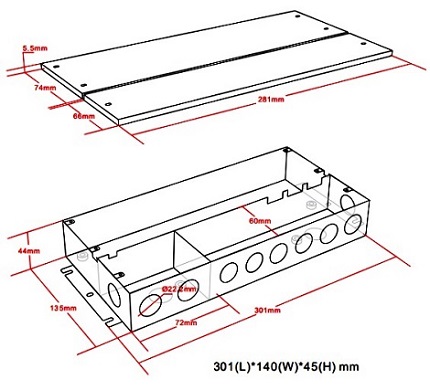

  ■Mechanical Specification


300 watt led power supply



1.0 version:   SMT-012-300VTHJ   /   SMT-024-288VTHJ



300 watt led power supply

2.0 version:   SMT-012-300VTHJV2   /   SMT-024-288VTHJV2



300 watt led power supply



3.0 version:  SMT-012-300VTHJWV2   /   SMT-024-288VTHJWV2

※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

※Output wire: 16AWG ,  Red is(DIM+),Black is(DIM-)

※Class 2 standard output terminal. Three groups of cables for SMT-012-300VTHJ / SMT-012-300VTHJV2 / SMT-012-300VTHJWV2 ; two groups for SMT-024-288VTHJ/ SMT-024-288VTHJV2 / SMT-024-288VTHJWV2



  ■Dimming Operation


※The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase/triac dimmer.

※Usually matching with Forward phase , leading edge , Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.

※Please try to use dimmers with power at least 1.5 times as the output power of the driver.

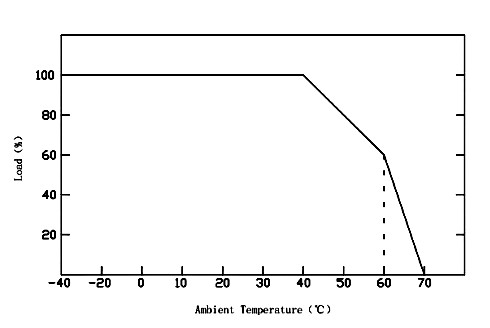

  ■Derating Curve


300 watt led power supply

※To extend their life, please refer to the Derating Curve and derate according to the temperature.

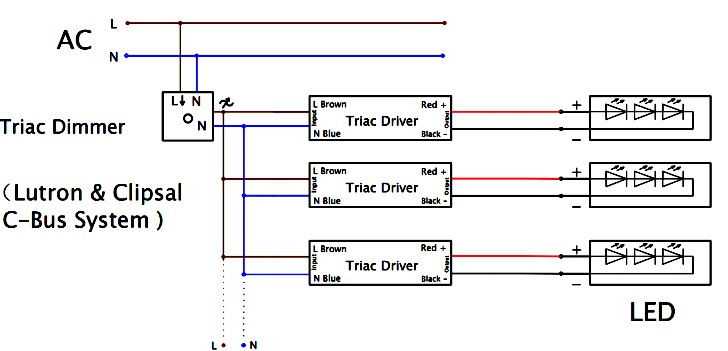

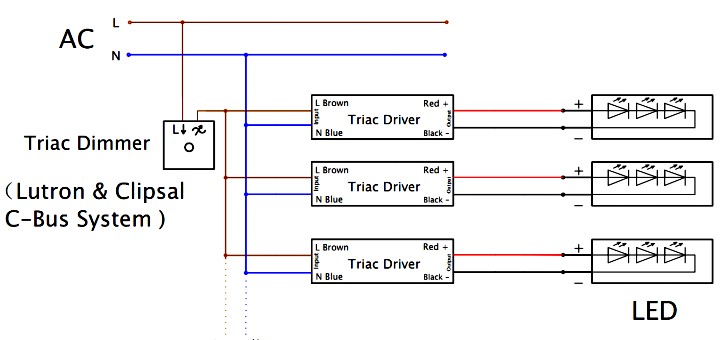

  ■ Connecting Diagram


 300 watt led power supply

300 watt led power supply



.300 watt led power supply

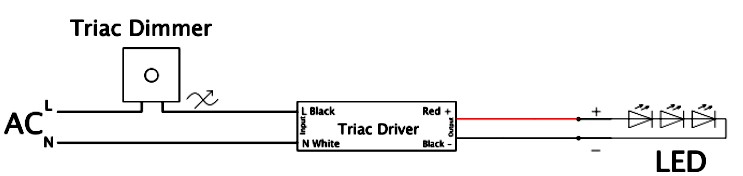

  ■ Simple Connection Diagram:


300 watt led power supply

  ■ Instruction:


※This driver should be installed by qualified and professional person;

※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

※Ensure that wiring is correct before test in order to avoid light and power supply damage;

※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us:sales9@smartselectronics.com  Or take a phonecall: 0086-18016688251

Official website:www.smarts-electronics.com   and   www.swinpower.com


  Compatible lights Type

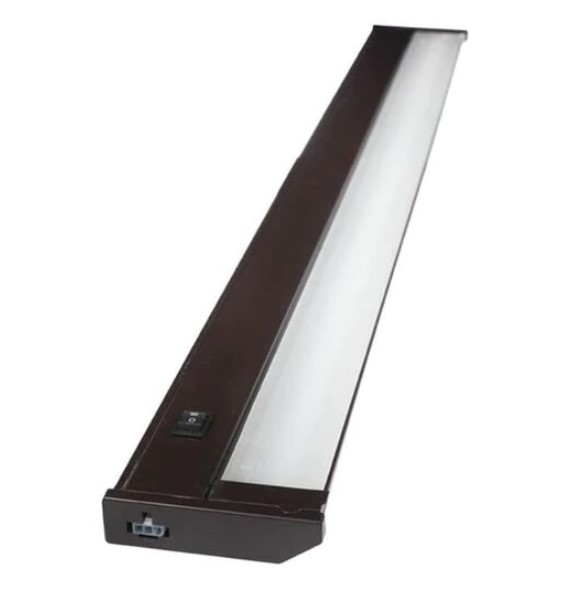

the triac dimmable transformer constant voltage LED driver has three versions for choosing. 24V is also provided. Compatible with all12v led lights and the highest reach 300w. AQ lighting dimmable led bar is suggested in principle.


triac dimmable transformer constant voltage LED driver



  Related Products


12v dc led power supply

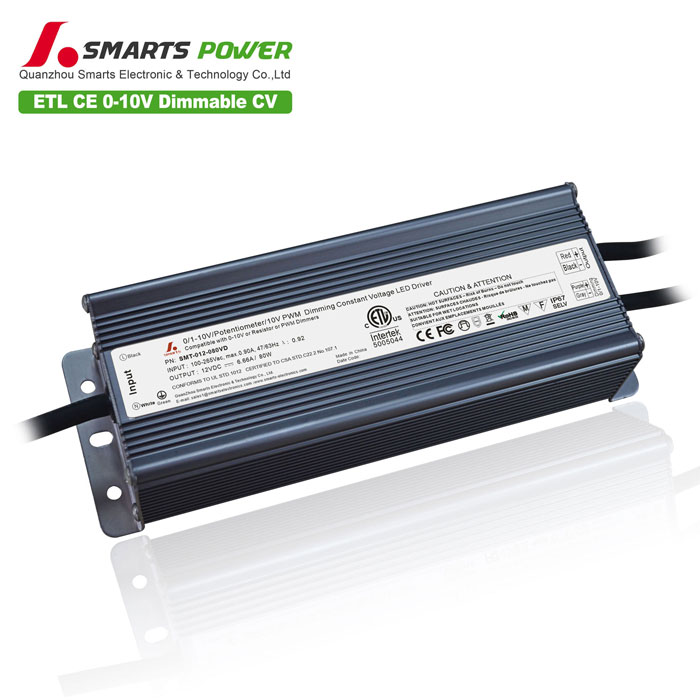

The 12v dc led power supply is dimmed by 0 10V. The output wattage is 80w. IP67 aluminum case for outdoor using.
