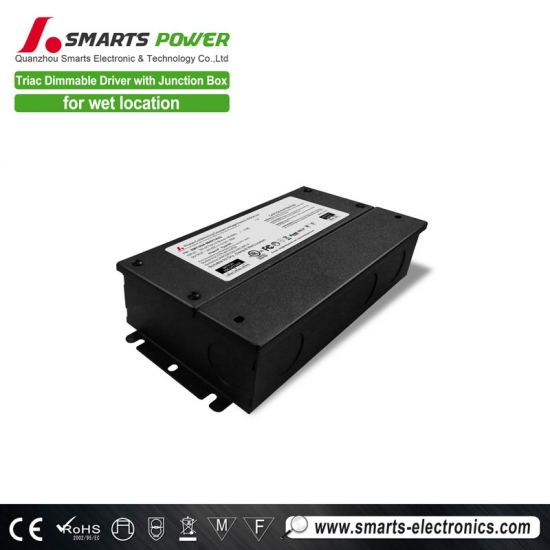

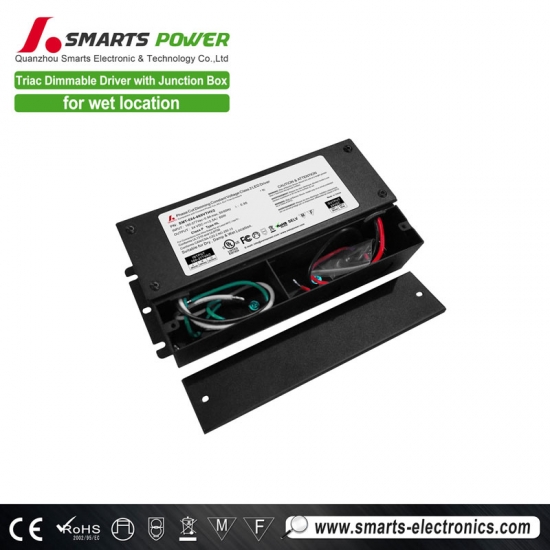

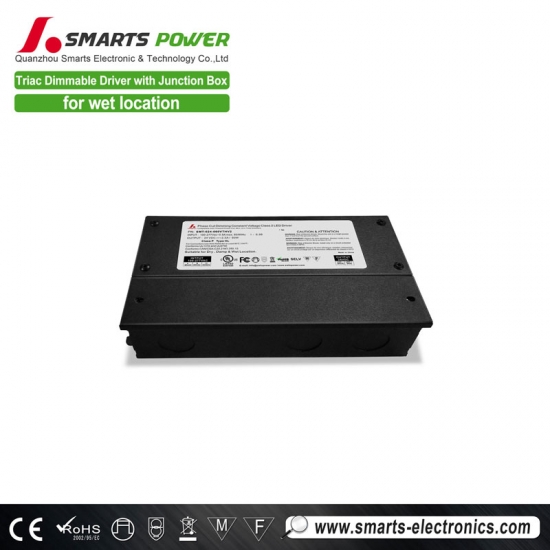

277 volt 24v 60w triac dimmable power supply for outdoor led strip
Flat and compact aluminum outer housing is easy to conceal, 12v 60w triac constant voltage dimming driver are Class 2 compliant, making them safe and inspection-ready. It is safer and easier to working Prism Lighting Group led strip light stability in dry, damp& wet location.
Specification
model |
SMT-012-060VTH (1.0 version) SMT-012-060VTHV2 (2.0 version) |
SMT-024-060VTH (1.0 version) SMT-024-060VTHV2 (2.0 version) |
|
Output |
DC Voltage |
12V |
24V |
Rated Current |
5A |
2.5A |
|
Rated Power |
60W |
||
Voltage Tolerance |
±0.5V |
||
Voltage Regulation |
±0.5% |
||
Load Regulation |
±1% ±1% |
||
Input
|
Voltage Range |
100-277VAC |
|
Frequency Range |
47-63HZ |
||
Power Factor(Typ.)@ full load |
0.98@120VAC 0.95@277VAC |
0.98@120VAC 0.95@277VAC |
|
THD(Typ.)@ full load |
<20% |
||
Efficiency(Typ.)@ full load |
83% |
83% |
|
AC Current(Max.) |
0.9A@100VAC |
||
Inrush Current (Typ.) |
14A, 50%, 780us |
||
Leakage current |
<0.50mA |
||
protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
|
Working Humidity |
20~90%RH, non-condensing |
||
Storage TEMP. Humidity |
-40~+80℃,10~95%RH |
||
TEMP .coefficient |
±0.03%/℃(0~50℃) |
||
Vibration |
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
Safety& EMC |
Safety standards |
UL8750+UL1310 |
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
EMC EMISSION |
FCC Part 15 B |
||
Others |
Weight |
About 1.1Kg |
|
Size |
1.0 version: 188*92*26mm(L*W*H); 2.0 version: 188*94.5*40mm(L*W*H) |
||
packing |
10PCS/CTN (L*W*H) |
||
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |

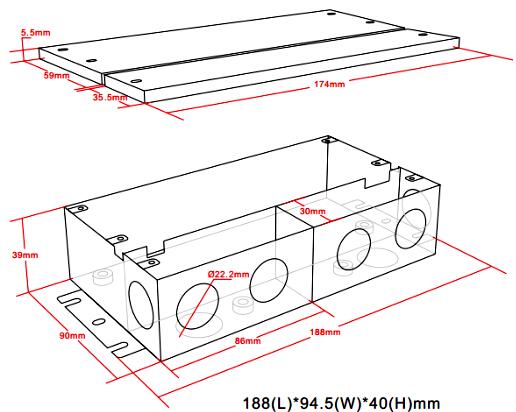

Mechanical Specification

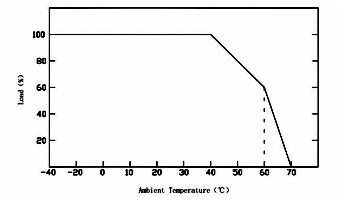

Derating Curve

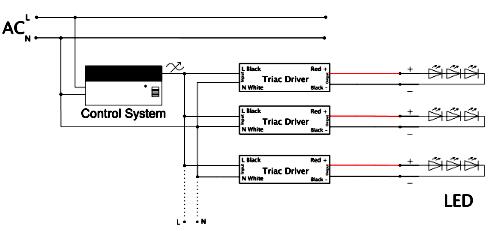

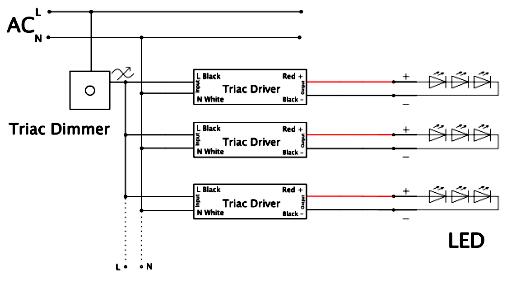

Application

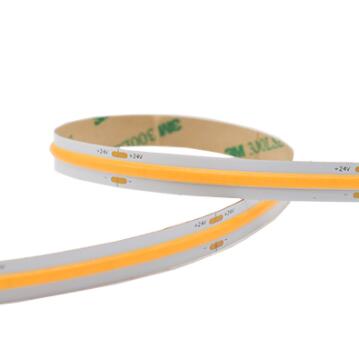

Smarts SMT-024-060VTHV2 60w dimmable driver have got UL/cUL listed, Class P, Type HL, CE, ROHS approval, compliance to worldwide safety regulations for lighting. it can match Prism Lighting Group led strip light 6000K.
Related Products
277vac 12v 24vdc 60w triac dimmable constant voltage led driver, UL/cUL, CLASS 2 listed, 7 years warranty, hot sales in US and Canada market...

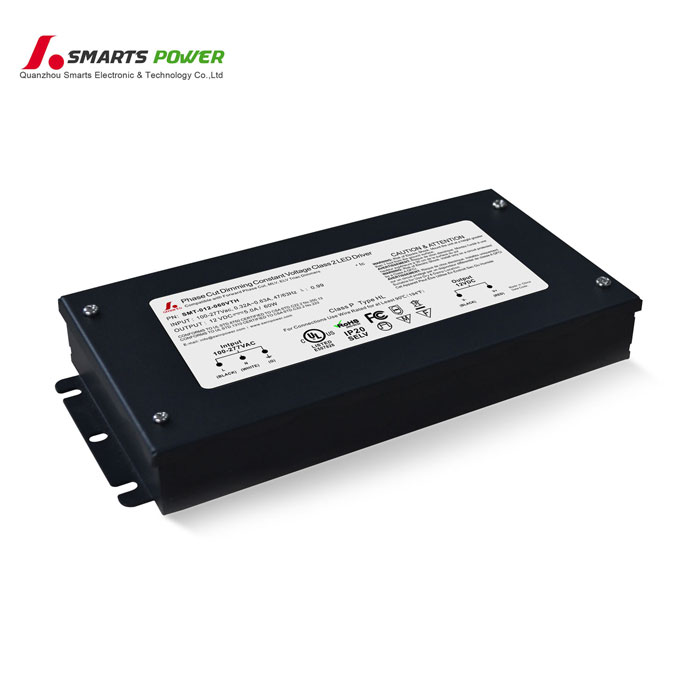

Mode:SMT-012-060VTH Output: 12vdc 5.0amp 60watt intput voltage:100-277VAC Size : 188*92*26mm Working mode: constant voltage dimming mode: triac dimmable CE,UL, RoHS,FCC, Class p ,type HL approval 7 years warranty |
