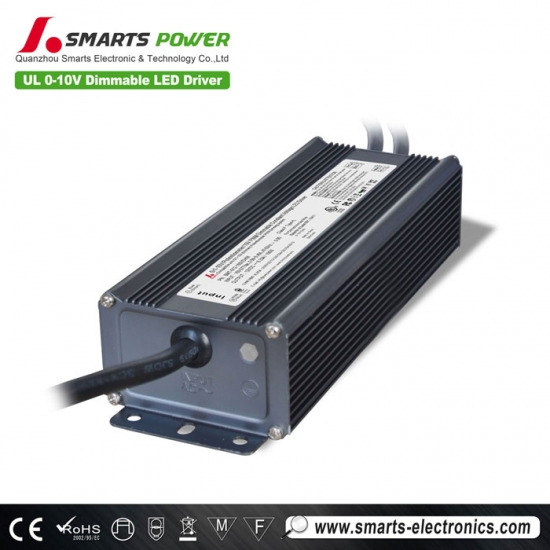

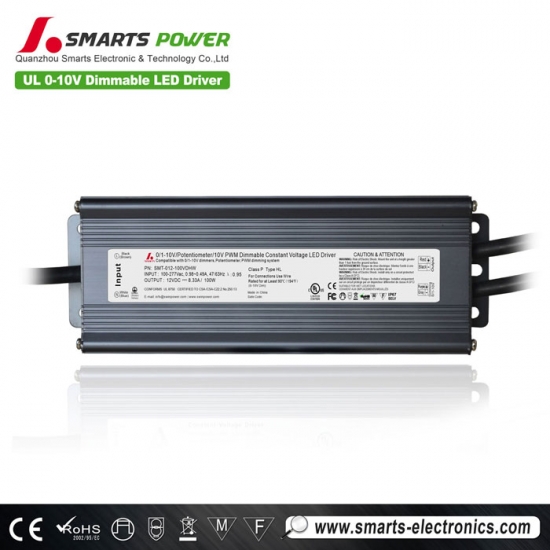

277 volt 100w dimmable led flood light driver 12v output
SMT-012-100VDHW is 0/1-10V Potentiometer/10V PWM(3 in 1) Dimmable 12v 24v 100w 277 volt led driver. The High efficiency&high reliability&Longer service life is the best choose for driving Global Homary Flush Mount Light 96w.
Specification
Model
SMT-012-100VDHW
SMT-024-096VDHW
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
Rated current
8.33A
4.0A (Class 2 )
Rated power
100W
96W
Ripple&noise Max.
200mVp-p
350mVp-p
350mVp-p
250mVp-p
400mVp-p
Input
Voltage Range
100~130VAC, 170~265VAC
Frequency Range
47~63HZ
Power Factor ( Typ.)
>0.90
>0.90
Full Load Efficiency(Typ.)
>88%
86%
87%
>88%
88%
AC Current(Typ.)
1.010A/120VAC 0.713A/170VAC 0.550A/220VAC 0.457A/277VAC
Leakage current
﹤0.25mA/110V,277VAC
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage
≦280VAC
Over temperature
100℃±10℃ shut down o/p voltage, re-power on to recover
Environment
Working TEMP.
-40~+60℃
Working Humidity
20~95%RH,non-condensing
Storage TEM.,Humidity
-40~+80℃,10~95%RH
TEMP.coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
Safety&EMC
Safety standards
Class P, Type HL, EN61347-1 EN61347-2-13 IP67
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 (≧50%Load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry
level (surge4KV)
Others
Weight
1.32Kg
Size
230*70*47mm(L*W*H)
packing
329*279*176mm/10pcs
Notes
1. All parameters NOT specially mentioned are measured at 110V, 277VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
 |
 |
 |
 |

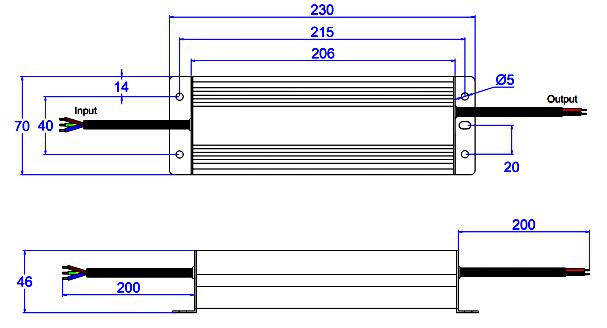

Mechanical Specification

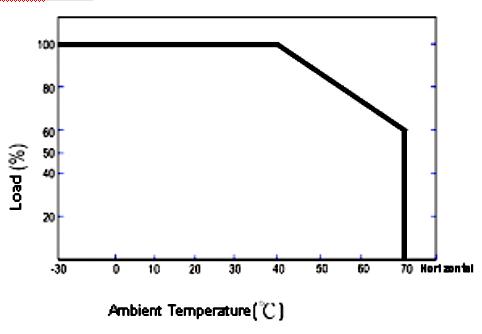

Derating Curve

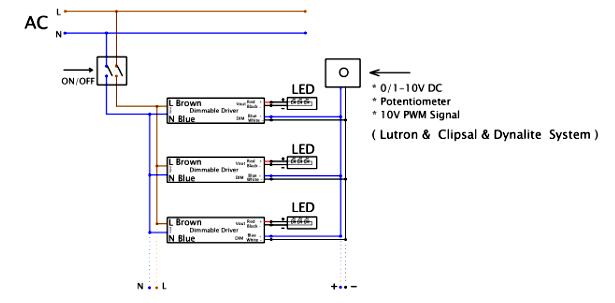

Application
Smarts 12v 24v 100w 0-10v/pwm dimming driver, 100-27vac, the aluminum case can suitable for indoor and ourdoor project, and it can perfectly match Global Homary Flush Mount Light 110vac.
Related Products

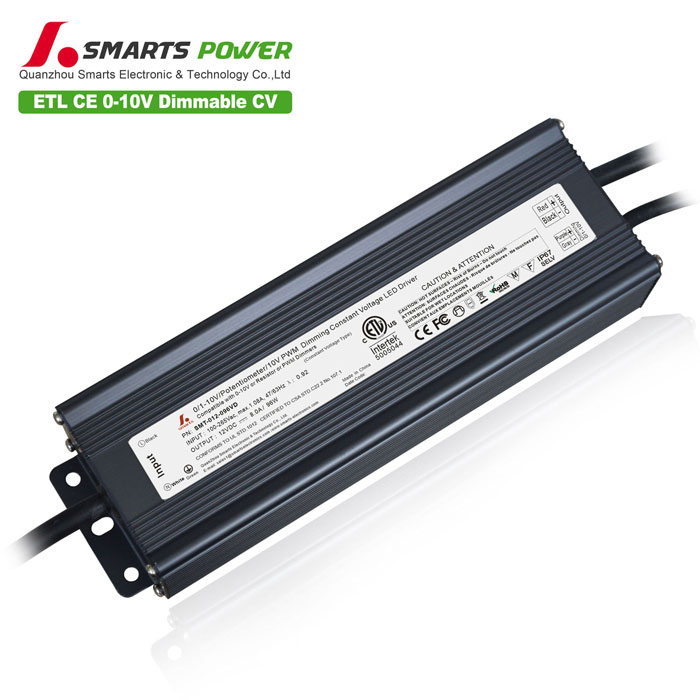

96w 12v 24v constant voltage PWM/0-10V/1-10V dimmable led driver non flicking, ETL,CE,FCC, ROHS, with 5 years warranty...
Mode：SMT-012-096VD Output: 12vdc 8.0amp 96watt intput voltage：100-130/170-265VAC Size : 140*45*27mm Working mode: constant voltage dimming mode: 0-10V dimmable CE,UL, RoHS,FCC approval 5 years warranty |
