UL certificated 0-10V dimmable led driver 24v 30w constant voltage led power supply

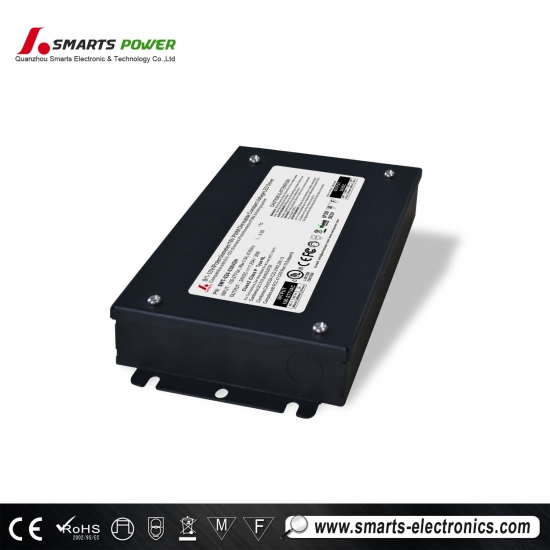

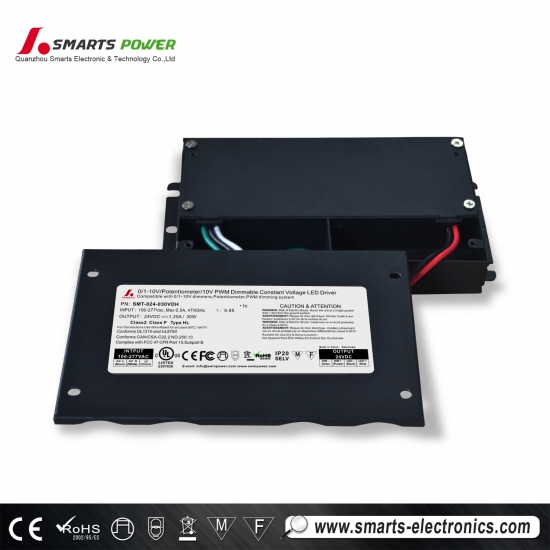

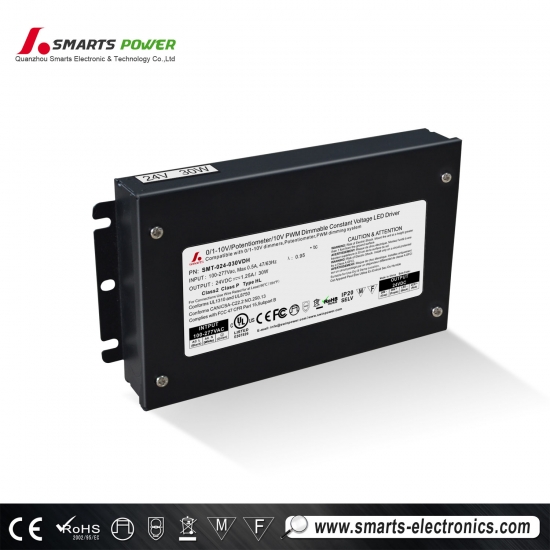

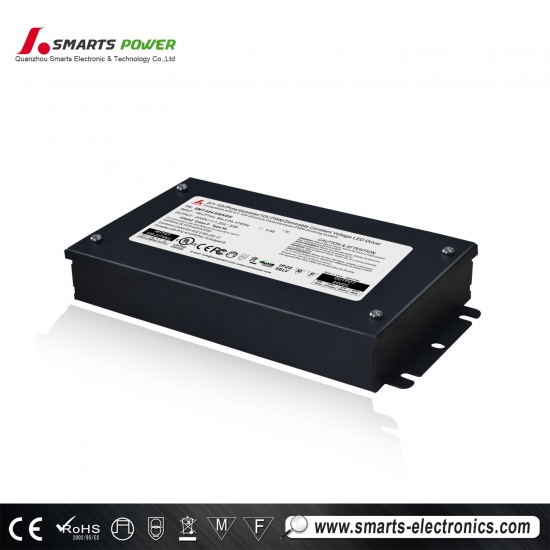

SMT-012-030VDH is 0-10V dimmable led driver with UL certification. It is 24v constant voltage led driver and output power is 30w. It also has 7 years warranty. The size is 165*92*26mm (L*W*H) and a weight of 0.95Kg.
Specification
model
SMT-012-030VDH
SMT-024-030VDH
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
2.5Amp
1.25Amp
Rated power
30W
30W
Voltage Regulation
±0.5%
Load Regulation
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.99/110V ; PF≧0.97/277V
Full Load Efficiency（Typ.）
>82%
>84%
AC Current（Typ.）
0.33A/110VAC / 0.13A/277VAC
Leakage current
<0.27mA/110VAC; ﹤0.25mA/277VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
Others
Weight
0.95Kg
Size
165*92*26mm (L*W*H)
packing
355*215*215mm / 10PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
Dimming Operation
Ø Built-in 3 in 1 dimming function, I67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-
Ø Reference resistance value for output current adjustment (Typical)
