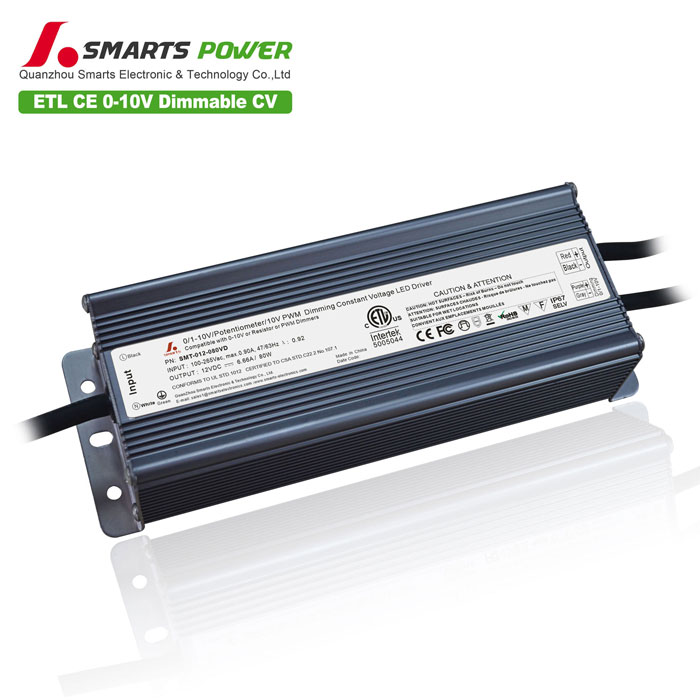

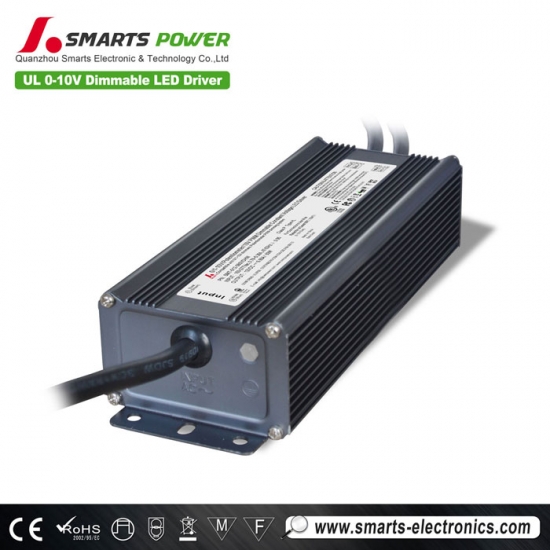

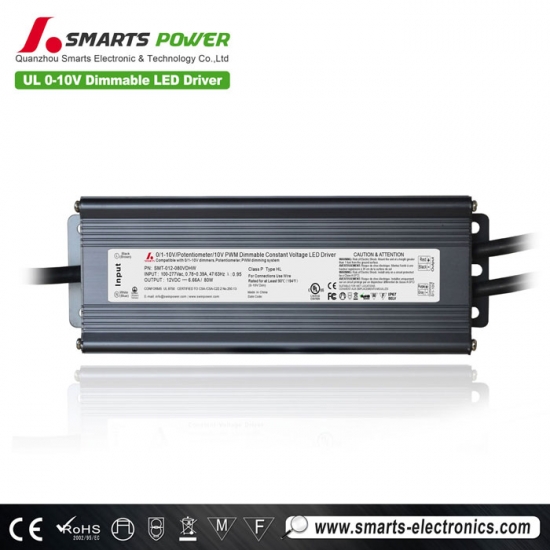

model

SMT-012-080VDHW

SMT-024-080VDHW

Output

DC Voltage

24V

Voltage Accuracy

±0.5V

Rated current

6.66A

3.33A (class 2 type)

Rated power

80W

80W

Input

Voltage Range

100~277V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≧0.95/110V , PF≧0.95/277V

Full Load Efficiency(Typ.)

86%@120VAC   88%@277VAC

>85%

AC Current(Typ.)

1.3A @110VAC  0.72A/170VAC  0.530A/220VAC  0.427A/277VAC

Inrush Current (Typ.)

1.0A/120VAC  0.63A/170VAC  0.50A/220VAC  0.41A/277VAC

Leakage current

﹤0.40mA/110V,277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

≦140VAC(90~135V) , ≦290VAC(260~277V)

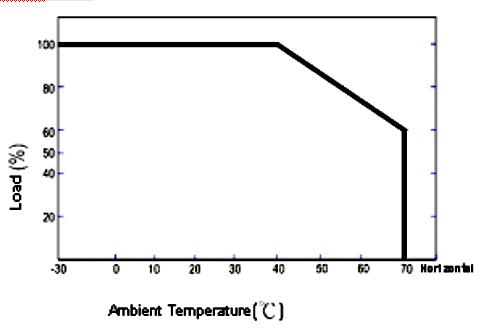

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

Class P, Type HL, EN61347-1 EN61347-2-13  IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry

level (surge4KV)

Others

Weight

1.32Kg

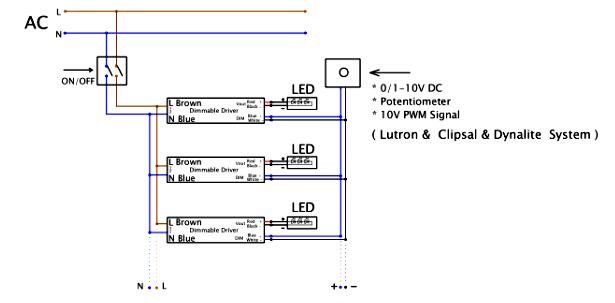

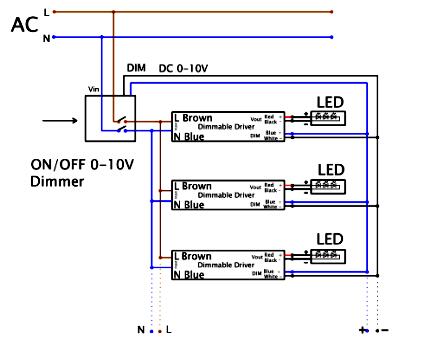

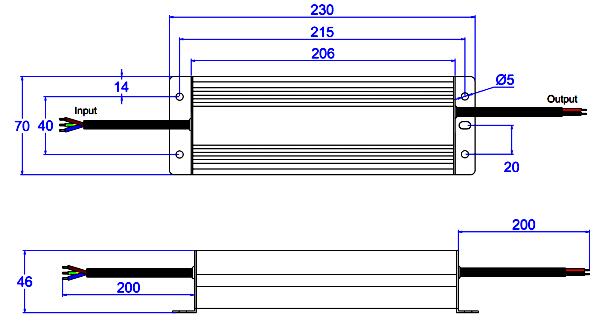

Size

230*70*47mm(L*W*H)

packing

329*279*176mm/10pcs

Notes

1.  All parameters NOT specially mentioned are measured at  120VAC & 277vac input , rated load and 25℃of ambient temperature.

2.  Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .
