Model

SMT-012-120VDHW

SMT-024-120VDHW

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

0-10.0A

0-5.0A

Rated power

120W

120W

Ripple&noise Max.

250mVp-p

400mVp-p

Input

Voltage Range

100-277VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

>0.90@110V,277V

Full Load Efficiency(Typ.)

87%

>88%

88%

AC Current(Typ.)

1.263A/120VAC  0.891A/170VAC  0.689A/220VAC  0.572A/277VAC

Leakage current

﹤0.25mA/110V,277VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is

removed

Over voltage

≦325VAC

Over temperature

100℃±10℃  shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&

EMC

Safety standards

Class P, Type HL, EN61347-1 EN61347-2-13  IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry

level (surge4KV)

Others

Weight

1.32Kg

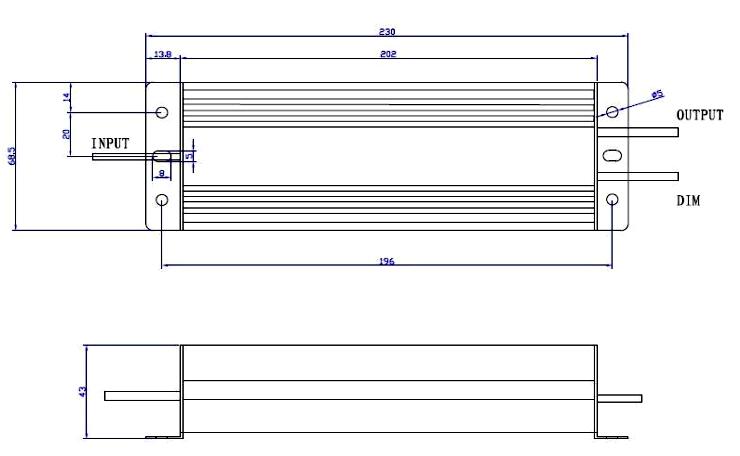

Size

240*66*53mm(L*W*H)

packing

329*279*176mm/10pcs

Notes

1. All parameters NOT specially mentioned are measured at 110~277VAC input , rated load and

    25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a

    0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .
