Model

SMT-012-150VDH (1.0 version)

SMT-012-150VDHV2 (2.0 version)

SMT-012-150VDHWV2 (3.0 version)

SMT-024-150VDH (1.0 version)

SMT-024-150VDHV2 (2.0 version)

SMT-024-150VDHWV2 (3.0 version)

Output

DC Voltage

12V

24V

Rated Current

12.5A

6.25A

Rated Power

150W

150W

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±2%

±1%

±1%

Input

Voltage Range

110-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@ full load

0.98@120VAC  0.95@277VAC

0.99@120VAC  0.94@277VAC

THD(Typ.)@ full load

<20%

Efficiency(Typ.)@ full load

85% @120Vac    86%@277Vac

79%

85% @120Vac   87%@277Vac

AC Current(Max.)

1.8A@100Vac

Inrush Current (Typ.)

15A, 50%, 1.4ms @120Vac     30A, 50%, 1.4m,s @277Vac

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

1.8Kg (1.0 version)

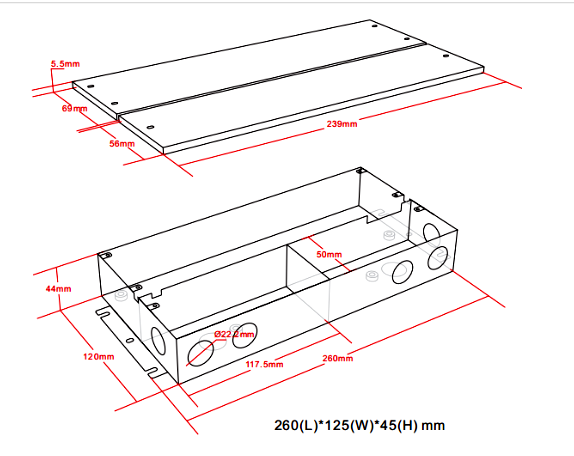

Size

1.0 version: 260*103*46mm (L*W*H) /2.0 version: 260*105*45mm (L*W*H)

3.0 version: 260*125*45mm (L*W*H)

packing

Packaging: 10PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.
