Non-dimmable LED Driver

24v 72W switching power adapter

24v 72W switching power adapter
  • item no.:

    SMT-024-072VP
  • lead time:

    15 working days for 500pcs
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    T/T, Paypal, Western Union
inquiry now
product details

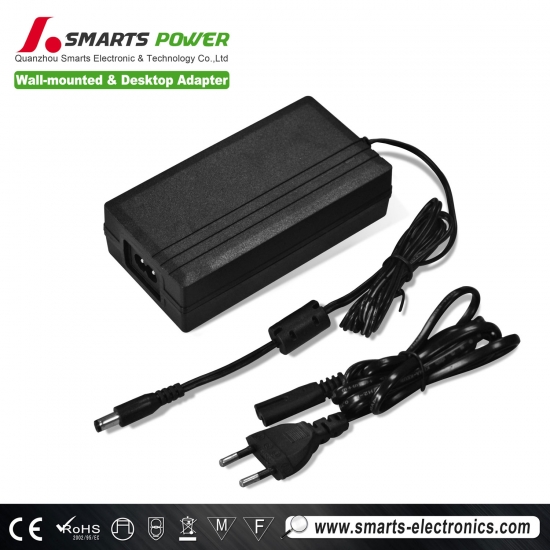

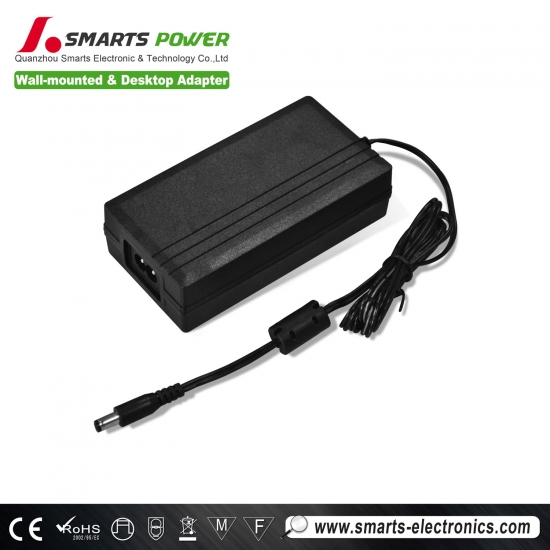

power adapter 24V 72W

Description:

1. Input voltage.:100-240V AC

2. Efficiency>82%

3. output: 24V @ 6A  72W

4. AC cord: EU standard AC plug

5. DC cord: 1.2m EU standard cord with male plug

6. DC connector: 5.5x2.1x10mm

7. CE,ROHS approval

8. Warranty: 18 months


Features :

• Universal AC input: 100~240Vac

• Protections: Short circuit / Overload

• No load power consumption < 0.5W /Over voltage

• 2 or 3 pole US / European type plug

• Fully enclosed plastic case

• Class II power (without earth pin)

• Pass LPS

• Full output 12v 24V safety approved

• 18 months warranty


(AC/DC desktop type switching power adapter)

• Universal AC input/ Full range                    • Full output 12/24V safety approved

• No load power consumption < 0.3W          • Protections: Short circuit Overload

• Pass energy star level IV (CEC)                    Over voltage

• US / EU / AU/ UK type plug                          • Fully enclosed plastic case

• Class I/ Class II power                                • 18 months warranty



General Specification:

AC input voltage range...........100~240VAC / 6A for 72W; 100~240VAC / 3A for 72W

AC inrush current (max.) ........Cold start, <25A peak at 115VAC or 45A peak at 230VAC

Overload protection................Hiccup mode, auto-recovery

Over voltage protection...........Clamp by zener diode > 120%

Withstand voltage..................I/P-O/P: 3KVAC, 1minute

Working temperature ..............-10°C~50°C @ 100% load, 50°C @ 70% load

Safety standards...................  , CSA 22.2, TUV EN60950-1, CNS14336

EMC standards .....................   EN55022-B, EN61204-3, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part15 class B,CNS13438

Length of output cable ...........180cm of  18AWG or 120cm length

Standard DC plug ................... Male or USB DC connector

 Item No.  output voltage current       power     Tol.        R&N           Effi.           IP Rate
 SMT-012-72VP  12V   6.00A  72W  ±5%  80mV  >80%  IP20
 SMT-024-72VP  24V  3.00A  72W  ±2%  150mV  >80%  IP20
