12v 100W Non dimmable constant voltage led driver power supply junction box

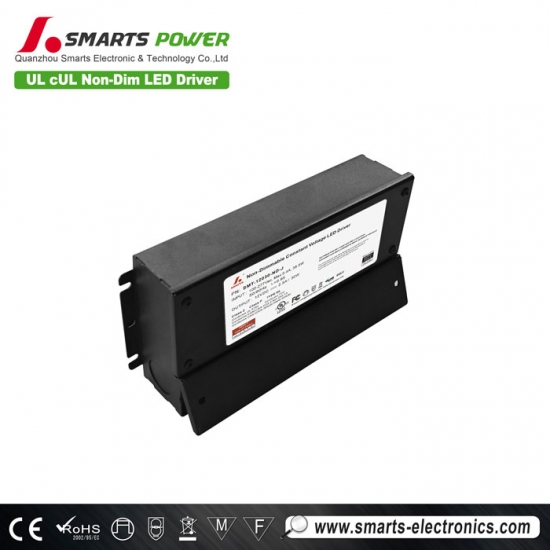

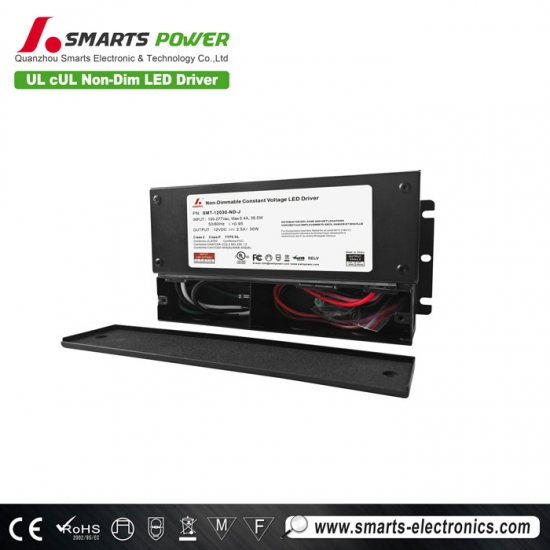

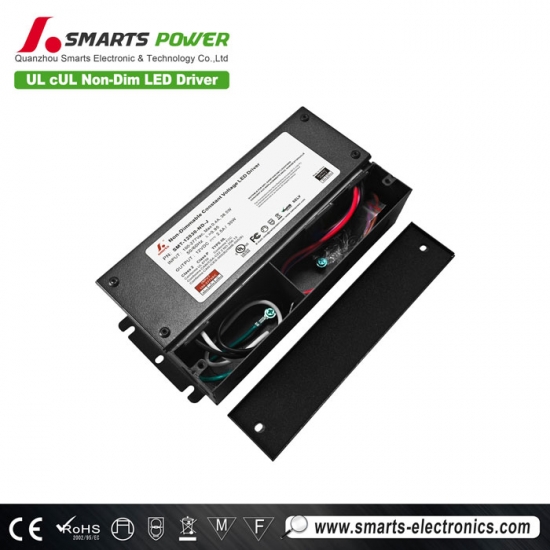

Smartspower's new upgraded Non dimmable constant voltage 30W 12V/24V LED driver is integrated with the junction box, with a metal shell design and good heat dissipation. It is suitable for installation and use in dry and humid space lighting projects
Specification
| Model | SMT-12030-ND-J | SMT-24030-ND-J | SMT-48030-ND-J | |
| Certificate | UL / cUL / FCC / Class P / Class 2 | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±5% | ±3% | ±2% | |
| Voltage Regulation | ≤0.5% | ≤0.5% | ≤0.5% | |
| Load Regulation | ≤2% | ≤1% | ≤1% | |
| Rated current | 2.5A | 1.25A | 0.63A | |
| Rated power | 30W | |||
| Voltage Ripple | 500mVp-p | 400mVp-p | 350mVp-p | |
| Overshoot voltage | <10%(full load) | <10%(full load) | <10%(full load) | |
| Input | Voltage Range | 100-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load |
>0.98@120VAC >0.95@120VAC |
>0.98@120VAC >0.95@120VAC |
>0.98@120VAC >0.95@120VAC |
|
| THD(Typ. ) @ full load | <15%@120V <15%@277V | |||
| Efficiency(Typ.) @ full load |
≥79%@120VAC ≥80.5%@277VAC |
≥81%@120VAC ≥83.5%@277VAC |
≥83.5%@120VAC ≥84.5%@277VAC |
|
| AC Current (Max.) | ≤0.4A @120VAC ≤0.16A@277VAC | |||
| Inrush Current (Typ.) | 25A,120us@50%Ipeak 120VAC 60A,136us@50%Ipeak 277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, can be automatically restored after abnormal removal | ||
| Over Load | ≥120%,Constant - Current Mode, automatic recovery after exception | |||
| Over temperature | When the ambient temperature exceeds 55℃ ±5℃, the output is turned off | |||
| Environment | Working TEMP. | -40~+40℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVac;I/P-FG::1.88KVac;O/P-FG:0.5KVac | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | |||
| EMC Immunity | FCC/ICES do not request this test | |||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5 | |||
| Others | Net Weight | 0.85kg | ||
| Dimension | 165*95.4*43.8mm(L*W*H) | |||
| Packing | 415*265*270 20 pcs / CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |||
| 2. Tolerance: includes set up tolerance and load regulation . | ||||
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||||
| 4. Default states: The dimming curve is a gamma2.2 curve. | ||||
| 5. Regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
 |
 |
 |
 |

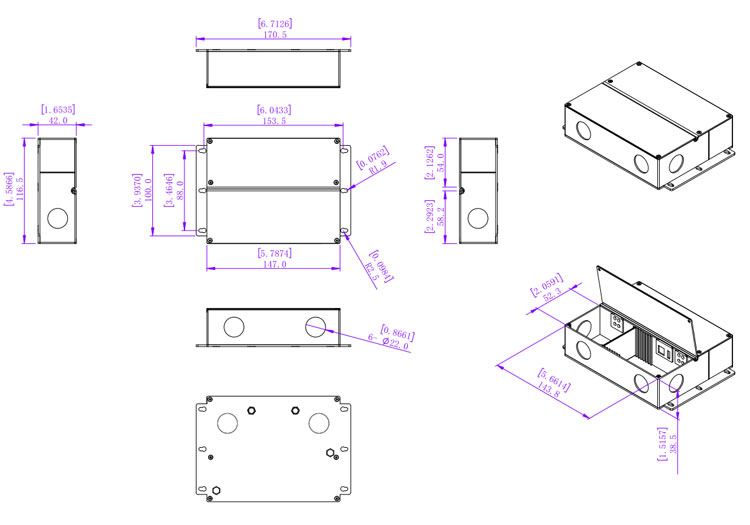

Mechanical Specification
1. Input with UL 1015 electronic wire,18 AWG, Black（L）、White（N）、Green（G）Clamp on the shell
2. Output wire UL 1015 electronic wire,18 AWG,Red(V+) 、Black(V-)
Derating Curve
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading .
