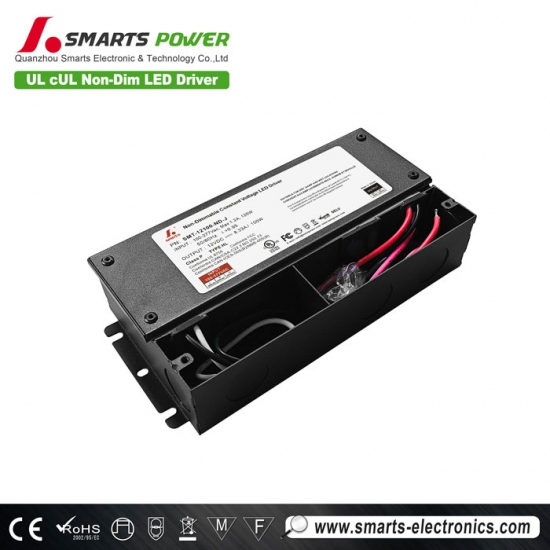

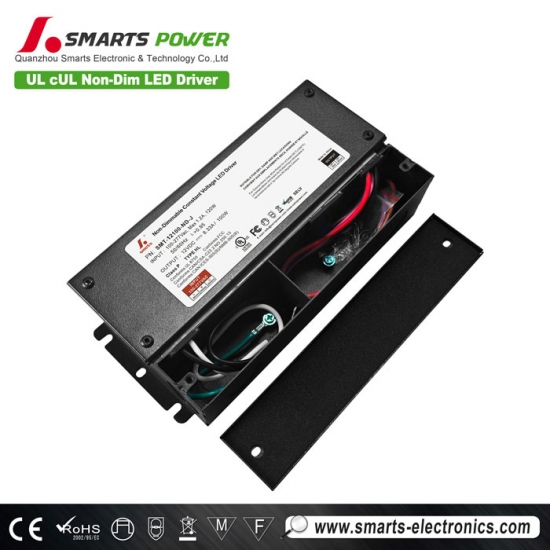

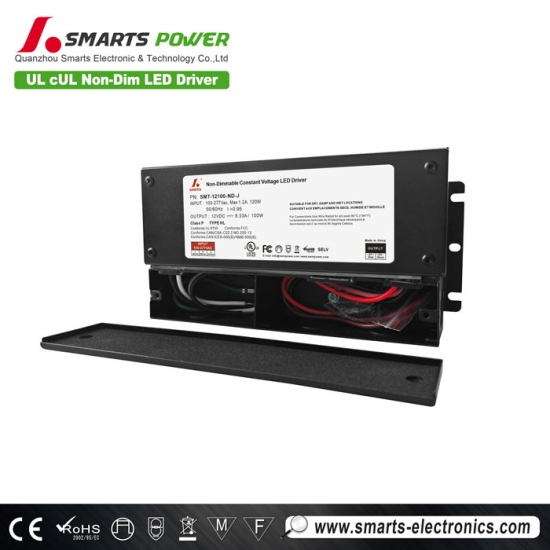

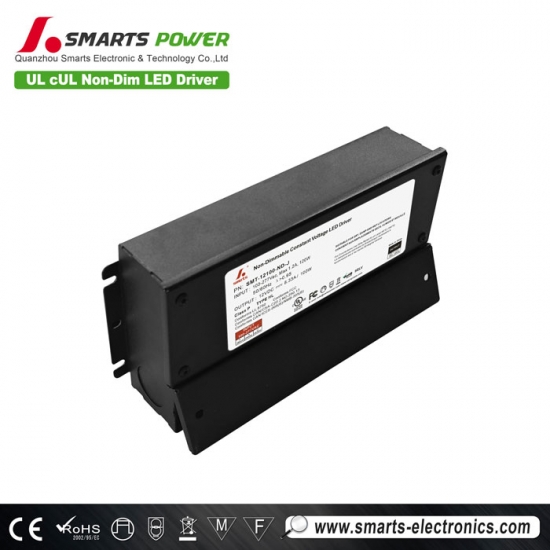

12v 100W Non dimmable constant voltage led driver power supply junction box
UL certified non-dimming constant voltage LED power supply Metal housing design with good heat dissipation. Natural air cooling is adopted. Built-in fine-tuning voltage function knob, users can freely adjust the output voltage according to their needs. Comply with global safety lighting regulations. Mainly sold to North America.
Specification
| Model | SMT-12100-ND-y | SMT-24100-ND-y | SMT-36100-ND-y | SMT-48100-ND-y | |
| Note: | y. can be P=(plastic), A=(Aluminum), J=(Junction Box) | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
| Fine-tune Volt. Range | 10-13V | 24-26V | 36-38V | 48-50V | |
| Rated current | 8.33A | 4.16A | 2.77A | 2.08A | |
| Output Power | 100W | ||||
| Rated power | ±0.5% | ||||
| Voltage Tolerance | ±0.5V | ||||
| Voltage Regulation | ≤0.5% | ||||
| Load Regulation | ≤3% | ||||
| Input | Voltage Range | 110-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor@ full load | ≥0.95 | ||||
| Standby power Consumption | ≦0.5W | ||||
| THD(Typ.) @ full load | ≤20%@120VAC | ||||
| Efficiency | ≧95%@120VAC | ≧95%@120VAC | ≧96%@120VAC | ≧97%@120VAC | |
| @ full load | ≧93%@277VAC | ≧93%@277VAC | ≧94%@277VAC | ≧96%@277VAC | |
| AC Current (Max.) | 1.1A | ||||
| Inrush Current (Typ.) | 51A@50%Ipeak 208us @120VAC,118A@50%Ipeak 452us @277VAC. | ||||
| SMT-XX100-VW-P (Plastic case) |
SMT-XX100-VW-A (Aluminum Case) SMT-XX100-VW-J (2 in 1 junction box) |
||||
| Protection | Short Circuit | Hiccup or close output mode, recovers automatically after fault condition is removed | |||
| Over Load | ≤120% , Hiccup mode, recovers automatically after fault condition is removed | ||||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling | ||||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |||
| Working Humidity | 20 - 95%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13(US) | |||
| Withstand voltage | I/P-O/P:1.88KVac; | I/P-O/P:1.88KVac;I/P-FG::1.88KVac;O/P-FG:1.88KVac | |||
| Leakage current | ≦0.5mA | ||||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | ||||
| Lightening &Surge current | OD线对线: 2KV | OD线对线: 2KV , ED线对地:4KV | |||
| EMC Emission | FCC Part15 Subpart B | ||||
| Flickering | Flickering testing standard | IEEE 1789 | |||
| Others | Net Weight | 1.1kg(Aluminum & J-box version) / 0.35kg(plastic version) | |||
| Dimension | 178*61*24mm (plastic) / 188*61.4*25.5mm(Aluminum) / 188.0*95.4*42.7mm(junction Box) | ||||
| Packing | 20/pcs /CTN (metal enclosure version) | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance and load regulation . | |||||
 |
 |
 |
 |
Mechanical Specification
1. Input 1015 0.824mm2 3*18AWG: Black cable (L), White cable (N), Green cable (G).
2. Output 1015 0.824mm2 2*18AWG: Red cable(V+) connect to positive(+), Black cable(V-) connect to negative(-).
3. Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.
Related Products

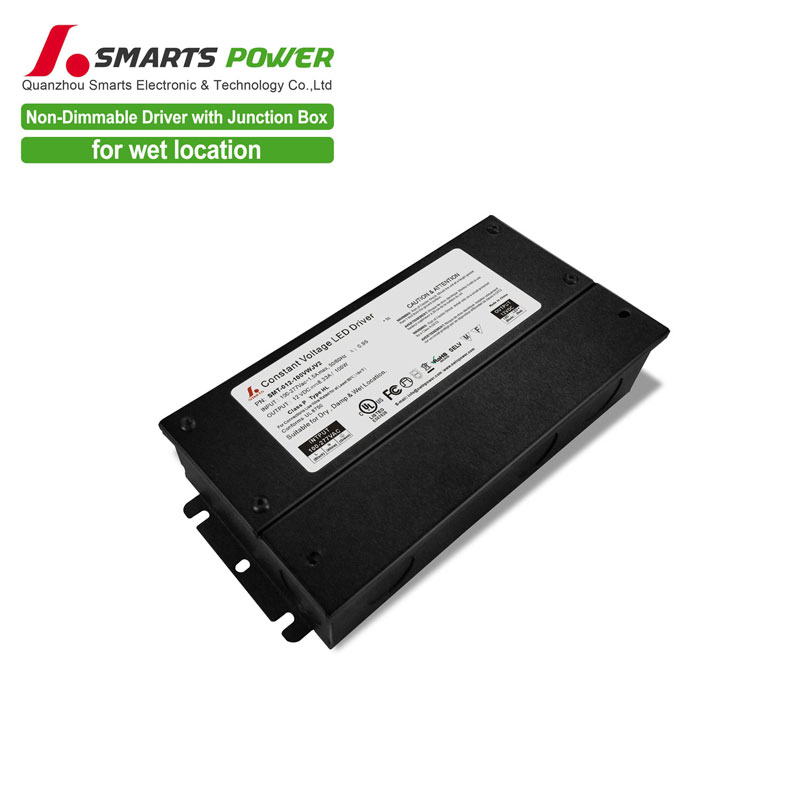

This 12v 100W non-dimming LED driver has a universal input voltage range. It is integrated with the junction box and the aluminum housing has good heat dissipation. It is suitable for outdoor LED lighting projects. It has a 7-year warranty.
