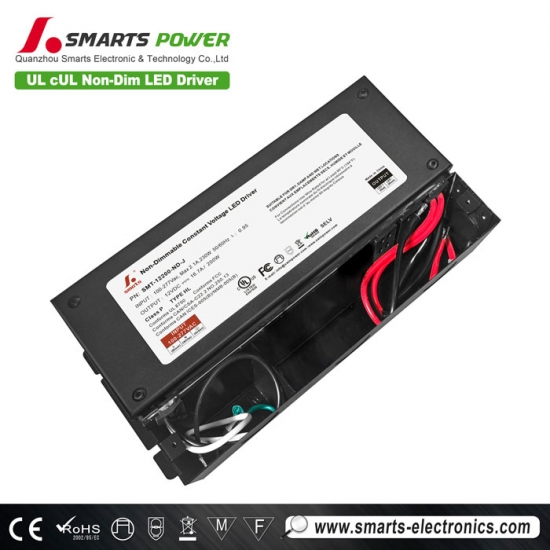

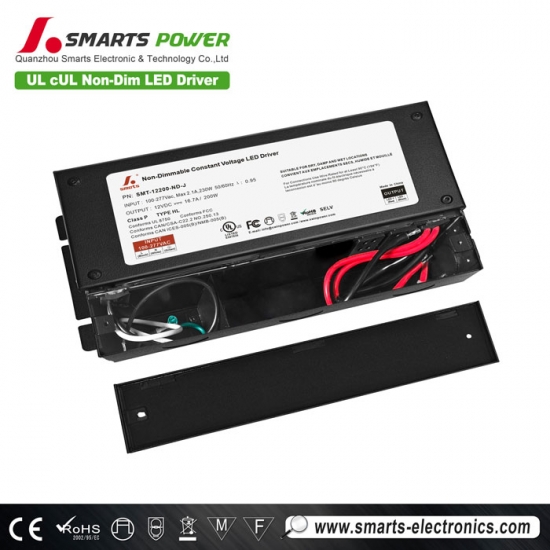

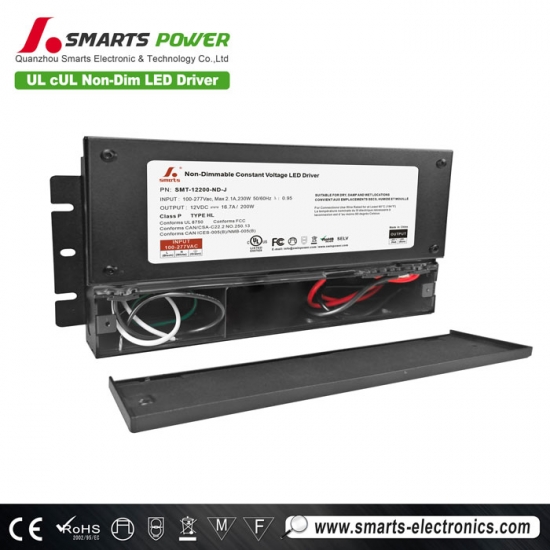

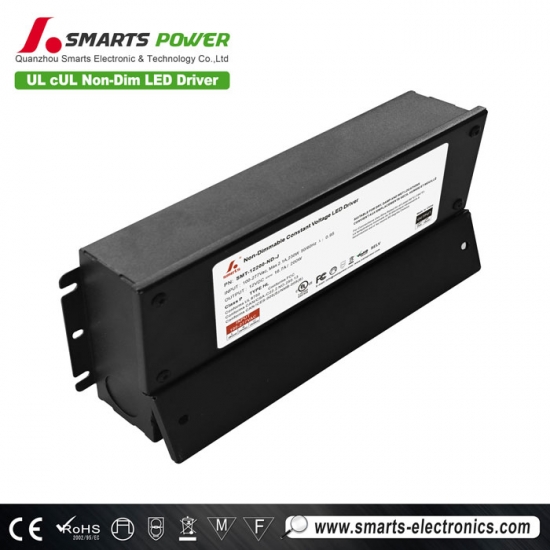

100-277vac non dimmable constant voltage led driver power supply 12v 200w
Smartspower latest non dimmable series constant voltage LED power supply with built-in fine-tuning voltage function knob. Able to compensate for light decay of lamps. UL certified, in compliance with global safety lighting regulations with short circuit/overload/over temperature protection functions. 7-year warranty
Specification
| Model | SMT-12200-ND-J | SMT-24200-ND-J | SMT-36200-ND-J | SMT-48200-ND-J | |
| Note: | y. can be A=(Aluminum), J=(Junction Box) | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
| Fine-tune Volt. Range | 12V | 24V | 36V | 48V | |
| Rated current | 12-13.5V | 24-26V | 36-38V | 48-50V | |
| Rated power | 200W | ||||
| Voltage Tolerance | ±0.5V | ||||
| Voltage Regulation | ≤1% | ||||
| Load Regulation | ≤3% | ||||
| Input | Voltage Range | 110-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor@ full load | ≥0.95 | ||||
| Standby power Consumption | ≦0.5W | ||||
| THD(Typ.) @ full load | ≤20%@120VAC | ||||
| Efficiency @ full load |
≧87%@120VAC ≧90.5%@277VAC |
≧90%@120VAC ≧93%@277VAC |
≧90%@120VAC ≧93.5%@277VAC |
≧90%@120VAC ≧92.5%@277VAC |
|
| AC Current (Max.) | 2.4A | ||||
| Inrush Current (Typ.) | 68A@50%Ipeak 208us @120VAC,100A@50%Ipeak 452us @277VAC. | ||||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |||
| Over Load | ≤120% , Hiccup mode, recovers automatically after fault condition is removed | ||||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling | ||||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |||
| Working Humidity | 20 - 95%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||||
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13(US) | |||
| Withstand voltage | I/P-O/P:1.88KVac;I/P-FG::1.88KVac;O/P-FG:1.88KVac | ||||
| Leakage current | ≦0.5mA | ||||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | ||||
| Lightening &Surge current | OD线对线: 2KV | OD线对线: 2KV , ED线对地:4KV | |||
| EMC Emission | FCC Part15 Subpart B | ||||
| Friency | Friency testing standard | IEEE1789 | |||
| Others | Net Weight | 795g(Aluminum IP67 Case) / 1225g(Junction Box) | |||

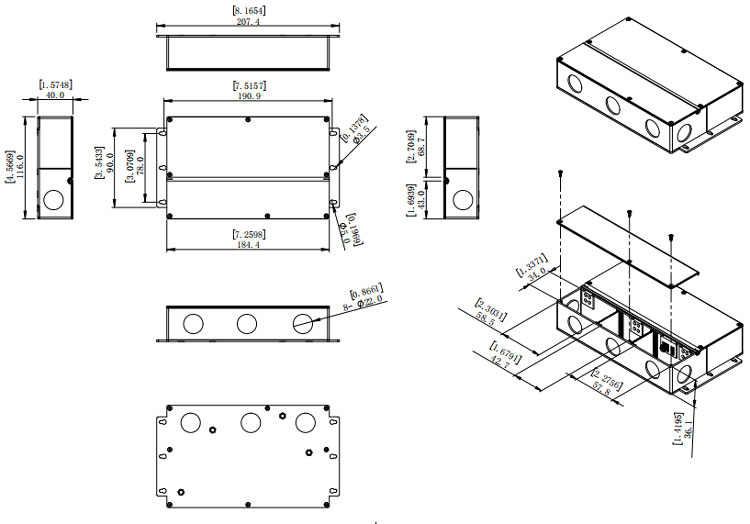

| Dimension | 188*61.4*25.5mm(Aluminum) / 188.0*95.4*42.7mm(junction Box) | ||||
| Packing | ?/pcs /CTN | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance and load regulation . | |||||
 |
 |
 |
 |
Mechanical Specification
1. Input 1015 0.824mm2 3*18AWG: Black cable (L), White cable (N), Green cable (G).
2. Output 1015 0.824mm2 2*18AWG: Red cable(V+) connect to positive(+), Black cable(V-) connect to negative(-).
3. Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading.
Related Products

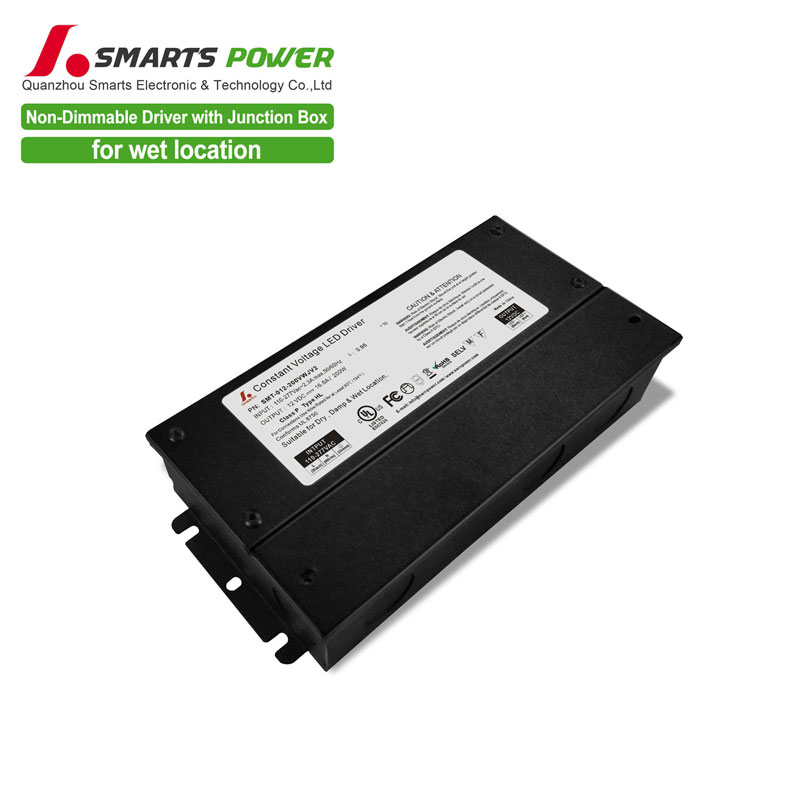

200W Non dimmable LED driver integrated with junction box. Universal input voltage range 100-277VAC. Stable and flicker-free, in compliance with global safety lighting regulations. With 7-year warranty
Mode：SMT-012-200VWJV2 intput voltage：100-277vac
Size : 260*103*46MM |
