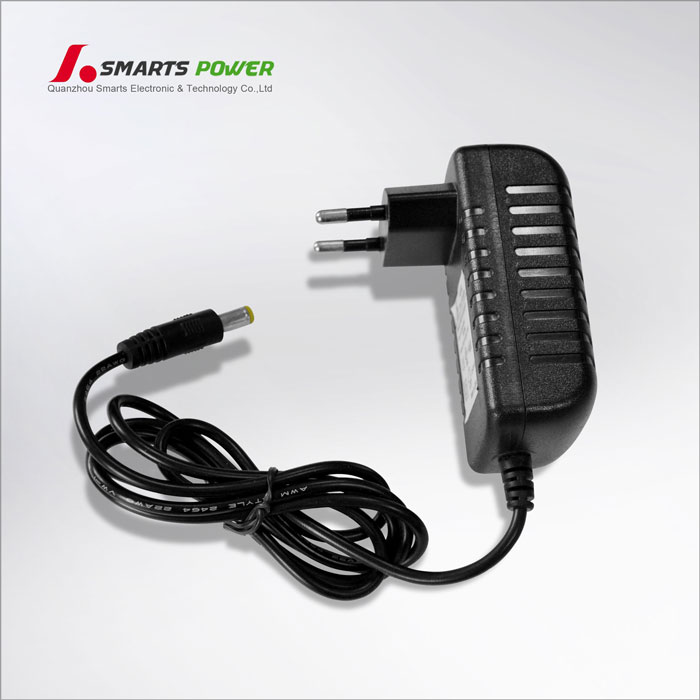

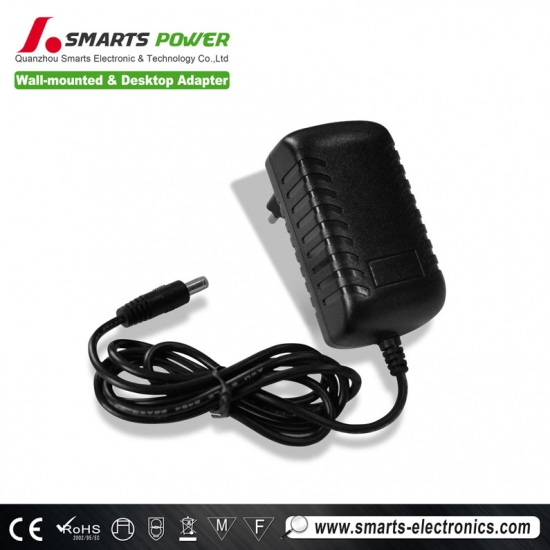

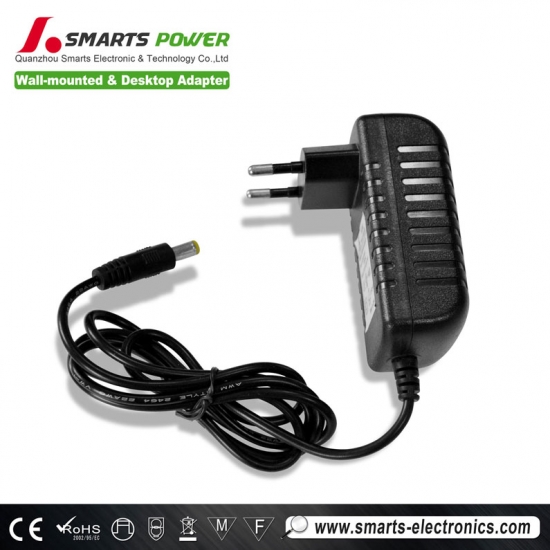

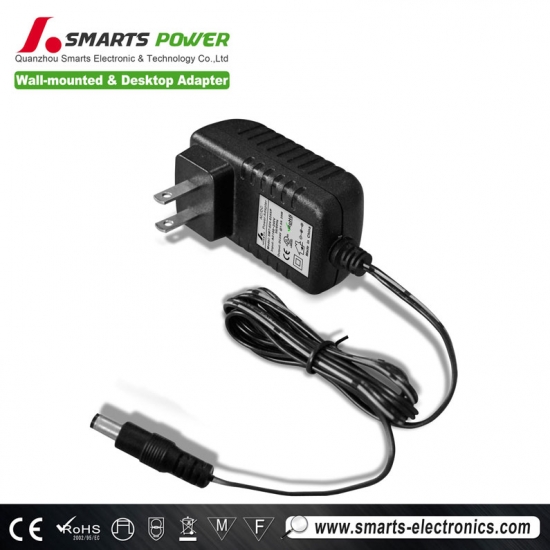

24v 1a 24w power supply adapter for led strips
Features:
-
Model:SMT-024-26VP
Input voltage:100-240vAC 47-63HZ
Output: 24VDC @1A 24w
working mode: constan voltage
Waterproof rate:aluminum IP20
Efficiency: 83%
Warranty: 18 month warranty
Certification: CE ROHS approval.
General Specification:
- AC inrush current (max.) ..............Cold start, <30A peak at 115VAC or <50A peak at 230VAC
- Overload protection......................Hiccup mode, auto-recovery
- Over voltage protection ...............Clamp by zener diode > 120%
- Withstand voltage.........................I/P-O/P: 3KVAC, 1minute
- Working temperature ................. -10°C~50°C @ 100% load, 50°C @ 70%
- EMC standards.......................... .. EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
Environment:
- Working Temperature : -40 ~ +60°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- ibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety:
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
What Service we can supply??
1. We are CE ETL FCC ROHS audited LED drivers/power supplies enterprise in China.
2. Alibaba assessed 2 years Gold Supplier and more than 10 years LED industrial experience.
it will guarantee your order 100% safe.
3. Price is negotiable if you have large quantity demand
4. 100% QC inspection Before Shipping
5. Best Quality & Best Service with Competitive price.
6. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.
decision for the shipping terms will be made according to your requirements
7. Samples will be ready within 7 working days.
8. We have our engineer team, if you have any question about your LED applications, let us know freely,
we will give you the best solution.
9. Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
10. OEM design & OEM packing welcom.
