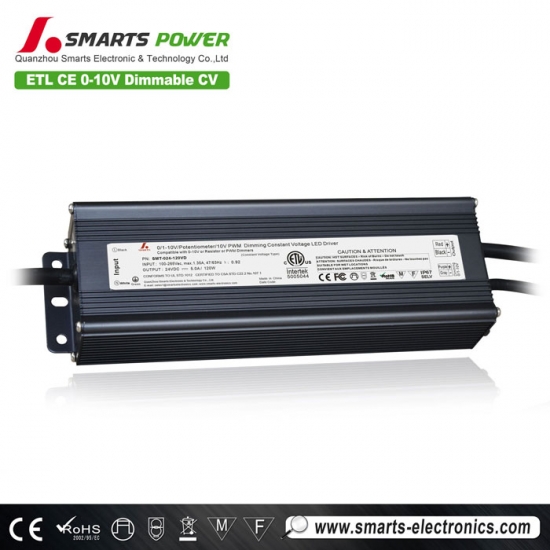

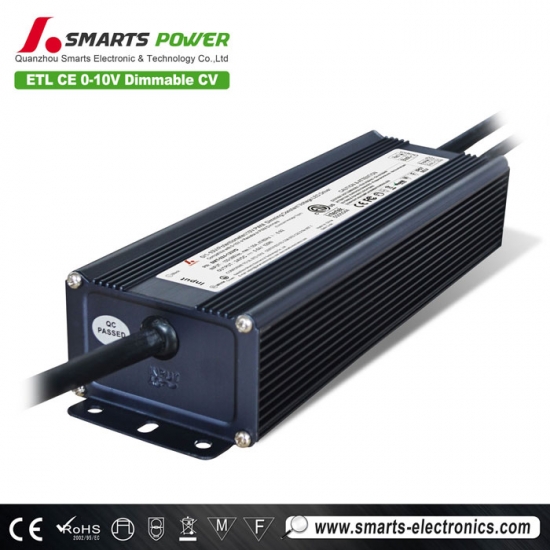

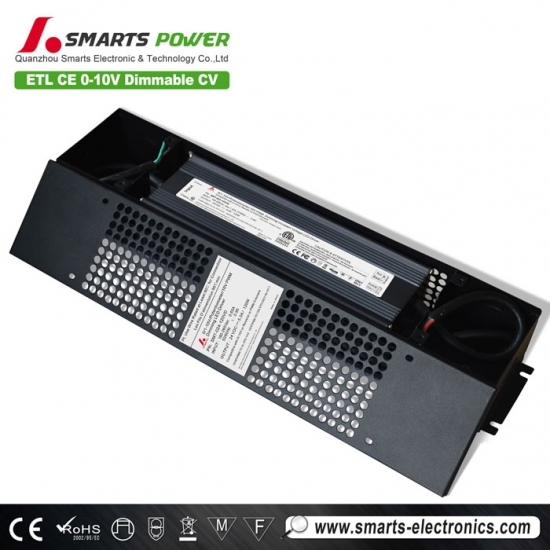

24v 120w constant voltage transformer 0-10v dimmable power supply
|
Features |
|
|
High efficiency,save energy ,protected environment. High stability and low ripple, increase light efficiency and decrease light attenuation.Meet to safety standard and EMC Assure LED stability long lift and light efficiency by constant voltage. Protections:Short circuit/Overload/Over temperature Cooling by free air convection 100% full load burn-in test. Suitable for LED lighting Brand electrotronic components. ROHS material. |
Product parameters
|
Model |
SMT-012-120VD |
SMT-024-120VD |
SMT-036-120VD |
|||
|
Output |
DC Voltage |
12V |
24V |
36V |
||
|
Voltage Accuracy |
±0.5V |
|||||
|
Rated current |
0-1.0A |
0-5.0A |
0-3.33A |
|||
|
Rated power |
120W |
120W |
120W |
|||
|
Ripple&noise Max. |
200mVp-p 350mVp-p 350mVp-p |
250mVp-p 400mVp-p |
290mVp-p
|
|||
|
Input |
Voltage Range |
100-130VAC，170-265VAC |
||||
|
Frequency Range |
47～63HZ |
|
||||
|
Power Factor ( Typ.） |
>0.90@110V ,220VAC |
>0.90@110V,220V |
||||
|
Full Load Efficiency（Typ.） |
>88%
|
>88%
|
||||
|
AC Current（Typ.） |
1.263A/120VAC 0.891A/170VAC 0.689A/220VAC 0.572A/265VAC |
|||||
|
Leakage current |
﹤0.25mA/110V,220VAC |
|
||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||
|
Over voltage |
≦315VAC |
|||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|||||
|
Environment |
Working TEMP. |
-40～+60℃ |
||||
|
Working Humidity |
20～95%RH,non-condensing |
|||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
|||||
|
Safety&EMC |
Safety standards |
EN61347-2-13. IP67 |
||||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
|||||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
|||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level （surge4KV） |
|||||
|
Others |
Weight |
1.32Kg |
||||
|
Size |
230*68.5*43mm（L*W*H） |
|||||
|
packing |
329*279*176mm/10pcs |
|||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||||
| Label |
 |
|||||
 |
 |
 |
 |
Specifications
- RippleI & Noise (max.) : 150mVp-p
- Voltage Tolerance : ±5%
- Line Regulation : ±1%
- Load Regulation : ±2%
- Case material: Aluminum housing
- Waterproof rate: IP67
- Produt cord:connecting terminal(IP20) / 18AWG*20CM
- 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Packaging & Shipping
| Packing | |||||||
| N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
| 24v 120w constant voltage transformer 0-10v dimmable power supply | |||||||
| 1300g/pcs | 15kg/ctn | 10pcs | 324*279*176mm | ||||
