Non-dimmable LED Driver

1400mA 56W 0-10V/PWM dimmable Constant Current LED driver

1400ma 56w 0-10v dimmable driver;1400ma constant current dimming led driver;1400mA 56W 0-10V/PWM led dimming driver
  • item no.:

    SMT-040-1400CD
  • brand:

    SMARTS
inquiry now
product details

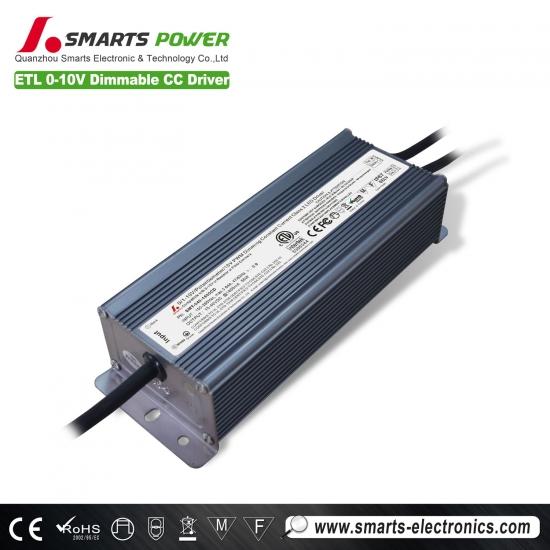

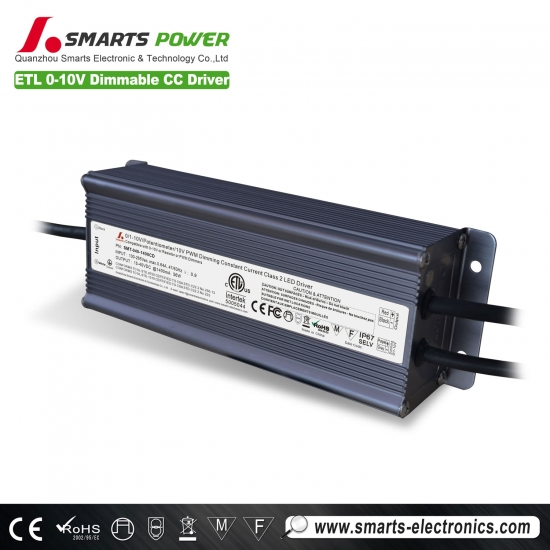

1400mA 56W 0-10V/PWM dimmable Constant Current LED driver


  Product Description

constant current led driver 1400ma 56w 0-10v dimmable led driver IP67

  Features

  • Constant current design with high accuracy.
  • International wide input voltage.
  • Wattage: 15w-200w
  • 8Hrs and 100% full load burn-in test.
  • High reliability designing solution
  • Cooling by free air convection
  • Suitable for LED lighting and moving sign applications
  • High efficiency,save energy ,protected environment
  • High stability and low ripple, increase light efficiency and decrease light attenuation
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant current
  • Passed high ,low temperature testing.
  • Integrity protection,over loading, over voltage over current


  Specifications


  • dimming type: 0-10v/PWM dimmable
  • warking mode: constant current
  • Efficiency > 88%
  • PFC> 0.92
  • cover material: aluminium housing
  • waterproof rate: IP67
  • unit weight: 1100g/pcs
  • product size: 200*68*45 mm
  • box size:324*298*176mm
  • pack qty: 10pcs/ctn
  • gross weight: 13.2kg/ctn
  • wire requirements:18AWG*20CM
  • 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)


  Environment


  • Working Temperature : -40 ~ +50°C
  • Working Humidity : 20 ~ 95% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 5G 15min./1cycle, period for 72min. each along X, Y, Z axes


  Safety


  • Safety Standards :   EN61347-1 EN61347-2-13. IP40
  • Withstand Voltage :   I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
  • Isolation Resistance :  I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
  • EMC Emission : Compliance to EN55015,EN61000-3-2 (>50%Load)


  Applications


  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

  Packaging & Shipping


Packing
N.W./pcs G.W/ctn Qty/ctn Carton Size(mm)
1400mA 56W 0-10V/PWM dimmable Constant Current LED driver
1100g/pcs 13.2kg/ctn 10pcs 324*298*176mm
