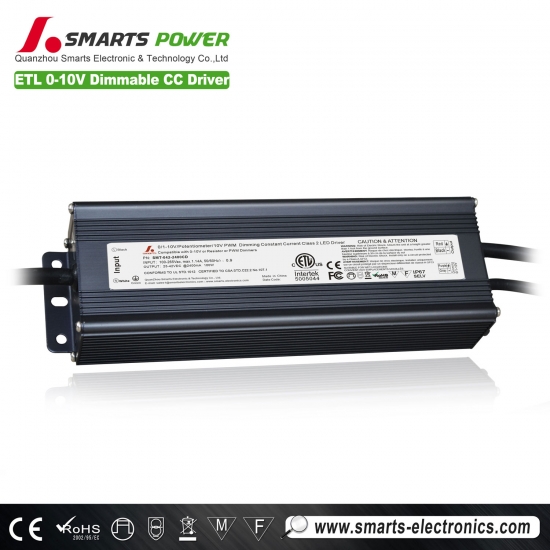

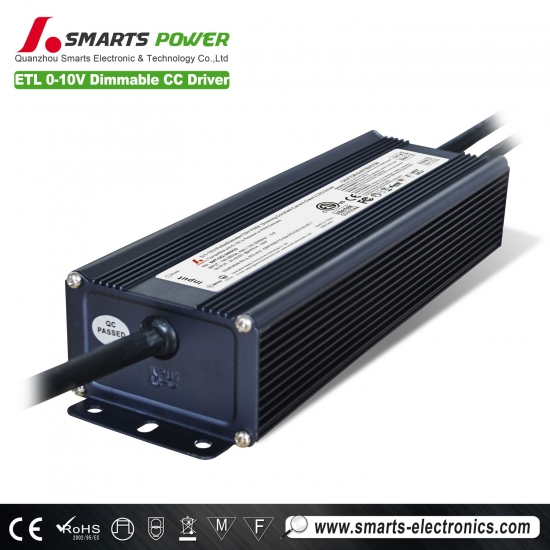

2400mA 100w 0-10v/PWM constant current dimmable led power supply
|
Model |
SMT-100-1050CD |
SMT-071-1400CD |
SMT-060-1750CD |
SMT-050-2000CD |
SMT-042-2400CD |
||
|
Output |
DC Current |
1050mA |
1400mA |
1750mA |
2000mA |
2400mA |
|
|
Current Accuracy |
±5% |
||||||
|
Voltage Range |
55-100V |
45-71V |
40-60V |
30-50V |
25-42V |
||
|
Rated power |
105W |
100W |
100W |
100W |
100W |
||
|
Input |
Voltage Range |
100～265VAC |
|||||
|
Frequency Range |
47～63HZ |
||||||
|
PF |
PF≧0.96/110V/PF≧0.98/220V |
||||||
|
Full Load Efficiency（Typ）） |
>87%(110,220V) |
>87%(110,220V) |
>87%(110,220V) |
>87%(110,220V) |
>87%(110,220V) |
||
|
AC Current (Typ.） |
1.08A/220VAC 0.504A/220VAC |
1.10A/110VAC 0.522A/220VAC |
1.12A/110VAC 0.537A/220VAC |
1.122A/110VAC 0.533A/220VAC |
1.20A/110VAC 0.560A/220VAC |
||
|
Leakage current |
﹤3.5mA/110VAC, ﹤3.8mA/220VAC |
||||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||
|
Over voltage |
≦280VAC |
||||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||||
|
Environmet |
Working TEMP. |
-40～+60℃ |
|||||
|
Working Humidity |
20～95%RH,non-condensing |
||||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
||||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP67 |
|||||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
||||||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
||||||
|
Others |
Weight |
1.2Kg/pcs |
|||||
|
Size |
230*68.5*43mm（L*W*H） |
||||||
|
packing |
329*279*176mm/10pcs /CTN inner box size:245*80*58mm |
||||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||||||
 |
 |
 |
 |
|
Model |
Input voltage(vAC) |
Working Frequency (Hz) |
Output voltage
(vDC) |
Output Current |
power (Watt) |
Working.
Temp |
Protection grade |
|
SMT-042-2400CD |
100-265V /170-375V |
47~63Hz |
25-42V |
2400mA |
100W |
-40~50°C |
IP67 |
Features
- Input range :100-265VAC / 170-375VAC
- Built-in PFC function
- Efficiency > 84% / PF>0.9
- Protections:Short circuit/over Voltage
- Fully isolated aluminum housing
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- 3 years warranty
- Lifespan:(MTBF)50,000 hours
Protection
- Short Circuit: Hiccup mode, recovers automatically after fault condition
- Over voltage: <270VAC 0r =270VAC
Environment parameter
- Working temperature: -40~+60℃
- Working humidity:20~90%RH,non-condensing
- Storage TEM.,Humidity: -40~+80℃,10~95%RH
- TEMP.coefficient: ±0.03%/℃(0~50℃)
- Vibration: 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety &EMC
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
- EMC EMISSION: Compliance toEN55015,EN61000-3-2 (> or=50%load)
- EMC IMMUNITY : Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)
Application
- Outdoor LED illuminating lights
- LED Neon, LED City Decoration
- LED Lighting Advertising, LED Display
- Safety Protection Apparatus, Telecommunications
- Networks, Vehicle Lights, Controller Panels
We offer a variety of wattages and types of Constant Current Led Power Supply for the increasing demand of LED lighting applications.
Packaging & Shipping
| 2400mA 100w 0-10v/PWM constant current dimmable led power supply | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 1300 g | 15 kg | 10 pcs | 414*308*174mm |
